Used American Process Systems Double Spiral Ribbon Blender, 20 Cubic Feet Capacity. Stainless steel construction. Approximate non-jacketed trough 60" x 24" x 27" deep. 2-1/2" diameter center shaft with approximate 24" diameter outer ribbon area, 1-1/4" wide x 1/2" thick blades. Approximately 14" diameter inner ribbon 2" wide x 3/16" thick. Driven by 5hp, 3/60/230/460 volt, 1680 rpm gear motor, 12.5:1 ratio. Clamp-on top cover. 6" Center bottom outlet, no cover, with 41-1/2" discharge height. (3) Side injection ports. Start / Stop panel. Mounted on (4) painted carbon steel legs with casters. 3/60/480 Volt.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Brand: American Process Systems
Type: Industrial Mixer (Ribbon Blender)
Capacity: 20 Cu. Ft. (~1,000 Liters)
Material: Stainless Steel
Motor: Eurodrive Motor (Approx. 5 HP)
Power: 480V, 3-Phase
Description:
This used American Process Systems double spiral ribbon blender offers a 20 cubic foot capacity and is built for efficient and thorough blending of powders, granules, and other dry bulk materials. The stainless steel construction ensures sanitary operation and resistance to corrosion, ideal for food, chemical, and pharmaceutical applications. The non-jacketed trough measures approx. 60" x 24" x 27" deep, housing a 2-1/2" diameter center shaft with a 24" diameter outer ribbon (1-1/4" wide x 1/2" thick blades) and 14" inner ribbon (2" wide x 3/16" thick). It's powered by a 5 HP, 1680 RPM gear motor with a 12.5:1 reduction ratio. The blender features a 6" center bottom outlet (no cover), clamp-on top cover, three side injection ports, and Start/Stop control panel, mounted on painted carbon steel legs with casters for easy mobility.
Specifications:
Capacity: 20 Cubic Feet
Construction: Stainless Steel (Product Contact Areas)
Trough Dimensions: Approx. 60" L x 24" W x 27" D

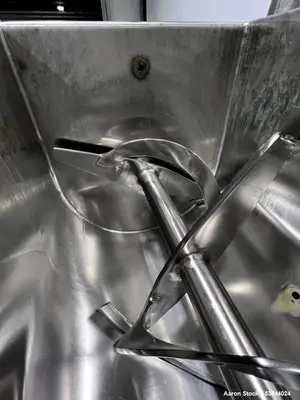

Center Shaft: 2-1/2" diameter
Outer Ribbon: Approx. 24" diameter; 1-1/4" W x 1/2" T
Inner Ribbon: Approx. 14" diameter; 2" W x 3/16" T

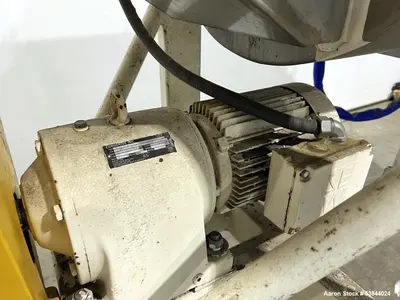

Motor: 5 HP, 1680 RPM, 3/60/230/460V (marked 3/60/480V), gearmotor with 12.5:1 reducer
Top Cover: Clamp-on (no lid over discharge)

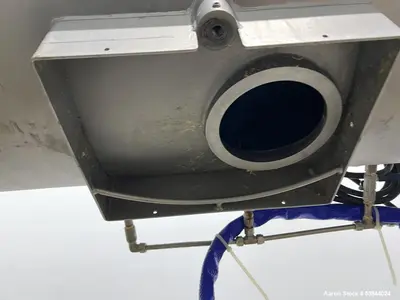

Outlet: 6" center bottom discharge; 41.5" discharge height

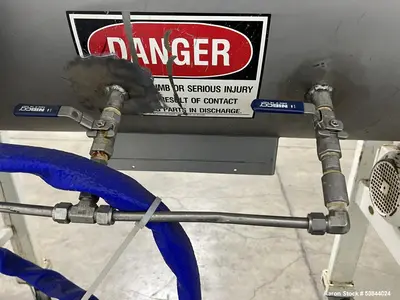

Ports: (3) side injection ports

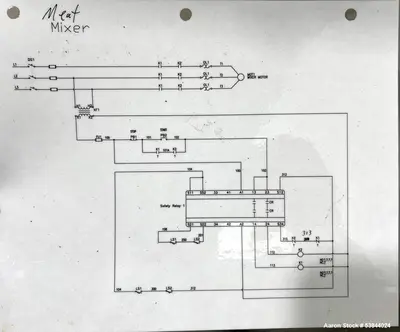

Controls: Start/Stop control panel
Frame: Painted carbon steel legs with casters
Applications:
Food & Beverage Processing – Mixing of dry ingredients, spice blends, flour, and baking mixes
Pharmaceutical & Biotech – Uniform blending of powders, supplements, and excipients
Chemical Processing – Mixing of dry chemicals, powders, and granulated materials
Plastics & Polymers – Blending of resins, colorants, and polymer additives
Nutritional & Supplements – Mixing of protein powders, vitamins, and dietary supplements
What Products Would This Be Used For?
Flour, sugar, and dry food ingredient blending
Powdered pharmaceuticals and dietary supplements
Chemical powders and industrial dry blends
Polymer resin and colorant mixing
Nutraceuticals and vitamin formulations
