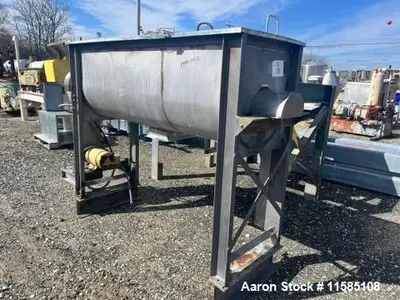

Used 20 Cubic Foot (approximately) Stainless Steel Ribbon Blender. 24" Wide X 72" Long. Outer ribbon 2" - interrupted - 3"x 7" paddles inner. Stainless Steel Lid. . 5 Hp motor 3 phase 60 cycle 208-230/460 volt 1750 rpm belt driven to gearbox with guard. Center bottom discharge with slide gate valve. Top mounted safety grate. Top mounted dump bin enclosure. Carbon steel legs provide approximately 38" clearance from outlet to ground.
Used Equipment Facts About This Machine
Manufacturer Information
Type: Ribbon Blender
Condition: Used / Excellent Condition
Construction: Stainless Steel (Blender Body), Carbon Steel (Legs)
Availability: Immediate
Description

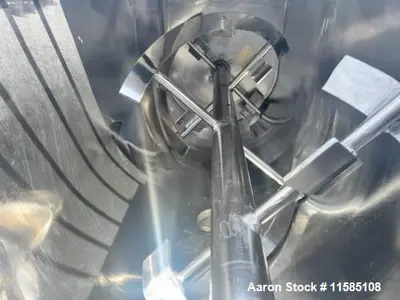

Used 20 Cubic Foot Stainless Steel Ribbon Blender, designed for efficient and uniform mixing of powders, granules, and bulk solids in food, chemical, pharmaceutical, and industrial applications. This horizontal blender features outer and inner ribbons, specifically:
Outer Ribbon: 2" interrupted
Inner Paddles: 3" x 7" paddles for thorough axial and radial blending.

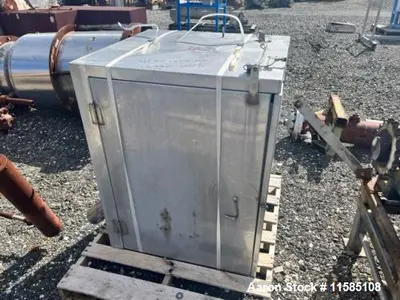

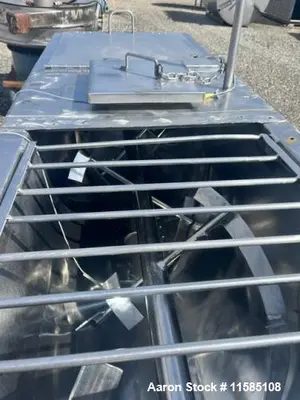

The stainless steel lid provides easy access for loading, with a top-mounted safety grate and dump bin enclosure to enhance operator safety and prevent contamination.

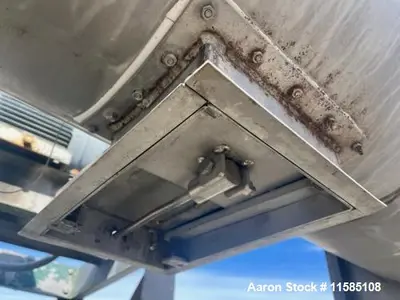

The blender measures 24 inches wide x 72 inches long, offering approximately 20 cubic feet of capacity. Product is discharged through a center bottom discharge with a slide gate valve, allowing for efficient material flow and easy transfer to downstream equipment.

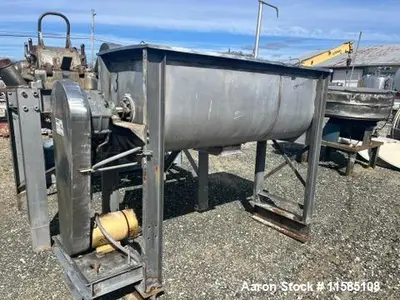

Powered by a 5 HP motor, 3 phase, 60 cycle, 208-230/460 volt, running at 1750 RPM and belt driven to a gearbox with guard for safe and smooth operation. The unit sits on carbon steel legs, providing 38" clearance from outlet to ground, ideal for integration into existing processing lines.
Specifications
Capacity: Approximately 20 Cubic Feet
Dimensions:
Width: 24 inches
Length: 72 inches
Outer Ribbon: 2" Interrupted
Inner Paddles: 3" x 7"
Construction:
Blender: Stainless Steel
Legs: Carbon Steel
Motor:
5 HP
3 Phase
60 Cycle
208-230/460 Volt
1750 RPM
Drive: Belt Driven to Gearbox with Guard
Discharge: Center Bottom with Slide Gate Valve
Lid: Stainless Steel Lid
Safety Features:
Top Mounted Safety Grate
Top Mounted Dump Bin Enclosure
Clearance: Approximately 38" from Outlet to Ground
Condition: Used / Excellent
Availability: In Stock
Applications
Powder and dry ingredient blending
Nutritional supplements and protein powder mixing
Food and spice blending
Pharmaceutical bulk powder mixing
Nutraceutical formulation
Plastic pellet and resin mixing
Chemical powders and granules blending
Fertilizer and agricultural products mixing
Cosmetics powders and dry product blending
Construction and dry cement product mixing
Products This Blender Can Be Used For
Protein powders
Nutraceutical and dietary supplements
Spices and seasoning blends
Pharmaceutical powders
Dry chemicals
Plastic resins and pellets
Fertilizer blends
Cosmetic powders
Cementitious materials
Agricultural feed and seed coatings
