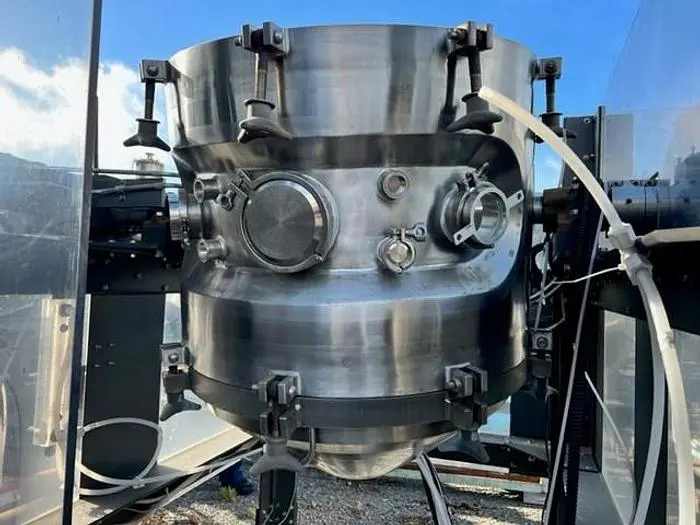

Used Littleford Model DVT-130 Mixer/Reactor, Stainless Steel. 3.1 Cubic feet working capacity (4.6 total). Jacketed chamber approximately 20" diameter x 26" long, bolt-on flat hinged jacketed cover. Jacket rated 75 psi at 32 to 320 degrees F. Internal rated 100 psi / Full vacuum at 32 to 320 degrees F. Side chopper motor, driven by 15hp, 3/60/230/460 volt, 3495 rpm (not installed). Includes control panel with voltage/phase indicators, gauges, piping. National Board#4298. Serial# 41779-4298. 3/60/480 Volt.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Littleford
Model: DVT-130
Type: Mixer/Reactor
Description:
This used Littleford Model DVT-130 Mixer/Reactor is a versatile industrial processing system, designed for high-intensity mixing, drying, and reaction applications in chemical, pharmaceutical, and food industries. Built for efficient processing of powders, granules, and pastes, this unit provides precise control over temperature, mixing speed, and reaction conditions.
The Littleford DVT-130 is engineered with a robust mixing chamber and high-torque agitation system, ensuring uniform blending, dispersion, and reaction kinetics. The reactor is capable of vacuum drying, liquid injection, and temperature-controlled processing, making it an excellent choice for thermal and chemical reaction applications.
Specifications:
Model: DVT-130
Type: Mixer/Reactor
Processing Capabilities: High-intensity mixing, vacuum drying, reaction control
Applications: Powder, granule, paste, and liquid-solid mixing
Temperature & Pressure Control: Designed for precise thermal and vacuum processing
Agitation System: High-torque mixing for uniform blending
Applications:
Chemical Processing – Reactor for chemical blending and drying
Pharmaceutical & Biotech – Mixing and reaction vessel for pharmaceutical formulations
Food & Beverage – High-intensity mixing for ingredient processing
Plastics & Polymers – Resin mixing and polymerization
Cosmetics & Personal Care – Emulsification and homogenization of products
Common Uses for This Mixer/Reactor:
Chemical synthesis and reaction control
Pharmaceutical formulation and active ingredient mixing
High-shear mixing for food and beverage ingredients
Vacuum drying and thermal processing
Polymer and resin formulation
