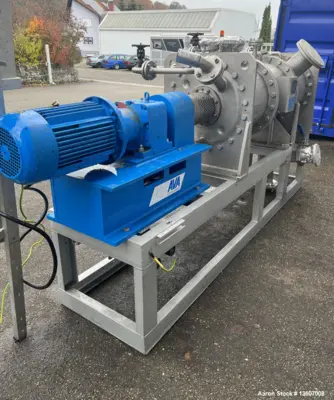

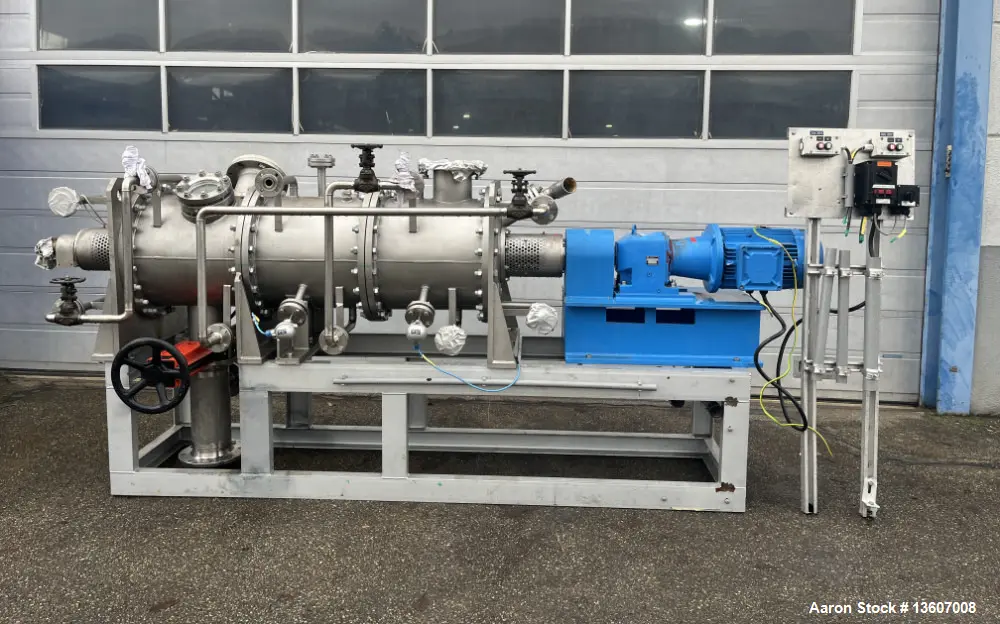

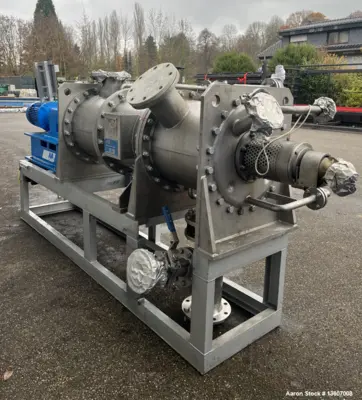

Used AVA-Holland Merten GmbH Rotary Vacuum Paddle Dryer, Type HTK 200. 316TI (1.4571) on product contact parts. Total capacity 8.3 cu. ft (235 liter), Working capacity 156.66 cu. ft (156.66 liter). Double jacketed. Inside operating temperature 266F (130C), Design temperature 392F (200C). Internal rated for full vacuum and 45 PSI (-1/3 bar). Jacket pressure 90 PSI (6 bar). Heated shaft speed of 107 RPM driven via a gearbox by a 5.5 Kw EExdellCT4 motor. Mechanical seal. Maier heater for the shaft heating. Frame mounted. New year 2002. Serial number # 5499/2. Overall dimensions: 111" L x 36" W x 49" H (3400 mm L x 1100 mm W x 1500 mm H). Weight approx. 1.6 tonnes. Reported in good condition. Previously used in a pilot plant for solid phase modification of wood.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: AVA-Holland Merten GmbH
Model: HTK 200
Condition: Used (Reported in Good Condition)
Serial Number: 5499/2
Year Built: 2002
Manufacturing Data:
Dryer Vessel Specifications:
Type: Rotary Vacuum Paddle Dryer
Material (Product Contact Parts): 316Ti (1.4571) Stainless Steel
Total Capacity: 8.3 cu. ft. (235 liters)
Working Capacity: 5.5 cu. ft. (156.66 liters)
Double Jacketed: Yes
Pressure & Temperature Ratings:
Internal Pressure: Full Vacuum & 45 PSI (-1 to 3 Bar)
Jacket Pressure: 90 PSI (6 Bar)
Operating Temperature: 266°F (130°C)
Design Temperature: 392°F (200°C)
Agitator & Heating System:
Agitator Type: Heated Shaft with Paddles
Speed: 107 RPM
Motor: 5.5 kW EExdellCT4 Explosion-Proof Motor
Drive System: Gearbox-Driven
Heating System: Maier Heater for Shaft Heating
Mechanical Seal: Included
Frame & Dimensions:
Frame Mounted: Yes
Overall Dimensions:
Length: 111 inches (3400 mm)
Width: 36 inches (1100 mm)
Height: 49 inches (1500 mm)
Weight: Approx. 1.6 Tonnes
Previous Use:
Pilot Plant for Solid Phase Modification of Wood
Description:
The Used AVA-Holland Merten HTK 200 Rotary Vacuum Paddle Dryer is a high-performance drying system, designed for low-temperature, high-efficiency vacuum drying applications. Constructed with 316Ti stainless steel contact surfaces, this dryer ensures corrosion resistance and durability in chemical, pharmaceutical, and industrial material processing.
With a total capacity of 8.3 cubic feet (235 liters) and a working capacity of 5.5 cubic feet (156.66 liters), this double-jacketed vacuum dryer provides efficient heat transfer and uniform drying. The heated agitator shaft (driven at 107 RPM via a gearbox and a 5.5 kW explosion-proof motor) ensures continuous mixing, improving drying efficiency and preventing material build-up.
The unit is rated for full vacuum and 45 PSI (-1/3 bar) internally, while the jacket operates at 90 PSI (6 bar), making it suitable for vacuum drying, solvent recovery, and temperature-sensitive materials.
Equipped with a Maier heating system for the shaft, a mechanical seal, and a frame-mounted design, this unit is a turnkey solution for vacuum drying in pharmaceutical, chemical, and food production industries.
Specifications:
Capacity: 8.3 cu. ft. (235 liters) total, 5.5 cu. ft. (156.66 liters) working
Material: 316Ti (1.4571) Stainless Steel (Product Contact Parts)
Jacket: Double Jacketed
Pressure Ratings:
Internal: Full Vacuum & 45 PSI (-1 to 3 Bar)
Jacket: 90 PSI (6 Bar)
Temperature Ratings:
Operating: 266°F (130°C)
Design: 392°F (200°C)
Agitator & Drive System:
Heated Shaft with Paddles
Speed: 107 RPM
Motor: 5.5 kW EExdellCT4 Explosion-Proof Motor
Gearbox-Driven
Mechanical Seal Included
Heating System: Maier Heater for Shaft Heating
Frame Mounted: Yes
Overall Dimensions: 111" L x 36" W x 49" H (3400 mm x 1100 mm x 1500 mm)
Weight: 1.6 Tonnes
Condition: Used, Good Working Condition
Applications:
Pharmaceutical Powder & API Drying
Chemical Processing & Solvent Recovery
Food & Nutraceutical Ingredient Drying
Heat-Sensitive Material Drying Under Vacuum
Battery & Energy Storage Material Processing
Polymers, Resins, and Specialty Chemical Drying
Biotech and Laboratory Research Drying
Solid Phase Modification of Materials
What Products Would This Be Used For?
Active Pharmaceutical Ingredients (APIs) & Fine Chemicals
Solvent-Based & Heat-Sensitive Chemical Drying
Food Additives & Nutraceutical Powders
Battery Materials & Energy Storage Components
Biotech & Laboratory Research Substances
Polymer Resins, Adhesives, & Coatings
Industrial Powders & High-Purity Materials
Specialty Graphite & Solid Phase Modified Materials
