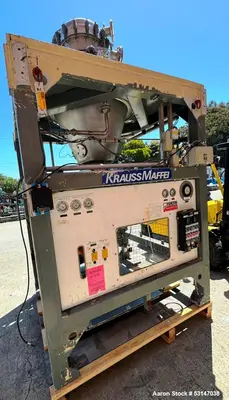

Used Krauss Maffei Conical Dryer, Model TMD 0.25/160 "Titus-Mixer-Dryer," constructed from stainless steel 1.4571 (316Ti). This unit features a working pressure of 3 Bar (43.5 PSI) (vacuum possible), jacket working pressure of 6 Bar (87 PSI), and a capacity of 380 Liters (useful capacity 250 Liters). The cone measures 1016mm (40") in diameter and 1066mm (42") in height, with a dished top and a jacketed mixing screw (6 Liters). Powered by a 4.0 kW + 1.5 kW motor, 380 Volt (explosion-proof), and a jacket volume of 96 Liters. It operates at a maximum temperature of 165C and has a 150mm (6") bottom outlet. Manufactured in 1995, the dryer is mounted on a frame, includes switchgear, and is ATEX compatible. Dimensions are 2.0m x 2.0m (6.6' x 6.6') with a total height of 3.5m (11.5'), weighing 2650 KG. Serial Number 7005/742904/3.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Krauss Maffei
Model: TMD 0.25/160 "Titus-Mixer-Dryer"
Year of Manufacture: 1995
Condition: Used
Material Construction: Stainless Steel 1.4571 (316Ti)
Certification: ATEX Compatible
Manufacturing Data:
Capacity: 380 Liters (useful capacity: 250 Liters)

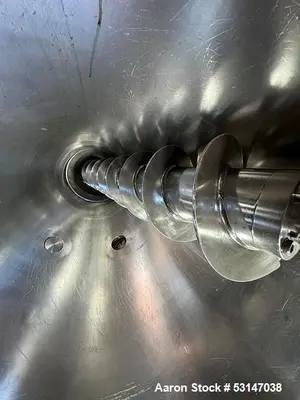

Cone Dimensions: 1016mm (40") diameter x 1066mm (42") height
Working Pressure: 3 Bar (43.5 PSI) (vacuum possible)
Jacket Pressure: 6 Bar (87 PSI)
Jacket Volume: 96 Liters
Mixing Screw Jacket Volume: 6 Liters
Outlet Size: 150mm (6") bottom outlet
Max Operating Temperature: 165°C

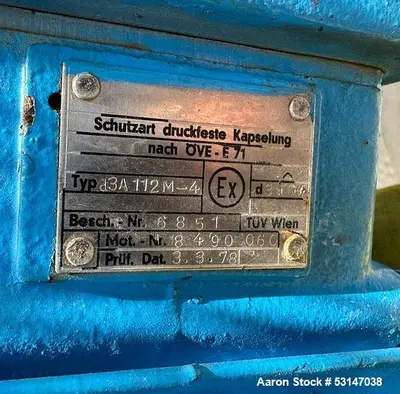

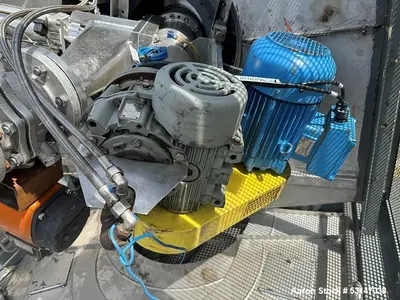

Drive System: 4.0 kW + 1.5 kW motor, 380 Volt (explosion-proof)
Frame-Mounted: Yes, includes switchgear
Physical Dimensions & Weight:
Footprint: 2.0m x 2.0m (6.6' x 6.6')
Height: 3.5m (11.5')
Weight: 2650 KG
Serial Number: 7005/742904/3
Description:
The Krauss Maffei TMD 0.25/160 Conical Dryer is a high-performance vacuum drying system designed for chemical, pharmaceutical, and food processing applications requiring precise drying, mixing, and granulation. Built from 316Ti stainless steel (1.4571) for superior corrosion resistance, this ATEX-compatible unit is ideal for hazardous or explosion-prone environments.
Featuring a 380L total capacity (250L useful), a jacketed mixing screw (6L volume), and a 6-bar rated jacket (87 PSI), this dryer ensures efficient heat transfer and uniform drying. The powerful 4.0 kW + 1.5 kW explosion-proof motor allows for reliable operation under vacuum conditions, making it suitable for heat-sensitive materials.
Specifications:
Capacity: 380L (250L useful)
Material: Stainless Steel 1.4571 (316Ti)
Vacuum Capability: Yes
Operating Pressure: 3 Bar (43.5 PSI)
Jacket Pressure: 6 Bar (87 PSI)
Max Operating Temperature: 165°C
Cone Size: 1016mm (40") diameter x 1066mm (42") height
Outlet Size: 150mm (6") bottom outlet
Mixing Screw Jacket Volume: 6 Liters
Jacket Volume: 96 Liters
Drive System: 4.0 kW + 1.5 kW motor, explosion-proof (380V)
Frame: Mounted, includes switchgear
Certification: ATEX compliant
Footprint: 2.0m x 2.0m (6.6' x 6.6')
Height: 3.5m (11.5')
Weight: 2650 KG
Applications:
The Krauss Maffei TMD 0.25/160 Conical Dryer is designed for precision drying and mixing applications in industries requiring vacuum or explosion-proof drying systems, including:
Pharmaceutical Industry – Drying active pharmaceutical ingredients (APIs)
Chemical Processing – Drying fine chemicals, catalysts, and polymers
Food Industry – Dehydrating powders, flavorings, and food additives
Biotechnology – Drying enzymes, bio-based materials
Metal Powders & Ceramics – Fine powder drying for metallurgy applications
What Products Would This Be Used For?
Active pharmaceutical ingredients (APIs)
Specialty chemicals and catalysts
Food-grade powders and flavorings
Polymers and resins
Enzyme and bio-based materials
Metal powders and ceramic materials
