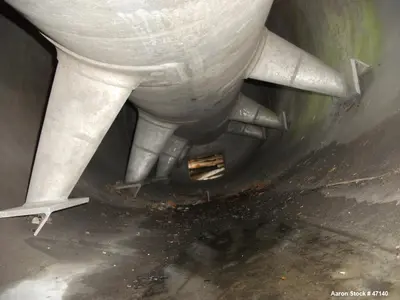

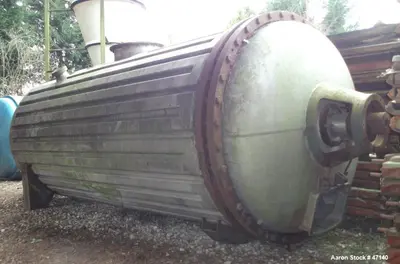

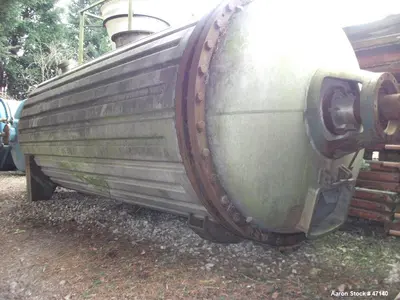

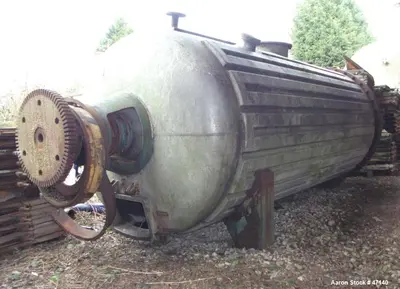

Used Buss Paddle Rotary Vacuum Dryer. (6000 liter) 211 cubic foot working capacity. 316L stainless steel contact parts. 1600mm (62.992") diameter x 4100 mm (161.417") long, dished ends. Rated internal vacuum jacket 2 bar. Openings: top 18", (2) 4-3/4" sightglass; side (2) 11" x 15" inspection doors. Center plug valve outlet 9-1/2". Bare shafted. Driven By 11 Kw 6 RPM Fixed Gear Motor Drive.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Manufacturer: Buss
Model: Paddle Rotary Vacuum Dryer
Condition: Used
Material Construction: 316L Stainless Steel
Capacity: 6000 liters (211 cubic feet)
Manufacturing Data:
Drum Dimensions: 1600mm (62.99") diameter x 4100mm (161.42") long
Design: Dished ends for enhanced durability
Vacuum Jacket Rating: 2 bar
Material Contact Parts: 316L stainless steel
Openings:
Top: 18”
Sightglass: (2) 4-3/4”
Side Inspection Doors: (2) 11” x 15”
Outlet: 9-1/2” center plug valve
Drive System: 11 kW, 6 RPM fixed gear motor drive
Configuration: Bare shafted
Description:
The Buss Paddle Rotary Vacuum Dryer (6000L) is an industrial-grade drying system designed for efficient vacuum drying of heat-sensitive and high-purity materials. Constructed with 316L stainless steel contact parts, it ensures corrosion resistance and compliance with strict sanitary standards. The rotary vacuum technology enables uniform heat distribution, preventing product degradation while maintaining optimal drying efficiency.
The large-capacity (211 cubic feet) vacuum dryer features a 2-bar rated internal vacuum jacket, multiple access points for inspection, and a 9-1/2” center plug valve outlet for controlled material discharge. Powered by an 11 kW, 6 RPM fixed gear motor drive, it provides consistent mixing and drying performance for various industrial applications.
Specifications:
Capacity: 6000 liters / 211 cubic feet
Construction Material: 316L stainless steel
Drum Size: 1600mm (62.99") diameter x 4100mm (161.42") long
Vacuum Jacket Rating: 2 bar
Opening Ports:
Top: 18”
Sightglass: (2) 4-3/4”
Side Inspection Doors: (2) 11” x 15”
Outlet: 9-1/2” center plug valve
Drive System: 11 kW, 6 RPM fixed gear motor
Configuration: Bare shafted
Applications:
The Buss Paddle Rotary Vacuum Dryer is ideal for industrial drying applications in multiple sectors, including:
Pharmaceuticals – Drying active pharmaceutical ingredients (APIs)
Food Processing – Dehydrating food additives, flavorings, and proteins
Chemical Industry – Drying specialty chemicals, catalysts, and powders
Biotechnology – Processing enzymes and bio-based compounds
Metallurgy & Minerals – Drying metal powders and fine minerals
Plastics & Polymers – Moisture removal from polymer resins
What Products Would This Be Used For?
Pharmaceuticals and active ingredients
Food powders and protein concentrates
Chemical powders and catalysts
Enzymes and bio-based materials
Metal powders and fine minerals
Polymer resins and specialty compounds
