USED PARKINSON 845

Overview
Manufacturer:
PARKINSON
Model:
845
Stock #:
53833001
Status:
For Sale
Description

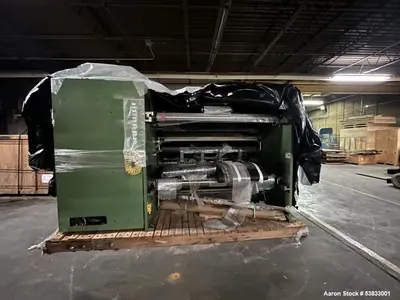

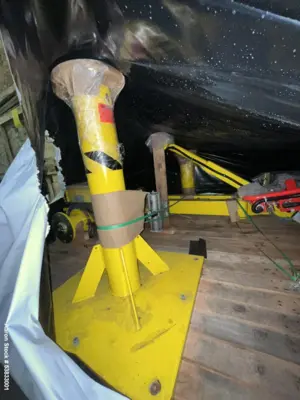

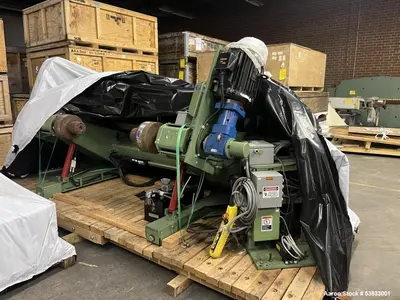

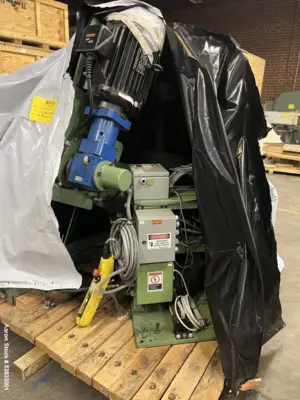

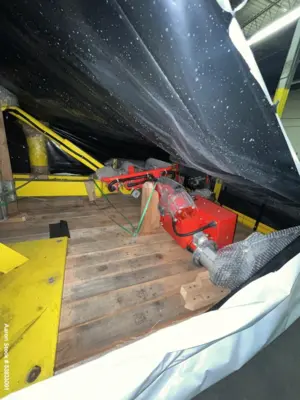

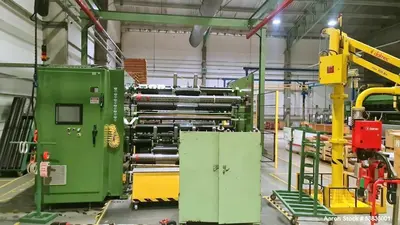

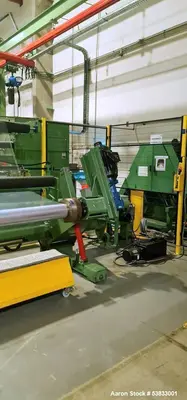

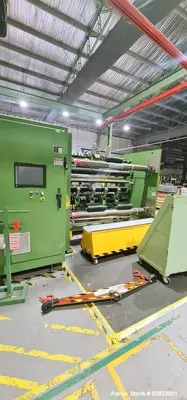

Used Parkinson Duplex Slitter/Rewind, Model 845. 3.94"-63" slit width ranges; 48" unwind diameter; 38" min. core; 72" max. core; 5000 lbs. max roll weight; 0.5-2.5 pounds/linear inch tension control. Winding station: 40" max. winding diameter; 72" shafts max. web; 0.5-2.5 pounds/linear inch tension. Shaftless floor-lift unwind; Allen Bradley PLC; Red Lion 15" touch screen monitor; Yaskawa A100 drives. 20 HP unwinder and winder motors; 15 HP main roll motor. 3/50/400VAC. Built 2017. Previously used for 35-70 micron PVC and PETG heat shrinkable film. With Dalmec shaft remover.

Specifications

Used Equipment Facts About This Machine
Description
The Parkinson Model 845 Duplex Slitter/Rewind is a high-precision industrial slitting and rewinding system, designed for processing flexible films, foils, and laminates. This model provides versatile slit width capabilities from 3.94” to 63”, making it ideal for a wide range of materials, including PVC and PETG heat shrinkable film.

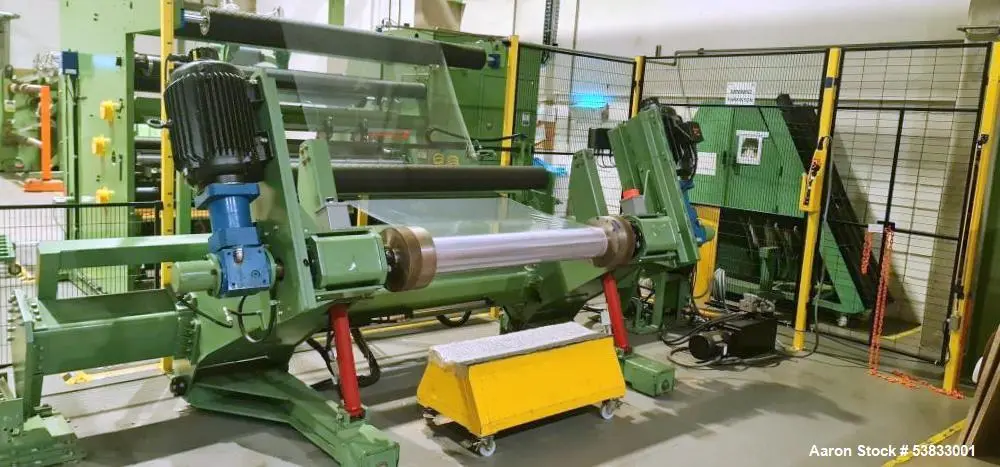

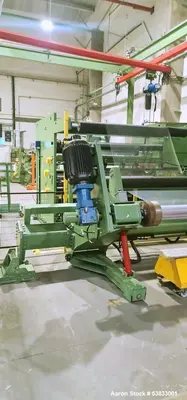

Equipped with a shaftless floor-lift unwind system, this slitter/rewinder handles 5000 lbs. max roll weight with an unwind diameter of up to 48 inches. The tension control ranges from 0.5-2.5 pounds per linear inch, ensuring smooth and precise material handling.
The winding station accommodates 40" max winding diameter and 72" max web width, with a minimum core size of 38” and max core size of 72”. Featuring Allen Bradley PLC controls, a Red Lion 15” touchscreen monitor, and Yaskawa A100 drives, the system offers advanced automation and ease of operation.

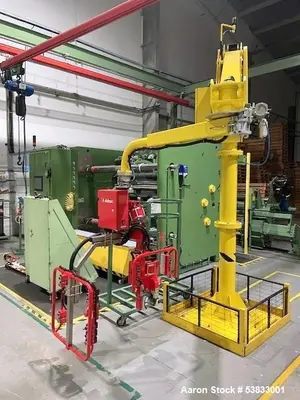

Powered by 20 HP unwinder and winder motors, along with a 15 HP main roll motor, this system is engineered for efficiency and reliability. It operates on 3-phase, 50Hz, 400VAC. Additionally, a Dalmec shaft remover is included for safe and efficient handling of heavy rolls.
Specifications

Slit Width Range: 3.94” - 63”

Unwind Diameter: 48” max

Core Size: 38” min. – 72” max.

Max Roll Weight: 5000 lbs.

Tension Control: 0.5-2.5 pounds per linear inch

Winding Station:

Max Winding Diameter: 40”

Max Web Width: 72”

Tension Range: 0.5-2.5 pounds per linear inch

Drive System: Yaskawa A100

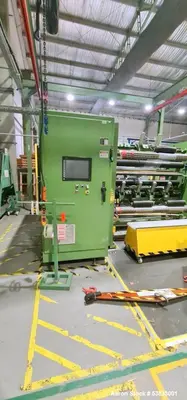

Control System: Allen Bradley PLC, Red Lion 15” touchscreen monitor

Motors:

Unwinder & Winder Motors: 20 HP

Main Roll Motor: 15 HP

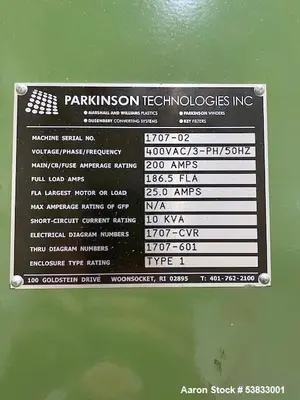

Electrical Requirements: 3/50/400VAC

Previous Application: 35-70 micron PVC and PETG heat shrinkable film

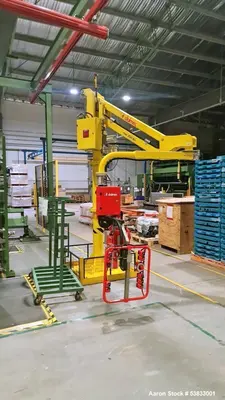

Additional Equipment: Dalmec Shaft Remover

Condition: Used

Applications

Film & Flexible Packaging Industry: Slitting and rewinding of shrink films, laminates, and foils

Label & Adhesive Industries: Precision slitting of label stock and pressure-sensitive materials

Plastic & Polymer Film Processing: PET, PVC, BOPP, PE films

Paper & Converting Industry: Slitting paper-based and specialty materials

Industrial Manufacturing: Custom slitting for various industrial applications

Compatible Products & Uses

PVC and PETG Heat Shrinkable Film
Flexible Packaging Films and Laminates
Adhesive Label Rolls
Printed and Specialty Films
Industrial-Grade Plastic and Foil Materials
PRODUCT DETAILS


Parkinson duplex slitter rewinder
Used slitting and rewinding machine
Industrial film slitter for sale
Flexible packaging slitter rewinder
Allen Bradley PLC slitter rewinder
Yaskawa drive slitting machine
High-speed duplex slitter rewinder
Used Parkinson Model 845 duplex slitter rewinder
Industrial slitter rewinder for PVC and PETG films
High-precision film slitting and rewinding machine
Automated slitting machine with PLC controls
Used duplex slitter for flexible packaging film
Used Parkinson Model 845 duplex slitter rewinder for PVC and PETG shrink films
High-speed slitting and rewinding system with Allen Bradley PLC and Yaskawa A100 drives
Industrial film slitter rewinder with 5000 lbs roll weight capacity and 72-inch web width
Best duplex slitter rewinder for flexible packaging and adhesive label processing
Used duplex slitter with Red Lion touchscreen monitor and shaftless floor-lift unwind
