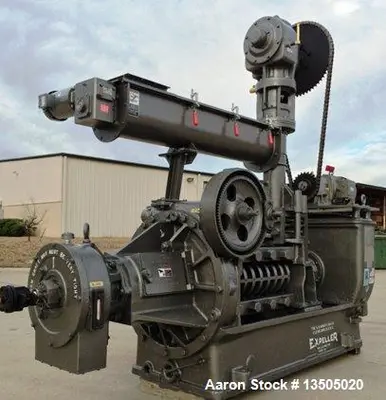

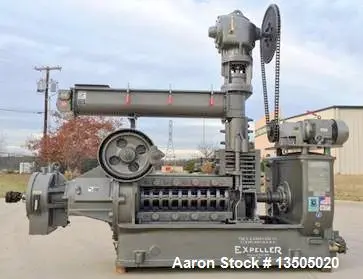

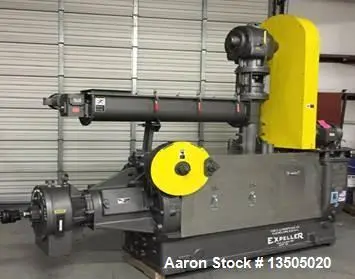

USED ANDERSON 33" DUO EXPELLER PRESS

Overview
Manufacturer:
ANDERSON
Stock #:
13505020
Status:
For Sale
Description

Used Anderson Duo Expeller Press. 9"x 5 variable speed screw feeder with 2HP motor and drive. 15HP vertical gear head motor with roller chain drive and safety guard. Vertical discharge head with segmented worm shaft and breaker bolts. Heavy duty horizontal main gear case with new herringbone precision gear, integral pinion plus helical gear & pinion. 50 HP direct connected main motor @ 1200 RPM. Manually operated choke adjustment. Extra heavy duty thrust bearing for thrust unit T-53. Stainless steel splash guards with inspections doors. Includes new: bearings and seals; Integral water-cooled main worm shaft; 33" long drainage cage with diamond bars, keeper knife bars, pressure bars, spacers, and shims; 3" special oil conveyor with drive and 3/4HP motor. Unit sandblasted, primed and painted. 3/60/460V. Motor Starters and Control Panel are not included.

Specifications

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Anderson

Model: Duo Expeller Press

Condition: Used, Refurbished (Sandblasted, Primed, and Painted)

Voltage: 3/60/460V

Motor Starters & Control Panel: Not Included

Description
This Used Anderson Duo Expeller Press is a heavy-duty mechanical oil press designed for efficient oil extraction from oilseeds and other materials. The system features a 9" x 5" variable speed screw feeder powered by a 2 HP motor and drive, providing consistent feed rates to optimize pressing efficiency. The main press drive is powered by a 50 HP direct connected motor running at 1200 RPM, with a 15 HP vertical gear head motor delivering reliable torque transmission through a roller chain drive with safety guard.
Key features include a segmented worm shaft with breaker bolts, manually operated choke adjustment, and a water-cooled main worm shaft. The extra heavy-duty thrust bearing (T-53) and new herringbone precision gear within the horizontal main gear case ensure durability and long-lasting performance. The system has been thoroughly refurbished, including new bearings and seals, and comes complete with stainless steel splash guards with inspection doors for easy maintenance.
Also included is a 33" long drainage cage with diamond bars, keeper knife bars, pressure bars, spacers, and shims, along with a 3" special oil conveyor, driven by a 3/4 HP motor, for efficient oil transport post-extraction.

Key Specifications

Feeder: 9" x 5" Variable Speed Screw Feeder with 2 HP Motor and Drive

Vertical Gear Head Motor: 15 HP with Roller Chain Drive and Safety Guard

Main Motor: 50 HP Direct Connected @ 1200 RPM

Discharge Head: Vertical with Segmented Worm Shaft and Breaker Bolts

Main Gear Case: Heavy Duty Horizontal with New Herringbone Precision Gear, Integral Pinion, Helical Gear & Pinion

Choke Adjustment: Manual

Thrust Bearing: Extra Heavy Duty for T-53 Thrust Unit

Cooling: Integral Water-Cooled Main Worm Shaft

Drainage Cage: 33" Long with Diamond Bars, Keeper Knife Bars, Pressure Bars, Spacers, and Shims

Oil Conveyor: 3" with Drive and 3/4 HP Motor

Splash Guards: Stainless Steel with Inspection Doors

Refurbishment: Sandblasted, Primed, Painted, New Bearings, and Seals

Applications

Oilseed Processing

Soybeans
Canola/Rapeseed
Sunflower Seeds
Cottonseed
Peanuts

Vegetable Oil Extraction
Mechanical Oil Expelling in Feed and Biofuel Industries
Press Cake Production for Animal Feed
Pilot or Small-Scale Commercial Oil Extraction Facilities

Industries Served

Edible Oil Processing Plants
Biodiesel & Renewable Energy
Animal Feed Manufacturers
Agricultural Cooperatives
Food & Beverage Ingredient Suppliers
PRODUCT DETAILS


Oil press, expeller press, Anderson press

: Used Anderson Duo Expeller Press, oilseed extraction machine, heavy-duty mechanical oil press
 Used Anderson Duo Expeller Press with 50 HP motor, water-cooled worm shaft and stainless steel splash guards, refurbished mechanical oil press for seed and vegetable oil extraction with drainage cage and conveyor
