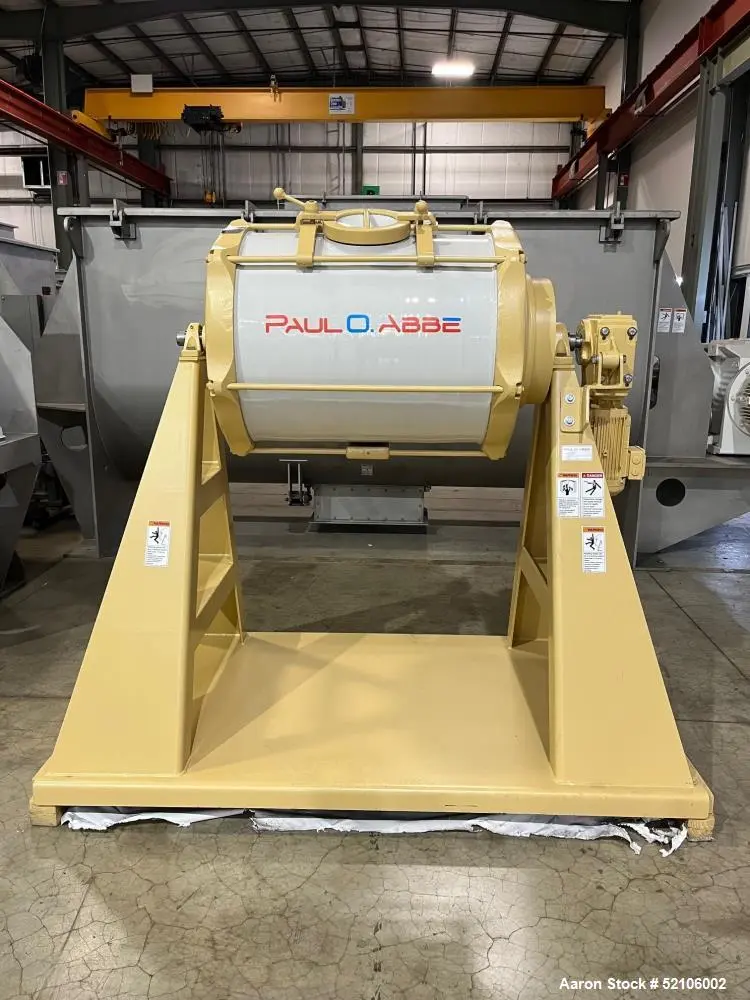

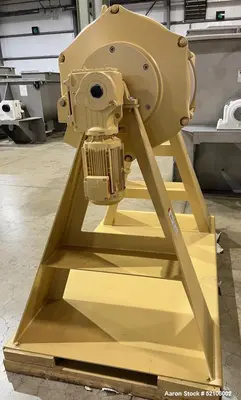

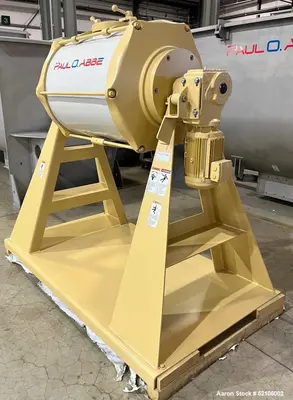

Unused- Paul O Abbe One Piece Ceramic Ball Mill, Model OPCM-67. 250 liter, 19% alumina content. Approximate 24.8" diameter x 31.9" long. 6.7" inlet/outlet, 39" discharge height from the top of the base plate to hatch. Driven by a 3 hp direct shaft mounted motor. 34 rpm maximum vessel rotation. Mounted on painted carbon steel stands on a painted carbon steel base. Serial# 196635OPCM.
Used Equipment Facts About This Machine
Manufacturer Info
Manufacturer: Paul O Abbe
Model: OPCM-67

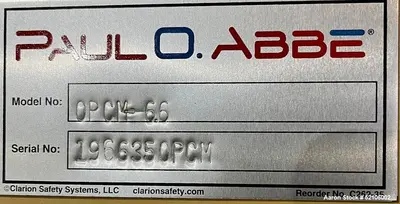

Serial #: 196635OPCM
Condition: Unused
Description
The Unused Paul O Abbe OPCM-67 One Piece Ceramic Ball Mill is a high-quality milling system designed for precision grinding, mixing, and dispersion of materials in industrial, pharmaceutical, and chemical applications. Featuring a 250-liter capacity and 19% alumina content, this ceramic-lined mill ensures high durability and minimal contamination, making it ideal for fine grinding of powders, ceramics, and specialty materials.
The vessel measures 24.8" in diameter x 31.9" long and operates at a maximum rotation speed of 34 RPM. It is driven by a 3 HP direct shaft-mounted motor, ensuring consistent performance and efficiency. The 6.7" inlet/outlet allows for controlled material flow, while the 39" discharge height (from the top of the base plate to the hatch) facilitates easy material handling.
Mounted on a painted carbon steel stand and base, this system is designed for stable operation in high-demand processing environments.
Specifications
Model: OPCM-67
Capacity: 250 Liters
Lining Material: 19% Alumina Ceramic
Vessel Dimensions:
Diameter: 24.8"
Length: 31.9"
Motor: 3 HP direct shaft-mounted motor
Rotation Speed: 34 RPM maximum
Inlet/Outlet Diameter: 6.7"
Discharge Height: 39" (from top of base plate to hatch)
Mounting: Painted carbon steel stands and base
Applications
This Paul O Abbe ceramic ball mill is ideal for:
Fine grinding of ceramics and minerals
Chemical processing and powder dispersion
Industrial pigment and paint milling
Pharmaceutical milling applications
Metal and composite material processing
What Products Would This Be Used For?
Ceramic powders and coatings
Pharmaceutical fine powders and active ingredients
Chemical and industrial minerals
Pigments, dyes, and specialty paints
Metallurgical and composite material processing
