Unused / New In Crates - Eden Labs LLC Industrial 500 Gallon Performance Solvent Recovery System. Ethanol Platform. Skidded system. Quick connect / disconnect fittings for ease of operation. Turnkey system with all utilities. No Winterizing necessary. In-line filtration, Recovers up to 100 gallons of ethanol per hour. All stainless steel. Still in original Crates. Consists of the following: (3) Eden Labs High Performance Solvent Recovery System. (500 gallon) to include: 500 gallon jacketed tank: includes lid, closures, seal ring, transfer pump, and heating system. 500 gallon Conical lid with Tri-clamp outlet, cone has 3 picking eyehooks. Tube in Shell External Condenser complete with connection to Conical Lid & Adaptors. Vacuum Pump and Manifold. Falling Film Accessory-Mixer air driven, sanitary, vacuum-rated for use with Eden Labs Solvent Recovery System. 84KW, air-cooled chiller with 460/3/60 power, casters, expansion tank, and remote control. 2 each 100 Gallon Vacuum Rated Jacketed Solvent Recovery Vessel. (3) High Performance Extraction System (100 gallon) to include: 100 gallon jacketed tank: includes lid, closures, seal ring, and transfer pump. 100 gallon still basket with tank, lid, gasket, basket crossbar for basket removal. Spray Ball for shower-mode extraction. Filtration system, includes Lenticular, Housing Sight Glasses, and Carbon Filters. Touch Science Chiller DLSB 50-80 Model cryo-capable. Top Mount Air Driven Mixer with Folding Impellers. (6) SST 100 Gallon Jacketed Tank. 12 Gallon shell with sanitary rim top 2 piece hinge cover with handle. Designed to heat or chill liquid at atmospheric pressure. CP Compressor, 30 hp. 3ph.Tri-Volt, 125 psi Base Mount Changed to 35 hp gear drive with 400 gallon. Remote tank complete with dryer, particulate and coalescing filter as well as installation components and gauges.
Used Equipment Facts About This Machine
Industrial Unused - Eden Labs LLC 500 Gallon Performance Solvent Recovery System (Ethanol Platform)
Manufacturer Information:
Manufacturer: Eden Labs LLC
Condition: Unused / New in Crates
Platform: Ethanol Solvent Recovery
Specifications:
System Type: Industrial Solvent Recovery & Extraction
Recovery Capacity: Up to 100 Gallons of Ethanol Per Hour
Construction Material: All Stainless Steel
Operation Features:
Skidded System for Mobility and Stability
Quick Connect / Disconnect Fittings for Ease of Operation
Turnkey System with All Utilities
No Winterizing Required
In-Line Filtration for Efficient Solvent Recovery
System Components:
(3) Eden Labs High-Performance Solvent Recovery Systems (500-Gallon)

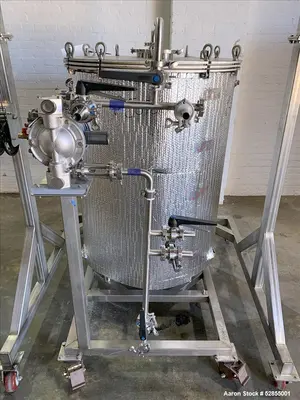

500-Gallon Jacketed Tank:

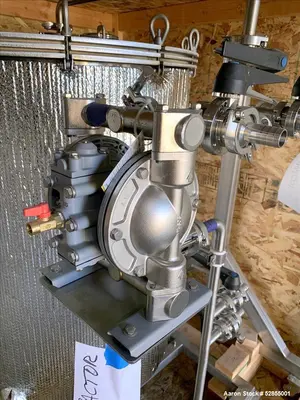

Includes Lid, Closures, Seal Ring, Transfer Pump, and Heating System
500-Gallon Conical Lid with Tri-Clamp Outlet:
Features 3 Picking Eyehooks
Tube-in-Shell External Condenser:
Complete with Connection to Conical Lid & Adaptors
Vacuum Pump and Manifold
Falling Film Accessory:
Mixer Air Driven, Sanitary, Vacuum-Rated for Use with Eden Labs Solvent Recovery System
Chiller:
84 kW Air-Cooled Chiller (460/3/60 Power) with Casters, Expansion Tank, and Remote Control

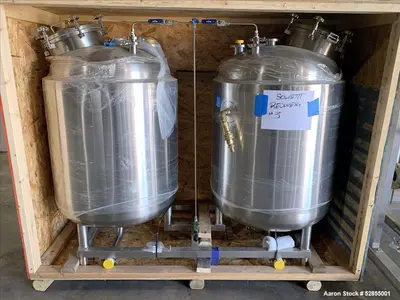

(2) 100-Gallon Vacuum-Rated Jacketed Solvent Recovery Vessels
(3) High-Performance Extraction Systems (100-Gallon)
100-Gallon Jacketed Tank:
Includes Lid, Closures, Seal Ring, and Transfer Pump
100-Gallon Still Basket with Tank, Lid, Gasket, and Crossbar for Basket Removal
Spray Ball for Shower-Mode Extraction
Filtration System:
Lenticular Housing, Sight Glasses, and Carbon Filters
Chiller:

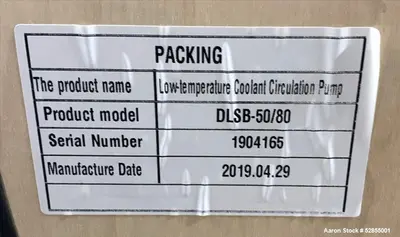

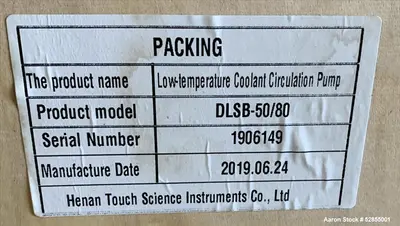

Touch Science Chiller DLSB 50-80 Model (Cryo-Capable)
Top Mount Air-Driven Mixer with Folding Impellers
(6) Stainless Steel Jacketed Tanks (100-Gallon Each)
Shell Capacity: 12 Gallon
Sanitary Rim Top with 2-Piece Hinge Cover and Handle
Designed to Heat or Chill Liquid at Atmospheric Pressure
Compressor & Additional Equipment:
CP Compressor (Base Mount) 30 HP, 3 Phase, Tri-Volt, 125 PSI
Changed to 35 HP Gear Drive with 400-Gallon Remote Tank
Includes Dryer, Particulate & Coalescing Filter, Installation Components, and Gauges
Applications:
Ethanol-Based Extraction: Efficient solvent recovery for botanical extraction, cannabis, and hemp oil production
Food & Beverage Industry: Recovery of ethanol and other alcohol-based solvents in beverage and food processing
Pharmaceutical & Nutraceuticals: Solvent recovery in the production of herbal extracts, vitamins, and API purification
Chemical Processing: High-efficiency solvent extraction and recovery for industrial chemical applications
Cosmetic & Personal Care: Recovery of solvents used in fragrance and essential oil extraction
Laboratory & R&D: Research-scale solvent recovery systems for testing and formulation development
