Used ExtraktLab E140, SupercrititcalCO2 Extraction System. Biomass Processing per Day: 192 kg / 422 pounds. Biomass Input per Cycle: 5-8kg. Cycle Time at 10% PP: 60 minutes. Efficiency Oil Recovery: Hemp 90+% and Marijuana 95+%. Operating Pressure: 0 to 5000 psi. Operating Temperature: 25 to 100 Degrees C. CO2 Supply: 750-850 psi inlet. Includes: (2) 20L extraction cylinders; (3) 304 stainless steel collection columns. 24sq ft. footprint. Controlled by Touch Screen HMI Panel. Electrical Requirements: 208-240 VAC, 3 Phase, 50-60 HZ. Includes optional upgrades: CO2 Recycler System - Liquid CO2 recycler system, 5000psi, 20L capacity cylinder, fully integrated into extraction machine with automated control from the HMI panel; Onboard Ethanol Pump - Fully integrated ethanol pump for cleaning internal extractor components and co-solvent applications, 5000psi, automated control from HMI panel. Includes PolyScience DuraChill Chiller. 5HP; 17,935W / 61,200 BTU/Hr @35 Celcius cooling capacity. 3/60/230V.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: ExtraktLab
Model: E140
Condition: Used
Manufacturing Data:
Biomass Processing Capacity:
Per Day: 192 kg / 422 lbs
Per Cycle: 5-8 kg
Cycle Time (10% PP): 60 minutes
Extraction Efficiency:
Hemp: 90%+ oil recovery
Marijuana: 95%+ oil recovery
Operating Conditions:
Pressure: 0 to 5000 psi
Temperature: 25°C to 100°C
CO2 Supply: 750-850 psi inlet
System Footprint: 24 sq. ft.
Power Requirements: 208-240 VAC, 3 Phase, 50-60 Hz
Control System: Touch Screen HMI Panel
Included Components:
(2) 20L Extraction Cylinders
(3) 304 Stainless Steel Collection Columns

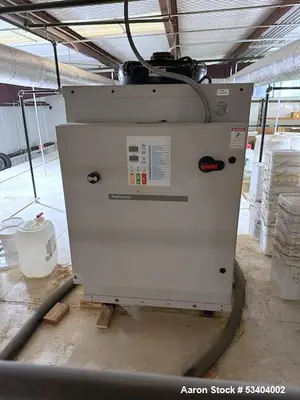

PolyScience DuraChill Chiller – 5HP, 17,935W / 61,200 BTU/Hr @ 35°C, 3/60/230V
Optional Upgrades (Included in System):
CO2 Recycler System:
Liquid CO2 recycler system, 5000 psi
20L capacity cylinder
Fully integrated with automated HMI panel control
Onboard Ethanol Pump:
Integrated ethanol pump for internal cleaning & co-solvent applications
5000 psi, automated control via HMI panel
Description:
The ExtraktLab E140 Supercritical CO2 Extraction System is a high-efficiency, industrial-grade cannabis and hemp extraction system, designed for high-yield oil recovery while maintaining precision and automation.
Capable of processing up to 422 lbs (192 kg) of biomass per day, the E140 system delivers 90%+ oil recovery for hemp and 95%+ for marijuana. Operating at pressures up to 5000 psi, this unit ensures efficient extraction of cannabinoids and terpenes.
The system is controlled via a touchscreen HMI panel, allowing fully automated control of pressure, temperature, and extraction parameters. Optional CO2 recycling and ethanol cleaning systems are fully integrated to enhance solvent recovery and cleaning efficiency.
Specifications:
Biomass Capacity:
192 kg / 422 lbs per day
5-8 kg per cycle
Cycle Time: 60 minutes @ 10% PP
Extraction Efficiency: 90%+ for hemp, 95%+ for marijuana
Operating Pressure: 0 to 5000 psi
Operating Temperature: 25°C - 100°C
CO2 Supply Pressure: 750-850 psi inlet
Collection Columns: (3) 304 stainless steel collection columns
Control System: Touchscreen HMI panel
Footprint: 24 sq. ft.
Electrical Requirements: 208-240 VAC, 3 Phase, 50-60 Hz
Applications:
Supercritical CO2 extraction for cannabis and hemp
High-yield THC and CBD oil production
Botanical and nutraceutical oil extraction
Pharmaceutical-grade essential oil extraction
Terpene-rich cannabis extraction
Potential Products for Extraction:
Full-spectrum cannabis and hemp oils
THC and CBD distillates
Terpene-rich concentrates
Herbal and nutraceutical extracts
Essential oils for cosmetics and perfumery
