Used Niro Spray and Fluid Bed Drying System: Rated 24 MMBTU. Double effect evaporator, last used on animal blood, poultry hydrolysis, egg, liver products, pork plasma. Includes (2) towers with titanium tube sheets, titanium heads, stainless steel shell. Rated for approximately 50,000 pounds/hour water, 30,000 pounds/hour product. System includes horizontal condenser, shell and tube heat exchanger, stainless steel tubes, carbon steel shell. Circulation pumps are in storage, Goulds stainless steel with CD4 impellers. Missing control system. Arthur Zimmer Spray drying system, approximately 30' diameter, manufactured by Niro, stainless steel contacts, fed by Niro Savoi 125 hp high pressure feed pump, rated for 1800 - 2500 PSI feed. Top of dryer includes (8) feed nozzles (typically fed four nozzles at a time). Also includes Waukesha 130 stainless steel pump, Milpointe 50,000 CFM vertical scrubber, (4) stainless steel cyclones, etc. With Wiegand single effect evaporator, rated for approximately 45,000 - 50,000 pounds/hour product, 35,000 pounds/hour water evaporation rate, 304 stainless steel construction, with dedicated boiler, Needs vacuum pump. Includes 400 hp DC drive, vari-speed, SIHI vacuum pumps, Goulds centrifugal pumps. Last used on blood products, eggs, brewers yeast, liver products, poultry products, etc. With Rotary screen, 5' diameter x 12' long, manufacture by Baycore Fibre, Type SDS 60120, Serial# 99-0210. Current replacement cost is $200,000. Includes approximately 6" diameter flange feed inlet, leading to internal distributor. Equipment has fine mesh internal screen. Spare screens. Last screening eggs. With AirChem scrubber, rated for approximately 50,000 CFM, single stage with packed bed, No controls, last used as scrubber for hydrolysis building. New in 1998, 840 GPM, 1.5" W.C., ambient. With G&H Products Tube-in-tube heat exchanger, stainless steel construction, approximately 3" diameter outer tube, 2" diameter inner tube, 25' long, (20) tubes in 2x10 sections, insulated. Brought product from 180? to 40?. Used on Dairy / Milk Products. Food Grade.
Used Equipment Facts About This Machine
Manufacturer Information
Brand: Niro
Condition: Used
Year Built: 1998 (Some Components)
Previous Applications: Animal Blood, Poultry Hydrolysis, Egg, Liver Products, Pork Plasma, Brewers Yeast, Dairy/Milk Products
Description
The Niro Spray & Fluid Bed Drying System is a high-capacity industrial drying system, designed for food-grade, pharmaceutical, and industrial applications. Rated at 24 MMBTU, this system includes spray drying, evaporation, and fluid bed processing components, making it ideal for liquid-to-powder conversion in food, dairy, and protein-based products.
The double-effect evaporator can process up to 50,000 lbs/hr of water and 30,000 lbs/hr of product. It features titanium tube sheets, titanium heads, and a stainless steel shell, ensuring durability and resistance to corrosion. The system also includes:
Horizontal condenser
Shell & tube heat exchanger with stainless steel tubes & carbon steel shell
Goulds stainless steel circulation pumps with CD4 impellers (currently in storage)
Missing control system (needs replacement)

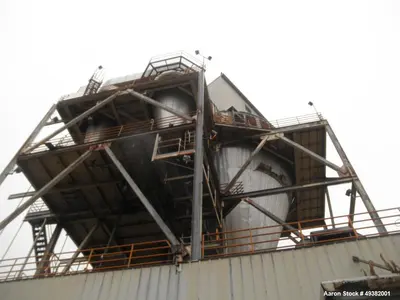

The Arthur Zimmer Spray Drying System is a 30' diameter stainless steel drying unit, manufactured by Niro. The system is fed by a Niro Savoi 125 HP high-pressure feed pump, rated at 1,800 - 2,500 PSI. The top of the dryer includes (8) feed nozzles (typically 4 nozzles fed at a time).
Additional equipment includes:
Waukesha 130 Stainless Steel Pump
Milpointe 50,000 CFM Vertical Scrubber
(4) Stainless Steel Cyclones
Wiegand Single-Effect Evaporator (Rated for 45,000 - 50,000 lbs/hr product, 35,000 lbs/hr water evaporation), 304 Stainless Steel Construction
Dedicated Boiler (Vacuum pump required)
400 HP DC Drive (Variable Speed)
SIHI Vacuum Pumps & Goulds Centrifugal Pumps
The system also includes a Baycore Fibre Rotary Screen (5' diameter x 12' long), designed for fine mesh internal screening, with spare screens available. It was last used for egg screening.
The AirChem Scrubber, rated for 50,000 CFM, is a single-stage scrubber with a packed bed, last used in a hydrolysis building.
A G&H Products Tube-in-Tube Heat Exchanger is also included, featuring:
Stainless Steel Construction
(20) Tubes in 2x10 Sections
3" Outer Tube, 2" Inner Tube
25' Length, Insulated
Temperature Control: From 180°F to 40°F
Last Used on Dairy/Milk Products
Specifications
System Capacity: 24 MMBTU
Evaporator Capacity:
Water Processing: ~50,000 lbs/hr
Product Processing: ~30,000 lbs/hr
Spray Dryer:
Manufacturer: Niro
Diameter: 30'
Feed System: Niro Savoi 125 HP Pump (1,800 - 2,500 PSI)
Feed Nozzles: 8 (Operates with 4 Nozzles at a Time)
Heat Exchanger: Tube-in-Tube, Stainless Steel
Outer Tube Diameter: 3"
Inner Tube Diameter: 2"
Length: 25'
Temperature Control: 180°F → 40°F
Rotary Screen: Baycore Fibre Type SDS 60120
Diameter: 5'
Length: 12'
Fine Mesh Screen with Spare Screens
Scrubber: AirChem, 50,000 CFM, Single Stage, Packed Bed
Vacuum & Pumps:
SIHI Vacuum Pumps
Goulds Centrifugal Pumps with CD4 Impellers
Additional Equipment:
Condenser & Shell-Tube Heat Exchanger
Waukesha 130 Stainless Steel Pump
Milpointe 50,000 CFM Vertical Scrubber
Dedicated Boiler (Vacuum Pump Needed)
400 HP DC Drive (Variable Speed)
Control System: Missing (Needs Replacement)
Applications
Dairy & Milk Processing – Spray drying of milk powders, whey protein, and dairy-based formulations
Animal Protein Processing – Drying of blood plasma, poultry hydrolysis, and egg/liver products
Food & Beverage Industry – Powder production for protein supplements, flavorings, and extracts
Pharmaceutical & Biotech – Spray drying of active pharmaceutical ingredients (APIs)
Chemical Processing – Conversion of liquid solutions to powdered chemical compounds
Compatible Products
Industrial spray dryers and fluid bed drying systems
High-capacity evaporation and concentration equipment
Food and pharmaceutical-grade powder processing systems
Heat exchangers and scrubber systems for industrial drying
