Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer designed for R&D applications. With two-fluid nozzle atomizer, drying chamber, cyclone, exhaust system, and a PLC-controlled panel with data logging. Maximum inlet air temperature of 350C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70C. It operates with a nominal drying air rate of 150 kg/h and features a 900 mm drying chamber diameter. The standard power supply is 3/50/400volt, with a 3 kW suction fan and a 15 kW air heater. Constructed with AISI 316L for product-contacting parts and AISI 304 for external surfaces. The unit requires a floor space of 2.5 m x 1.35 m, a height of 2.5 m, and a recommended free height of 3.2 m. The net weight is approximately 900 kg. Heating system is not included and must be added at additional cost. Ask an Aaron representative for costs for new heater from OEM.
Used Equipment Facts About This Machine
Description
The Used Anhydro SPX MicraSpray 150 Small Scale Spray Dryer is a high-performance system designed specifically for research and development applications. It features a two-fluid nozzle atomizer for efficient atomization and a PLC-controlled panel with data logging capabilities for precise control and monitoring. This system is ideal for small-scale production or laboratory testing, offering a maximum inlet air temperature of 350°C and a water evaporation capacity of approximately 16 kg/h at an outlet temperature of 70°C.

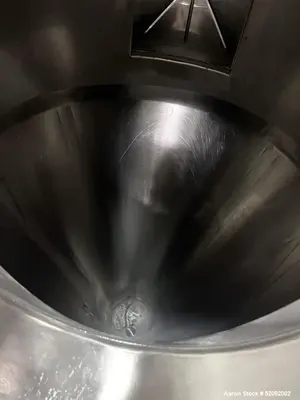

The drying chamber has a diameter of 900 mm and is constructed with AISI 316L stainless steel for all product-contact areas, ensuring durability and product safety. External surfaces are made of AISI 304 stainless steel. The unit includes a drying chamber, cyclone, exhaust system, and a suction fan for airflow management.
With a compact footprint of 2.5 m x 1.35 m and a height of 2.5 m, this spray dryer is well-suited for laboratory environments and small production spaces. The unit operates on a 3x400 V, 50 Hz power supply, with a 15 kW air heater and a 3 kW suction fan.
Specifications
Model: MicraSpray 150
Maximum Inlet Air Temperature: 350°C
Water Evaporation Capacity: 16 kg/h at 70°C outlet temperature
Nominal Drying Air Rate: 150 kg/h
Drying Chamber Diameter: 900 mm
Construction:
Product-Contact Areas: AISI 316L Stainless Steel
External Surfaces: AISI 304 Stainless Steel
Power Supply: 3x400 V, 50 Hz
Air Heater Power: 15 kW
Suction Fan Power: 3 kW
Dimensions: 2.5 m (L) x 1.35 m (W) x 2.5 m (H)
Recommended Free Height: 3.2 m
Net Weight: Approximately 900 kg
Applications
This small-scale spray dryer is ideal for:
Research and development (R&D)
Laboratory-scale production
Pharmaceutical ingredient drying
Food and beverage powder processing
Chemical and specialty material drying
What Products Would This Be Used For?
Dairy products and proteins
Research & Development
Plant-based extracts
Pharmaceuticals and nutraceuticals
Food flavorings and additives
Chemical powders and catalysts
