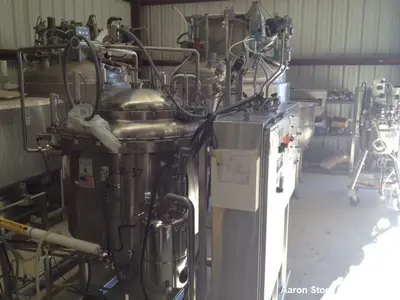

Used Sweco PharmASep Model PH46Y30 Vibro-Energy Filter Dryer, 316L Stainless Steel. Sanitary design rated 0-2 bar (0-30 psi), vacuum -1 bar (-15 psi). Batch processing capacity solids up to 25kg (55 pounds). Above 30" diameter scalping screen capacity 11.01 gallons (1.47 cubic feet), between scalping & 46" diameter product screen capacity 31.3 gallon (4.18 cubic feet), capacity below 46" diameter product screen 38.5 gallon (5.19 cubic feet). Screens not included. Driven by a 2.5hp motor. Includes a 300 Liter vessel Certified by Pure-Flo Precision, serial# 240360, built 2004. Internal rated 30psi, vacuum rating -1 bar, control panel, and a Watson Marlow pump, model 624U. Mounted on frame. Nutsche Type Filter. Serial # 601754.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Sweco
Model: PH46Y30
Serial Number: 601754
Year Built: 2004
Condition: Used
Description:
The Sweco PharmASep Vibro-Energy Filter Dryer (Model PH46Y30) is a high-efficiency pharmaceutical and chemical filtration system, designed for batch processing of solids up to 25 kg (55 lbs). Made from 316L stainless steel, this unit ensures sanitary and corrosion-resistant operation in demanding processing environments.
This Nutsche-type filter dryer features a sanitary design rated for 0-2 bar (0-30 psi) and vacuum -1 bar (-15 psi), allowing for both pressure and vacuum filtration. It includes a 300-liter vessel certified by Pure-Flo Precision (serial #240360), an internal rating of 30 psi, and a Watson Marlow pump (Model 624U) for precise fluid handling.
Equipped with a 2.5 HP motor, this unit is designed for multi-stage separation, with storage capacities of 11.01 gallons (1.47 cubic feet) above the 30” diameter scalping screen, 31.3 gallons (4.18 cubic feet) between the scalping and 46” product screen, and 38.5 gallons (5.19 cubic feet) below the 46” product screen. Screens are not included. The system is mounted on a frame for easy installation and stability.
Specifications:
Type: Nutsche-Type Filter Dryer
Material: 316L Stainless Steel
Processing Capacity: Solids up to 25 kg (55 lbs)
Operating Pressure: 0-2 bar (0-30 psi)
Vacuum Rating: -1 bar (-15 psi)
Batch Storage Capacity:
Above 30” Scalping Screen: 11.01 gallons (1.47 ft³)
Between 30” Scalping & 46” Product Screen: 31.3 gallons (4.18 ft³)
Below 46” Product Screen: 38.5 gallons (5.19 ft³)
Screens Included: No
Motor Power: 2.5 HP
Additional Components:
300L Vessel Certified by Pure-Flo Precision (Serial #240360)
Internal Rating: 30 psi
Watson Marlow Pump (Model 624U)
Control Panel Included
Frame-Mounted: Yes
Serial Number: 601754
Year Built: 2004
Condition: Used
Applications:
The Sweco PharmASep Vibro-Energy Filter Dryer is ideal for applications requiring high-efficiency solid-liquid separation, filtration, and drying in industries such as:
Pharmaceuticals
Fine Chemical Processing
API (Active Pharmaceutical Ingredient) Production
Specialty Chemicals
Food & Beverage Processing
Powder Processing
Industrial Solvent Recovery
What Products Would This Be Used For?
Active pharmaceutical ingredients (APIs)
Fine and specialty chemicals
Crystallized compounds and powders
Industrial solvent-based filtration
Food-grade powders and dry ingredients
