USED HITACHI TC4F-26

Overview
Manufacturer:
HITACHI
Model:
TC4F-26
Stock #:
52624001
Status:
For Sale
Description

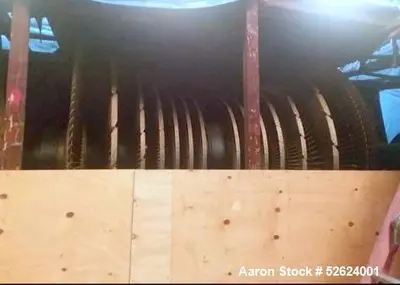

Unused - 450MW Hitachi TC4F-26 Steam Turbine Generator. Nominal rating 400MW. Max continuous rating 450MW, Type TC4R-26, 2,400psig, 1,000F, reheat steam 1,000F, exhaust pressure 2.5 inch Hg. Abs., 3,600rpm, 7 extractions, number of stages: HP 6, IP 4, LP 7x four flow, last stage bucket height 26in., governor type: fly ball with rotation pilot valve, 2 main stop valves, 4 control valves, 2 combined reheat valves, casing: 3 number double wall construction, rotor: 3 number solid type, journal bearings: 4 number elliptical, thrust bearing: 1 number tapered - land type, shaft gland system: steam seal with labyrinth packing, turbine governing device, mechanical hydraulic governor, generator: TFLQQ-K totally enclosed, explosion proof, cylindrical rotor type. AC generator, with water cooled stator, and hydrogen direct cooled rotor, outdoor type, rated capacity 553,064 kVA at 60psig hydrogen, .85 power factor, rated output: 470,104kW at 60psig hydrogen, terminal voltage 24,000V, 3 phases, 60Hz. double star connection. Built 1976.

Specifications

Used Equipment Facts About This Machine
Manufacturer:Hitachi
Description:For sale: Unused Hitachi TC4F-26 Steam Turbine Generator with a nominal rating of 400 MW and a maximum continuous rating of 450 MW. This high-capacity turbine operates at 2,400 psig inlet pressure with 1,000°F main steam and 1,000°F reheat steam. Designed for efficient power generation, it runs at 3,600 RPM with an exhaust pressure of 2.5 inches Hg Abs.
The turbine features 7 extractions and a multi-stage configuration: 6 HP stages, 4 IP stages, and 7x four-flow LP stages with a last stage bucket height of 26 inches. The fly ball governor with a rotation pilot valve ensures precise control, supported by 2 main stop valves, 4 control valves, and 2 combined reheat valves.
Constructed with a three-number double-wall casing and three-number solid-type rotors, the unit includes journal bearings for reliable performance.
Specifications:
Steam Turbine:

Manufacturer: Hitachi

Model: TC4F-26 / Type TC4R-26

Nominal Rating: 400 MW

Max Continuous Rating: 450 MW

Inlet Steam Pressure: 2,400 psig

Main Steam Temperature: 1,000°F

Reheat Steam Temperature: 1,000°F

Exhaust Pressure: 2.5 inches Hg Abs

Speed: 3,600 RPM

Extractions: 7

Stages: HP – 6, IP – 4, LP – 7x four-flow

Last Stage Bucket Height: 26 inches

Control & Valve System:

Governor Type: Fly ball with rotation pilot valve

Main Stop Valves: 2

Control Valves: 4

Combined Reheat Valves: 2

Construction:

Casing: 3-number double-wall construction

Rotor: 3-number solid type

Bearings: Journal bearings

Applications:

Utility-scale power plants

Industrial steam power generation

Combined cycle power plants

Large-scale energy projects

What Products Would This Be Used For?

High-capacity electricity generation

Base load and peak load power plants

Industrial steam and power solutions

Grid-connected energy projects
