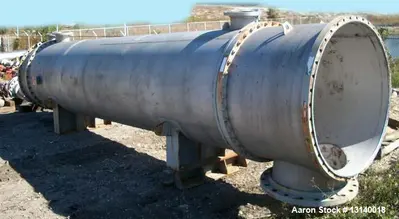

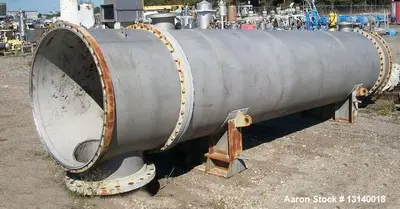

Used Kennedy Tank & Manufacturing Co Horizontal Heat Exchanger. 304 Stainless shell and tube side. Overall dimensions: 44" diameter x 20'6" long. Shell rated 50 at 250 degree F and tubes rated 38/FV at 250 degree F. Built 1997. Mounted on short saddles. Fittings: top (1) 4", (2) 6"; shell vent/drain (2) 2"; bottom (1) 24" and (1) 6". Tubes are 15' face to face length with (990) 1" tubes. Included bolt-on dished heads. Approximately 3900 Square Foot
Used Equipment Facts About This Machine
Type: Shell & Tube Heat Exchanger
Orientation: Horizontal
Surface Area: ~3900 sq. ft.
Material: 304 Stainless Steel (Shell & Tube Side)
Overall Dimensions: 44" diameter x 20'6" length
Shell Rating: 50 psi @ 250°F
Tube Rating: 38 psi / Full Vacuum @ 250°F

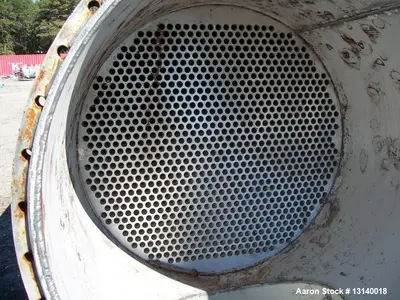

Tubes: (990) tubes, 1" diameter, 15' face-to-face length
Mounting: Short saddles
Head Type: Bolt-on dished heads
Year Built: 1997
Fittings & Openings
Top: (1) 4", (2) 6"
Shell Vent/Drain: (2) 2"
Bottom: (1) 24", (1) 6"
Applications
Chemical & Petrochemical Processing (heat recovery, cooling, condensation)
Oil & Gas Industry (liquid heating, gas cooling, refining processes)
Power Generation (waste heat recovery, steam systems)
Food & Beverage Processing (temperature control, pasteurization)
Pharmaceutical & Biotech Industry (sterile heating and cooling applications)
Compatible Products & Systems
Industrial cooling and heating systems
Steam and process fluid handling
Oil refining and gas processing units
Heat recovery and energy efficiency applications
