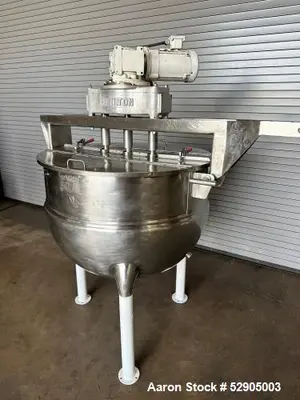

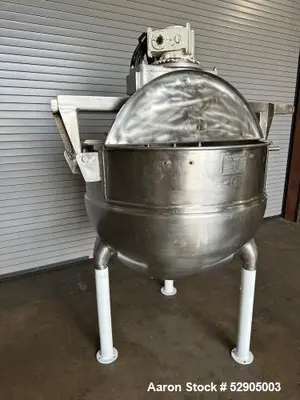

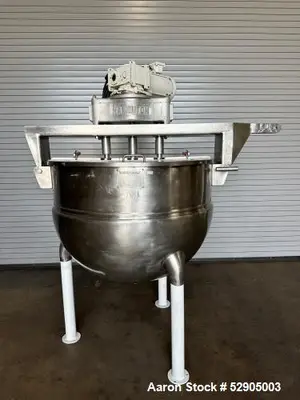

Used Hamilton 200 Gallon Triple Motion Stainless Steel Kettle. 48" dia x 36" deep. Hemispherical bottom. Side/bottom scrape triple agitation with pivoting bridge. Jacket rated 125 PSI @ 345 Deg F. 5HP drive, 3/50/60/230/460V. Split stainless lids. 3" Tri-Clamp discharge fitting. Serial# 2475, National Board# A8223. Last used in food.
Used Equipment Facts About This Machine
🔹 Product Description
This Used Hamilton 200-Gallon Stainless Steel Kettle is a high-performance triple motion agitation system ideal for heavy-duty processing of viscous or particulate-rich food products. Built with a hemispherical bottom for optimized heat transfer and mixing efficiency, this kettle includes side and bottom scraping agitators, and a pivoting bridge for convenient access.
The jacket is ASME-rated at 125 PSI @ 345°F, suitable for high-temperature steam or hot water applications. Powered by a 5 HP motor, the system is designed for 3-phase operation (230/460V, 50/60Hz). Other features include split stainless lids, 3" Tri-Clamp discharge, and a National Board-certified pressure vessel.
⚙️ Specifications
Manufacturer: Hamilton
Capacity: 200 Gallons
Model Type: Triple Motion Agitation
Dimensions: 48" Diameter x 36" Deep
Bottom Type: Hemispherical
Jacket Rating: 125 PSI @ 345°F (Steam)
Agitation:

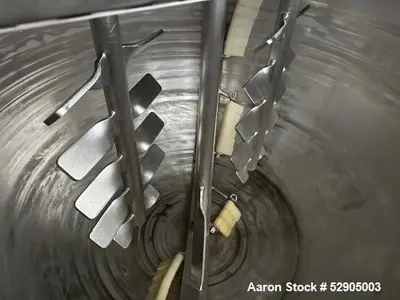

Triple motion: side-scrape, bottom-scrape, and rotating
Pivoting agitator bridge for easy access
Drive Motor: 5 HP, 3 Phase, 50/60 Hz, 230/460V

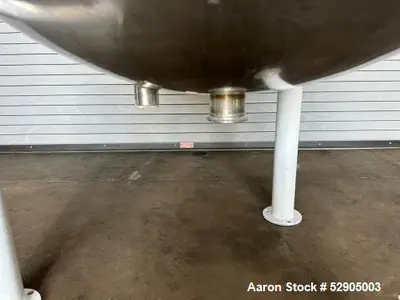

Discharge: 3” Tri-Clamp
Lids: Split stainless steel
Construction: 304 Stainless Steel

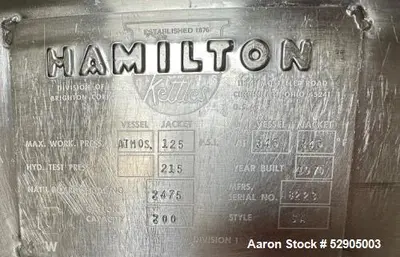

National Board #: A8223
Serial #: 2475
Previous Use: Food processing
✅ Applications
Perfect for high-viscosity or particulate-laden mixing in:
Soups, sauces, gravies
Ready-to-eat meals
Confectionery and fillings
Pasta sauces and dressings
Dairy (cheese mixes, yogurts)
Nutraceuticals and cosmetics
📦 Common Products Processed
Tomato sauces
Cream-based soups
Jams and jellies
Cheese blends
Stews and chowders
Pudding and dessert bases
Cosmetic pastes or creams
