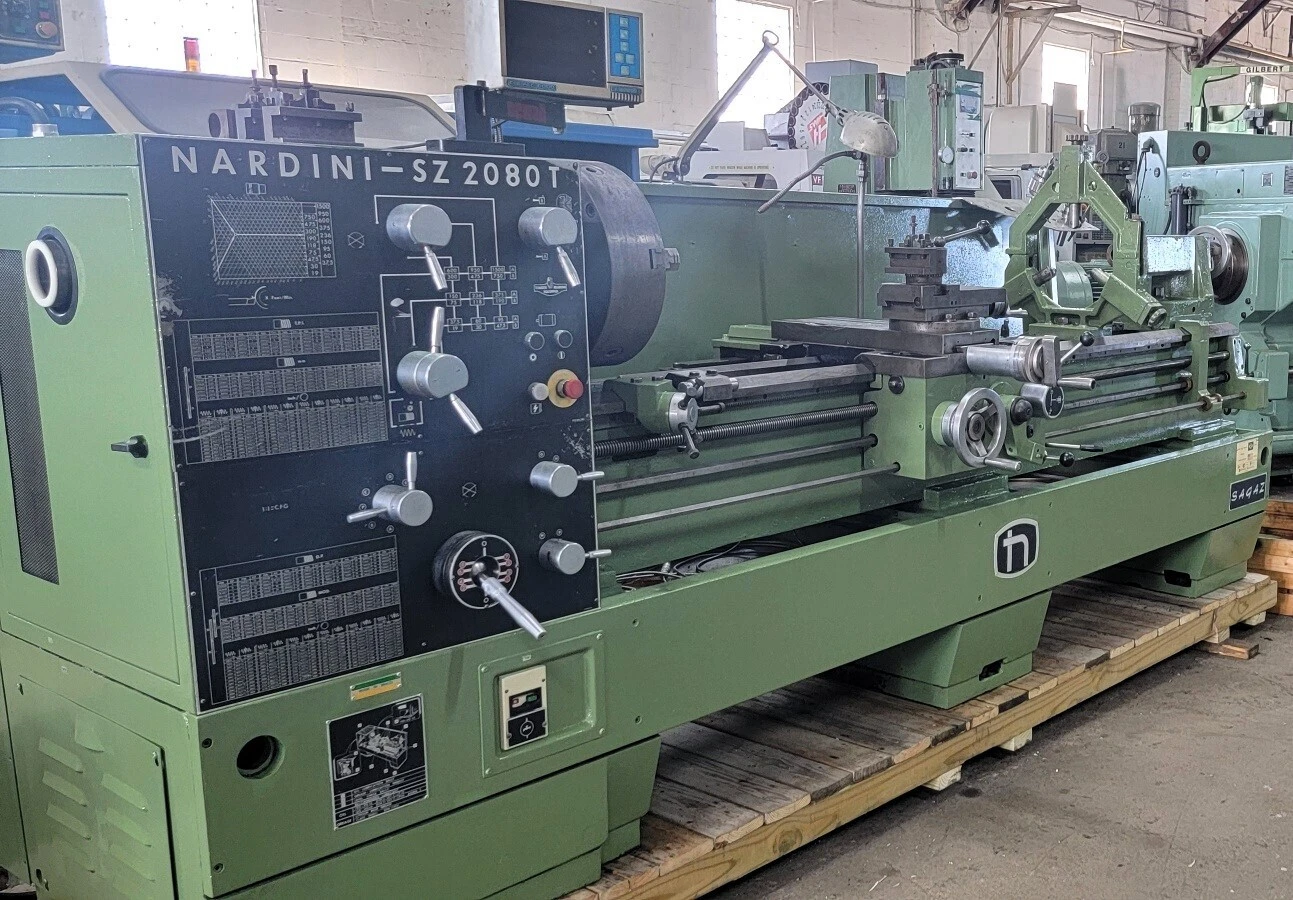

USED NARDINI SZ2080T

MODEL ............................. SZ2080 T
SWING OVER WAYS ................... 20"
SWING IN GAP ...................... 32"
LENGTH OF GAP ..................... 10"
DISTANCE BETWEEN CENTERS .......... 80"
SPINDLE SPEEDS .................... 19 TO 1500 RPM
ENGLISH THREADS..................... (54) 2-3/4" TO 42 TPI
METRIC THREADS...................... (54) .40 TO 18.472
CROSS FEED ........................ (66) .0010 TO .0325
LONGITUDNIAL FEED ................. (66) .0021 TO .0625
TAILSTOCK QUILL 3 1/8" DIA, 8" TRAVEL NO 5 MT
HOLE IN SPINDLE ................... 3"
SPINDLE NOSE D1-8 CAMLOCK
CHUCK ........................BISON (EUROPEAN)15 3/4"" 3 JAW
2 STEADY RESTS (1) 12" ROLLER TYPE
FOLLOW REST
QUICK CHANGE SPI (SWEDISH)TOOLPOST WITH 4 HOLDERS
HARD AND GROUND WAYS
COOLANT SYSTEM WITH CHIP TRAYS
AND FULL-LENGTH SPLASH GUARD
TURRET BED STOP AND MICROMETER BED STOP
LARGE DRILL CHUCK
THREAD DIAL
TAPER ATTACHMENT
MOTOR 9.6 KW APPROX. 12 HORSEPOWER
2 AXIS NEWALL DIGITAL READOUTS
