Used Paul O. Abbe Benchtop Double Arm Mixer, Model SBM-0.5, 316 Stainless Steel. (0.50) Gallon operating capacity (0.80 total). Internal bowl rated Full Vacuum at 250 degrees F, jacket rated 14.7 psi at 250 degrees F. Bowl approximate 5" left to right x 7" front to back x 4-1/2" deep, tangential sigma blades, speeds front 73 rpm, rear 49 rpm, PTFE packing glands, geared one end. Manual tilt, approximate 5" tall bolt on bowl extension, spare blades and top covers. Mixer driven by a 2 hp, 3/60/208-230/460 volt, 1740 rpm gear motor, no ratio. Includes an Allen-Bradley 1305 drive. Serial # A47328. Built 1998. Includes a Neslab RTE-100LP bath circulator, and a Varian SD-200 vacuum pump. Mounted on a steel and wood top table.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Paul O. Abbe
Model: SBM-0.5
Type: Benchtop Double Arm Mixer
Material: 316 Stainless Steel
Serial #: A47328
Year Built: 1998
Description:
This used Paul O. Abbe SBM-0.5 benchtop double arm mixer is a high-performance laboratory and small-batch industrial mixer, designed for precision blending of high-viscosity materials in pharmaceutical, chemical, and food processing applications.
Constructed from 316 stainless steel, the 0.5-gallon operating capacity (0.8-gallon total capacity) mixing bowl is full vacuum-rated at 250°F, with a jacket rated for 14.7 PSI at 250°F, allowing for temperature-controlled processing.
The mixer features tangential sigma blades with two different speeds (front: 73 RPM, rear: 49 RPM), PTFE packing glands, and a manual tilt mechanism for easy product discharge. Additional components include a 5” bolt-on bowl extension, spare blades, and top covers.

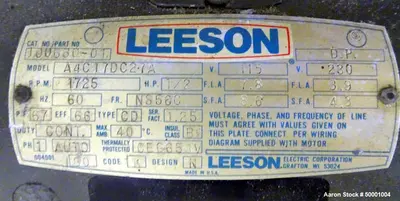

Powered by a 2 HP, 3/60/208-230/460V, 1740 RPM gear motor, this mixer includes an Allen-Bradley 1305 drive for precise speed control. Also included are a Neslab RTE-100LP bath circulator for temperature regulation and a Varian SD-200 vacuum pump for vacuum processing. The entire system is mounted on a steel and wood top table for stability and convenience.
Specifications:
Model: SBM-0.5
Operating Capacity: 0.50 Gallons
Total Capacity: 0.80 Gallons
Material: 316 Stainless Steel
Internal Bowl Rating: Full Vacuum at 250°F
Jacket Rating: 14.7 PSI at 250°F
Bowl Dimensions: 5” L x 7” W x 4.5” D
Blades: Tangential Sigma Blades
Blade Speeds:
Front Blade: 73 RPM
Rear Blade: 49 RPM
Packing: PTFE Packing Glands
Additional Features:
Manual Tilt Mechanism
5” Bolt-On Bowl Extension
Spare Blades & Top Covers
Motor: 2 HP, 3/60/208-230/460V, 1740 RPM Gear Motor
Drive: Allen-Bradley 1305 Variable Speed Drive
Additional Equipment:
Neslab RTE-100LP Bath Circulator

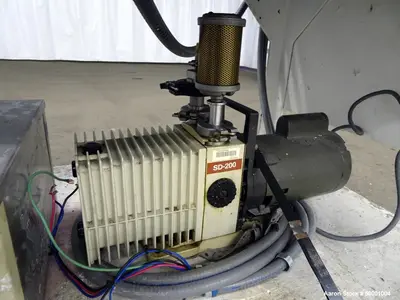

Varian SD-200 Vacuum Pump
Mounting: Steel and Wood Top Table
Applications:
Pharmaceutical & Biotech – Precision mixing of creams, ointments, and active ingredients
Chemical Processing – Blending of adhesives, sealants, and reaction mixtures
Food Processing – Mixing of confectionery pastes, doughs, and emulsions
Cosmetics & Personal Care – Homogenization of skincare products and formulations
Research & Development – Small-batch processing for pilot-scale production
What Products Would This Be Used For?
Pharmaceutical ointments, creams, and gels
Adhesives, epoxies, and chemical compounds
Food pastes, confectionery mixtures, and emulsions
Cosmetic creams, lotions, and balms
Polymer and resin blending
