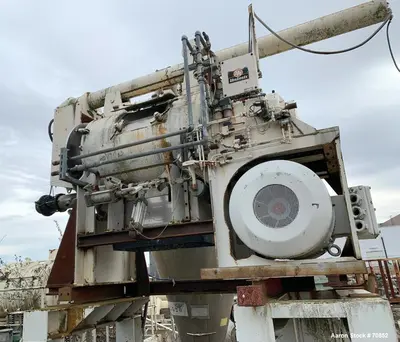

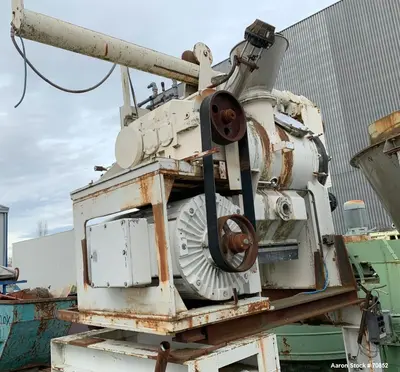

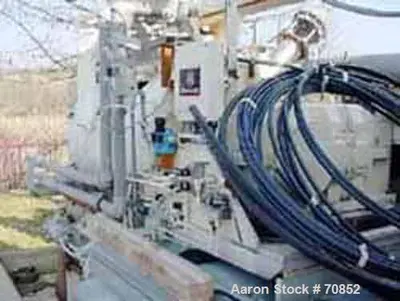

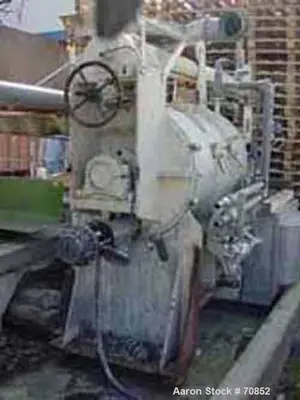

Used Hagen & Rinau Unimix Plow Mixer/Dryer, Type HSM 800. Material of construction is 304 stainless steel (1.4541). 34" (900 mm) diameter x 51" (1300 mm) straight side mixing/drying chamber. Total capacity is 29 cubic feet (822 liter), net working capacity is 8.83-20.3 cubic feet (250-575 liter). Jacketed, inside rated for 45 psi (3 bar) at 212 deg F (100 deg C). 2 end scrapers and 4 Becker plows welded on a shaft. One (1) removable end. (1) 9.75" x 23.4" (250 mm x 600 mm) outlet. Driven via a gearbox by a 195 hp/130 kw, 1280 rpm, 400 volt/50 cycle/3 ph motor.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Hagen & Rinau
Model: HSM 800
Material of Construction: 304 Stainless Steel (1.4541)
Power Requirements: 195 HP (130 kW), 1280 RPM, 400V/50Hz/3Ph
Description:
The Hagen & Rinau Unimix HSM 800 is a high-capacity industrial plow mixer and dryer, ideal for mixing and drying powders, granules, and bulk solids in the pharmaceutical, chemical, and food processing industries. Constructed from 304 stainless steel (1.4541), this unit ensures durability and compliance with industry standards.
The mixing/drying chamber has a 34" (900mm) diameter and a 51" (1300mm) straight side, offering a total capacity of 29 cubic feet (822 liters) with a net working capacity ranging from 8.83 to 20.3 cubic feet (250-575 liters).
Equipped with:
Jacketed chamber rated for 45 PSI (3 bar) at 212°F (100°C) for temperature-sensitive processing
Mixing mechanism:
2 end scrapers
4 Becker plows welded on a shaft
One removable end for easy maintenance and cleaning
9.75" x 23.4" (250mm x 600mm) outlet for efficient material discharge
Powered via a gearbox by a high-performance 195 HP motor (130 kW) at 1280 RPM
Specifications:
Machine Type: Plow Mixer/Dryer
Model: HSM 800
Material: 304 Stainless Steel (1.4541)
Mixing/Drying Chamber:
Diameter: 34" (900 mm)
Straight Side Height: 51" (1300 mm)
Total Capacity: 29 cubic feet (822 liters)
Net Working Capacity: 8.83-20.3 cubic feet (250-575 liters)
Jacketed: Yes, rated for 45 PSI (3 bar) at 212°F (100°C)
Mixing Elements: 2 end scrapers & 4 Becker plows welded on a shaft
Discharge Outlet: 9.75" x 23.4" (250mm x 600mm)
Power:
Motor: 195 HP (130 kW), 1280 RPM
Voltage: 400V, 50Hz, 3 Phase
Features: One removable end for easy maintenance
Applications:
Chemical Processing – Mixing and drying of chemical powders and granules
Pharmaceuticals – Blending active ingredients and excipients
Food Industry – Drying and mixing of powdered ingredients
Cosmetics & Personal Care – Homogenizing raw materials
Industrial & Agricultural Processing – Drying and mixing fertilizers, animal feed, and minerals
What Products Would This Be Used For?
Chemical powders and granules
Pharmaceutical active ingredients and excipients
Dried food ingredients and flavorings
Cosmetic and personal care formulations
Industrial powders and minerals
Animal feed and fertilizer mixing
