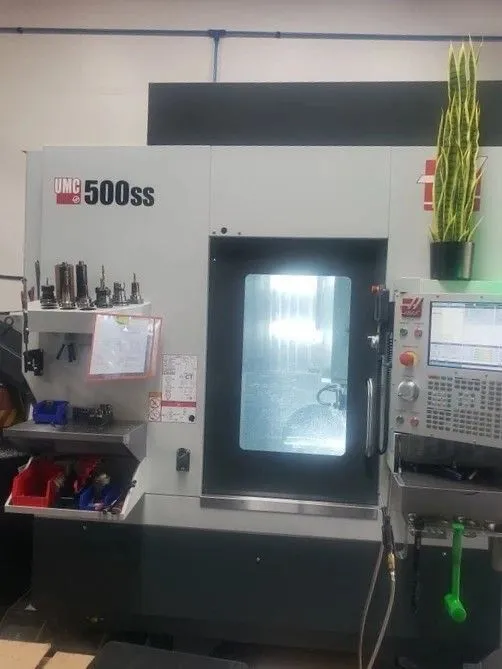

Haas UMCs are the perfect job shop machines for reducing setups and increasing accuracy on multi-sided and complex parts.
| X | 24" | 609.6 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 31 | 31 |
| Taper | 40 | 40 |
| Multi Axis Vertical | 5 | 5 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 119" X 92" X 101" | 119" X 92" X 101" |
| Weight | 11,900 | 11,900 |
TRAVELS
X- AXIS: 24"
Y- AXIS: 16"
Z- AXIS: 16"
RAPID RATE X AXIS: 900 IPM
RAPID RATE Y AXIS: 900 IPM
RAPID RATE Z AXIS: 900 IPM
MAX TABLE LOAD: 500 LBS
SPINDLE MOTOR: 30 HP
SPINDLE SPEED: 12,000 RPM
SPINDLE TAPER: 40 CT
TOOL CHANGER: 50 ATC
SPINDLE NOSE TO PLATTER 4"-20"
TOOL TO TOOL: 1.8 SECONDS
CHIP TO CHIP: 2.4 SECONDS
B AXIS:
TRAVEL: 120 ° TO 35- °
MAX SPEED: 50 °/SEC
MAX TORQUE: 1854 FT-LBF
BRAKE TORQUE: 900 FT-LBF
PLATTER
PLATTER DIAMETER 15.7"
MAX WEIGHT 500 LBS
T-SLOT WIDTH 0.626" - 0.630"
T-SLOT CENTER DISTANCE: 2.48"
NUMBER OF T-SLOTS: 5
AXIS MOTORS:
MAX THRUST X 3300 LBF
MAX THRUST Y 3300 LBF
MAX THRUST Z 4050 LBF
TOOL CHANGER
MAX TOOL DIAMETER (FULL) 2.5"
MAX TOOL DIAMETER (ADJACENT EMPTY) 5.0"
MAX TOOL LENGTH (FROM GAGE LINE) 12"
MAX TOOL WEIGHT 12 LB
TOOL-TO-TOOL (AVG) 2.8 S S
CHIP-TO-CHIP (AVG) 3.6 S
DIMENSIONS: 119" X 92" X 101"
WEIGHT: 11,900 LBS
50+1 TOOL CHANGER
300 PSI THROUGH SPINDLE COOLANT
BELT-TYPE CONVER
PROGRAMMABLE COOLANT NOZZLE
ENCLOSURE EXHAUST
HIGH SPEED MACHINING
AUXILIARY COOLANT FILTER
YORTHROUGH TOOL AIR BLAST
1800 CYCLE HOURS
