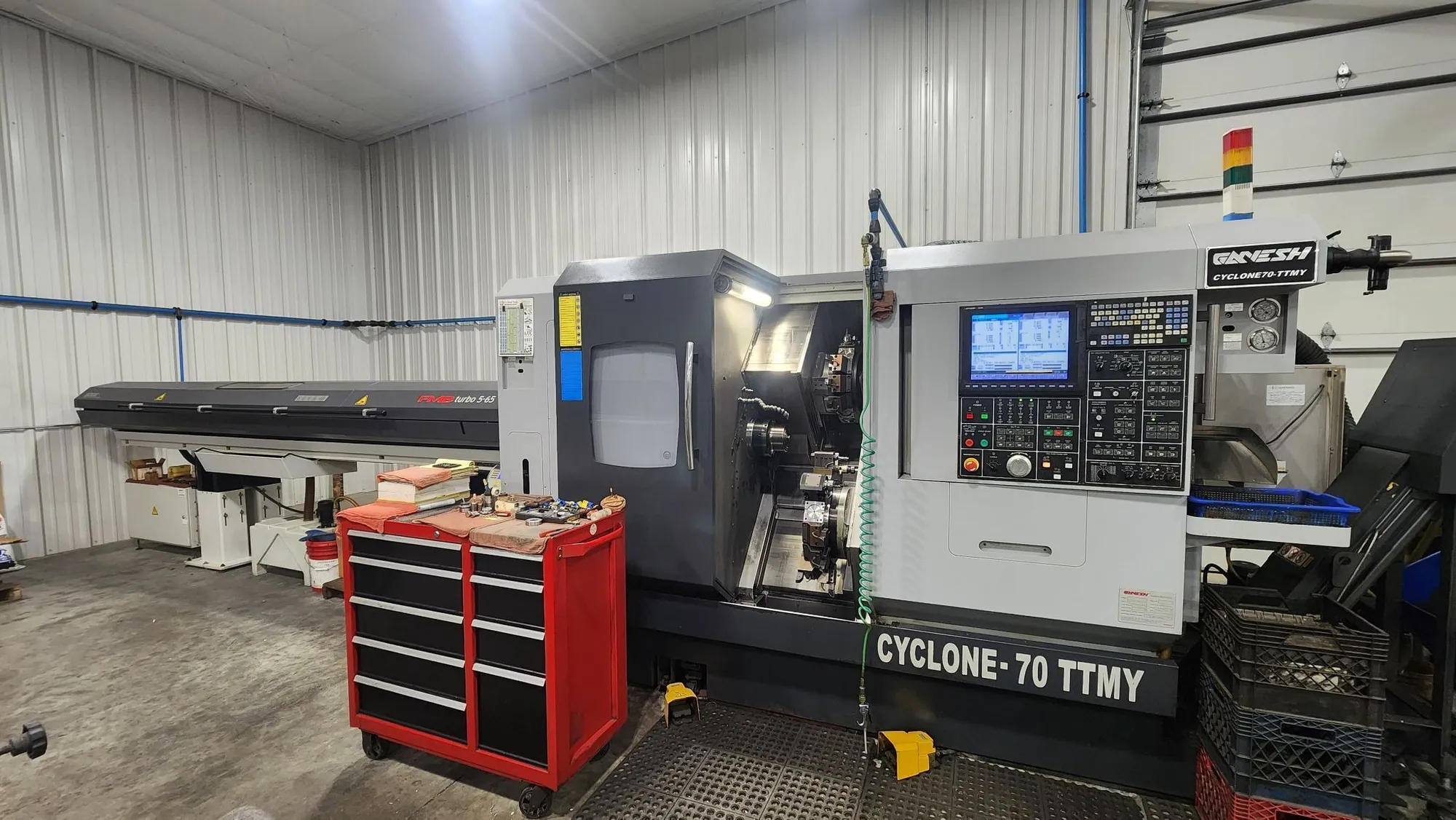

Ganesh Cyclone 70TTMY CNC Turning Center, New in 2014
Dual Spindle, Dual Turret (upper / lower), Y-axis
FMB Turbo 5-65 Magazine Barfeed
| Swing | 7.48" | 189.99 mm |
| Machining Length | 15.75" | 400.05 mm |
| # Axis | 7 | 7 |
| Bar Capacity | 2.75" | 69.85 mm |
| Chuck Size | 10" | 254 mm |
| Distance Between Centers | 36.22" | 919.99 mm |
| Turning Diameter | 7.48" | 189.99 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| # of Turrets | 1 | 1 |
| Hole Thru | 2.75 in | |
| Control | CNC (MITSUBISHI 700 SERIES) | CNC (MITSUBISHI 700 SERIES) |
| Dimensions | 167" x 88" x 79" (includes chip conveyor) | 167" x 88" x 79" (includes chip conveyor) |
| Weight | 22,751 lbs | 22,751 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
Capacity
Turning diameter: 7.48” (190 mm)
Turning length: 15.75” (400 mm)
Spindle
Spindle Nose: A2-6
Spindle Bar Capacity: 2.75” (70 mm)
Chuck Size: 10" with 75mm Bore
Spindle Speed: 6,000 RPM (Integral Spindle) / 4,000 RPM Heavy Duty
Spindle Motor Horsepower: 20-HP peak, 15-HP (30-minute duty rating)
Sub Spindle
Spindle Nose: A2-5
Spindle Bore: 2.40” (61 mm)
Spindle Bar Capacity: 2.0” (52 mm)
Chuck Size: 8”
Spindle Center Height: 46.45” (1,180mm)
Spindle Speed: 6,000 RPM (Integral Spindle)
Spindle Motor Horsepower: 20-HP peak, 15-HP (30-minute duty rating)
Live Tool Turrets (Dual 16-Station Live Tool Turrets)
Number of turret stations: 32 (Any combination of 32 ID, OD or Live tool stations)
Turret index time: (adjacent tool): 0.2 seconds
Turret index time: (180-degree index): 1.2 seconds
Tool Size: 25mm (for square tool and round tool)
Collet Size: ER-32
Tool Holder Type & Size: BMT65
Turret Thru-The-Tool-Coolant: Rated to 1,000 PSI for High Pressure coolant option
Y-Axis
Y-axis travel (Upper Turret only):± 1.38” (35mm)
Y-axis Rapid Feed Rate: 236 Inch Per Minute (6m per minute)
C-Axis
Spindle Radial Resolution 0.001°,
Spindle Radial Resolution: 360,000 radial positions with full contouring capability
Live Tool Speed: 4,000 RPM
B-Axis
B Axis Rapid Traverse Rate: 1,573 Inch Per Minute (40m per minute)
B Axis Travel: 25.59” (650mm)
Rapid Travers Rate – X-axis 630 IPM (16 m/minute)
Rapid Travers Rate – Z-axis 1,573 IPM (40 m/minute)
Machine Dimensions: 167" x 88" x 79" (includes chip conveyor)
Machine Weight: 22,751 lbs
Mitsubishi M700 CNC Control
Mistbuster Mist Collector
FMB Turbo 6-65 Magazine barfeed, 12'
Parts Catcher
Chip Conveyor
Spindle Chiller
