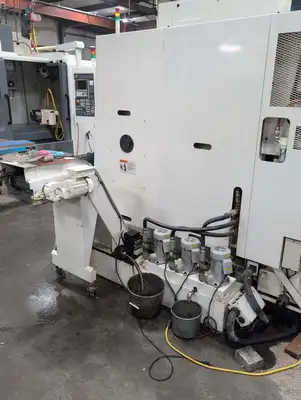

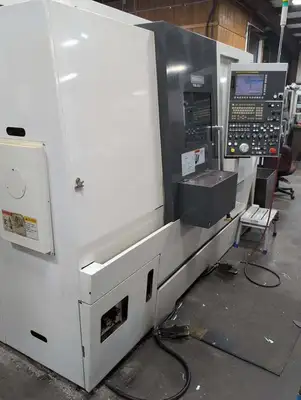

Takisawa TNR-200YS Live Tool CNC Lathe (2010)
Max. Turning Diameter mm 220
Max. Turning Length mm L3 : 254 L5 : 454
Bar Capacity（Left Spindle） *1 66 mm
Bar Capacity（Right Spindle） *1 52 mm -
Left Spindle Speed min-1 3200 [OP. 5000]
Right Spindle Speed min-1 4000 [OP. 6000] -
Rotary Tool Speed min-1 6000
Rapid Traverse Rate m/min X : 20 / Z : 24 / Y : 10
Left Spindle Motor
（15 min/continuous） kW 7.5/5.5 [OP. 11/7.5]
Right Spindle Motor
（15 min/continuous） kW 3.7/2.2 -
Rotary Tool Motor
（5 min/15 min/continuous） kW 3.7/2.2/1.5
Machine Height mm 1700
Required Floor Space mm L3 : 2500×1695 L5 : 2860×1795 L3 : 2110×1695 [OP. 2310×1695 *2]
L5 : 2860×1795
Machine Weight kg L3 : 3500 L5 : 4100
Fanuc 31i model a control
Bore 66mm main spindle / 52mm sub spindle
(2) 8" SMW autoblok hydraulic chucks
(2) 16c dunham collet chucks
VDI 40 turret
Y axis travel 4"
Parts catcher
Chip conveyor
30k in tool holders.
15 static tool holders: 3 od, 2 dbl od, 4 face, 1 part off, 5 boring
9 live tools: 3 xaxis, 3 z axis main spindle, 3 z axis sub spindle
