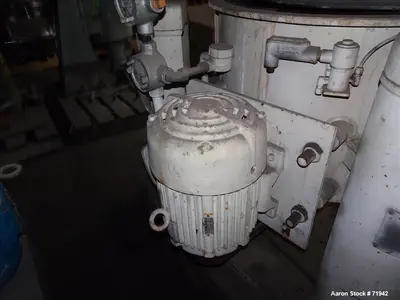

Used Ametek/Tolhurst Center-Slung 26" x 12" Perforated Basket Centrifuge, Rubber Lined (Product Contact Areas). Top load/unload, max bowl speed 1200/600 RPM, basket rated @ 96 lbs per cubic foot, tripod suspension system, PVC feed pipe, rinse pipe with nozzles. Top cover with inspection door and sightglass. Driven by a 2 HP, 3/60/440 Volt, 1700 RPM XP motor.
Used Equipment Facts About This Machine
Manufacturer Info:
Brand: Ametek / Tolhurst
Type: Center-Slung Perforated Basket Centrifuge
Construction: Rubber-lined product contact areas
Motor: 2 HP, 3 Phase, 60 Hz, 440 Volt, Explosion-Proof, 1700 RPM
Suspension: Tripod system
Product Description:
The Ametek/Tolhurst Center-Slung 26" x 12" Perforated Basket Centrifuge is a compact, rugged solid-liquid separation system, ideal for chemical and slurry processing where corrosion resistance and containment are critical. With rubber-lined product-contact surfaces, this unit is well-suited for abrasive or chemically aggressive materials. It features a top load/unload configuration, operating at 1200 or 600 RPM, and includes a tripod suspension system for vibration control. A PVC feed pipe, integrated rinse pipe with nozzles, and a top cover with inspection door and sightglass allow for efficient operation and easy process monitoring. Driven by a 2 HP, explosion-proof motor, this centrifuge is well-suited for hazardous or classified environments.
Key Specifications:
Basket Size: 26" diameter x 12" depth
Basket Rating: 96 lbs per cubic foot material density
Max Bowl Speeds: 1200 RPM and 600 RPM
Product Contact Surfaces: Rubber lined
Loading/Unloading: Top load / top discharge
Feed: PVC feed pipe
Rinse System: Internal rinse pipe with spray nozzles
Cover Features: Hinged inspection door with sightglass
Motor: 2 HP, 3 Phase, 60 Hz, 440V, 1700 RPM, Explosion-Proof
Suspension: Tripod mounting for reduced vibration
Applications:
Corrosive chemical slurry dewatering
Pharmaceutical wet cake discharge
Explosives and hazardous material processing
Paints, pigments, and dye recovery
Rubber or latex compound separation
Solvent-wetted solid drying
Agricultural extract or pulp separation
Battery or energy material solids isolation
Waste processing with volatile substances
Pilot plant separation systems
What Might This Be Used For?
This centrifuge is ideal for handling aggressive chemical slurries and solvent-laden materials in hazardous environments. Its rubber lining and explosion-proof motor make it suitable for applications requiring corrosion resistance and safe operation, such as in chemical, paint, dye, and explosives processing industries.
