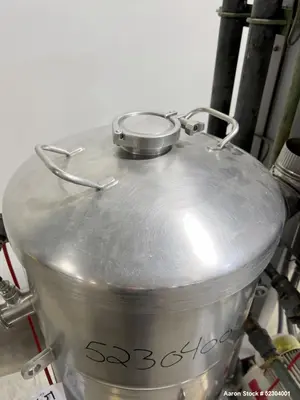

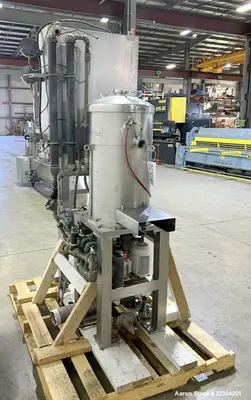

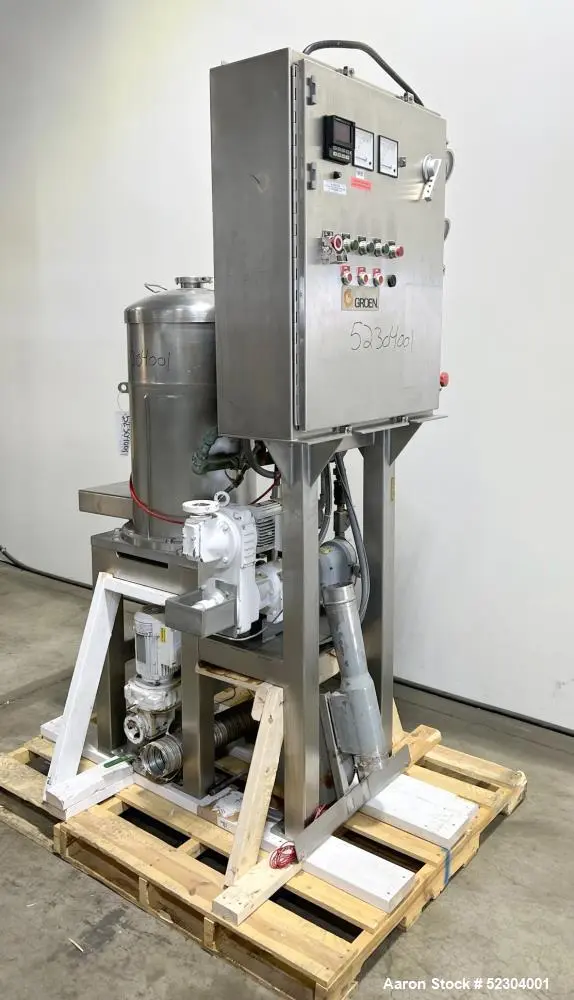

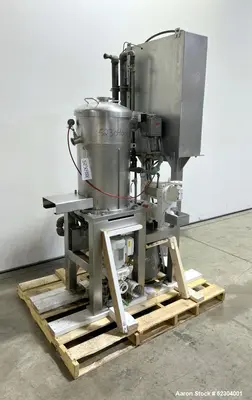

Used Groen Scraped Surface Heat Exchanger/ Evaporator, Model DR 1218, 304 Stainless Steel. Approximate heat surface area 9.5 square feet. Approximate 12" diameter x 18" long, with (3) scrapers. Internal rated 120 psi at 353 degrees F. Cover with 2-3/4" opening, 2" diameter outlet. Bottom driven by a 1hp, 3/60/230/460 volt, 1700rpm motor through a reducer. Includes a Waukesha size 3 pump, driven by a .75hp 3/60/230/460 volt, 1100rpm motor through reducer. Includes blower, and mounted control panel. Mounted on a stainless steel frame. Serial & National Board# 131204
Used Equipment Facts About This Machine
Brand: Groen
Model: DR 1218
Condition: Used

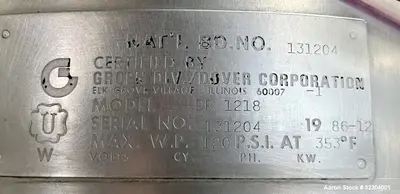

Serial & National Board Number: 131204
Description

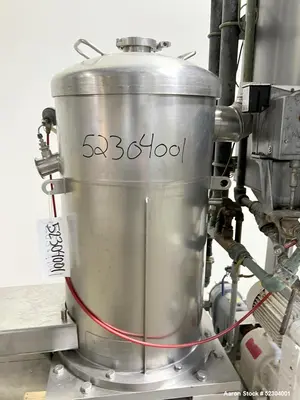

This Groen Scraped Surface Heat Exchanger / Evaporator is designed for efficient heat transfer in viscous and heat-sensitive applications. Constructed from 304 stainless steel, it offers 9.5 square feet of heat transfer surface area with a 12" diameter x 18" long chamber. It features three scrapers for continuous product agitation, preventing buildup and ensuring uniform heat distribution. The internal chamber is rated for 120 psi at 353°F.
The system includes:

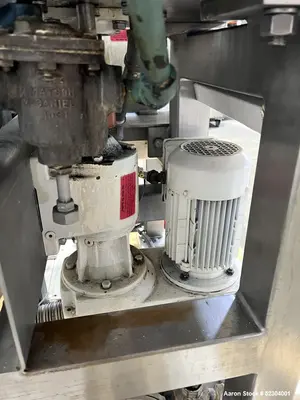

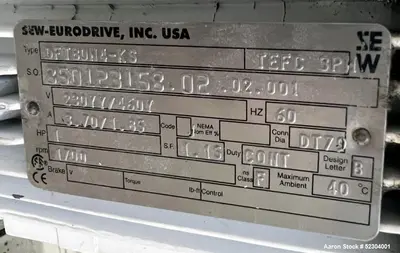

Bottom-drive mechanism: 1 HP motor (3-phase, 60 Hz, 230/460V, 1700 RPM) with reducer

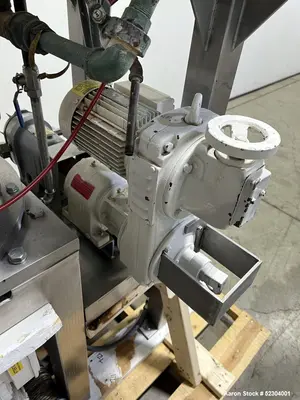

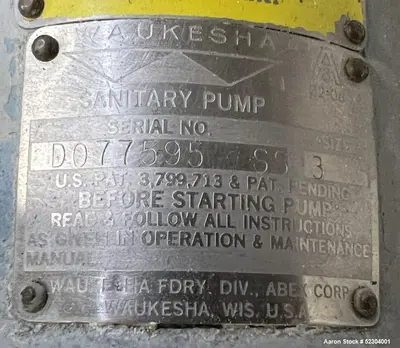

Waukesha size 3 pump: 0.75 HP motor (3-phase, 60 Hz, 230/460V, 1100 RPM) with reducer

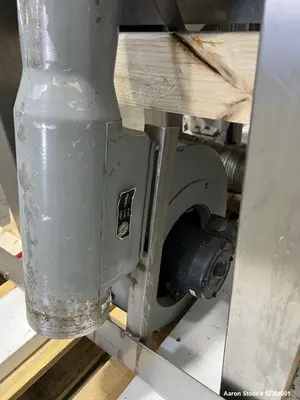

Blower system for process optimization

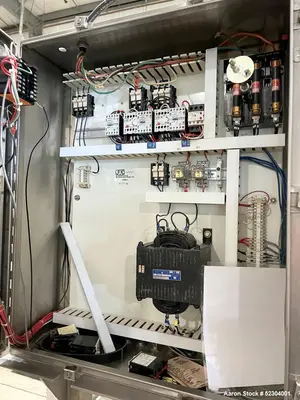

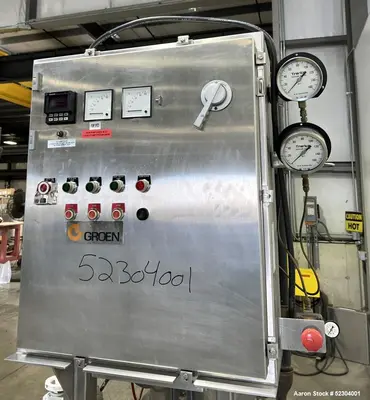

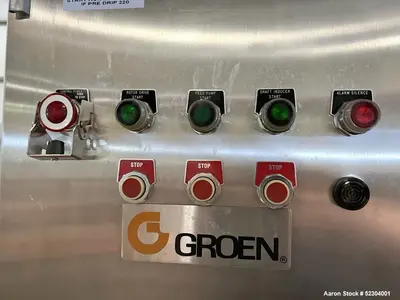

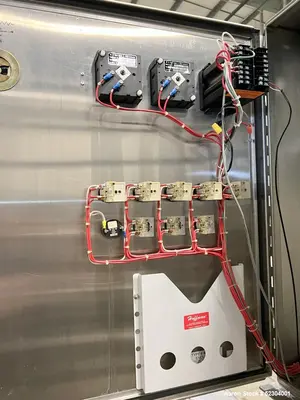

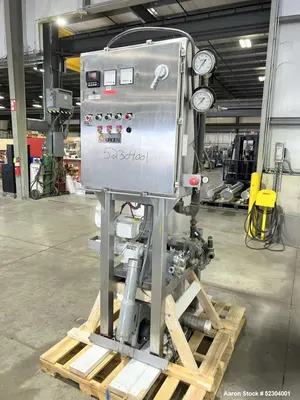

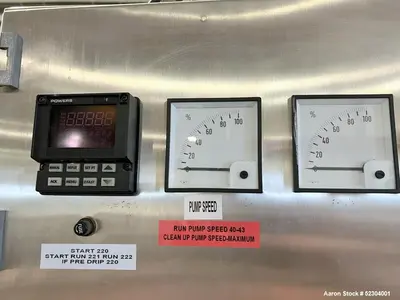

Mounted control panel for integrated operation
Stainless steel frame for durability and stability
Specifications
Material: 304 Stainless Steel
Heat Transfer Surface Area: 9.5 ft²
Chamber Dimensions: 12" diameter x 18" length
Pressure Rating: 120 psi
Temperature Rating: Up to 353°F

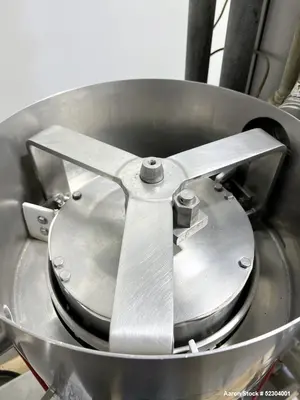

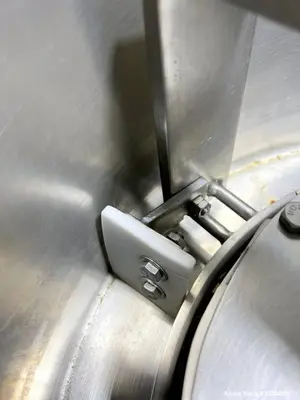

Scrapers: 3 for continuous heat exchange
Inlet/Outlet Openings:
Cover Opening: 2-¾"
Outlet: 2" diameter
Motor & Drive System:
Main Drive: 1 HP, 1700 RPM, 3/60/230/460V, with reducer
Waukesha Pump: 0.75 HP, 1100 RPM, 3/60/230/460V, with reducer
Additional Features:
Includes blower system
Integrated control panel
Mounted on a stainless steel frame
Applications
Food Processing: Dairy, confectionery, sauces, purees
Pharmaceutical Industry: Creams, gels, emulsions
Chemical Processing: High-viscosity fluids, polymer processing
Cosmetic & Personal Care: Lotions, creams, and pastes
Evaporation Systems: Concentration of heat-sensitive materials
Compatible Products
Dairy and food processing lines
Viscous liquid handling systems
Evaporation and concentration processes
Pharmaceutical and cosmetic production units
