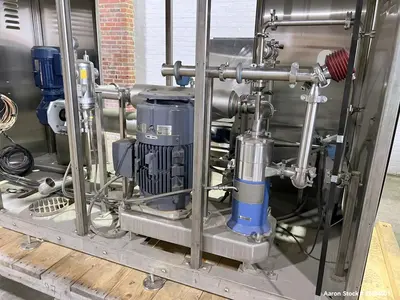

Unused- IKA Works Dispax-Reactor / 3 Stage High Shear Inline Dispersing Machine / System, Model DR-2000/10. 316 Stainless Steel. Maximum flow rate 35 gpm (8,000 liter). Approximate 30hp, 3/60/460 volt, 3525 rpm motor. Tip speed approximately 23 m/s (4500 fpm). Maximum process pressure 16 bar, maximum process temperature 160 degrees C. 2" Inlet/outlet. Stainless steel. Includes Seepex BCSB, size 17 closed pin food pump, driven by a 7.5kW, 3/60/230/460 volt, 1740rpm motor. (2) Micro Motion F series mass flow sensors, 1/4hp pump, interconnecting piping. Control panel with Automation direct HMI and Allen Bradley micrologix 1500 PLC, Lenze AC tech drives. On unitized base. Last used for cosmetics, but hardly used, maybe only validated.
Used Equipment Facts About This Machine
Industrial Unused - IKA Works Dispax-Reactor DR-2000/10 High Shear Inline Dispersing Machine
Manufacturer Information:
Manufacturer: IKA Works
Model: Dispax-Reactor DR-2000/10
Condition: Unused (Previously Validated for Coty Cosmetics)
Specifications:
Type: 3-Stage High Shear Inline Dispersing Machine
Material: 316 Stainless Steel
Maximum Flow Rate: 35 GPM (8,000 Liters/Hour)
Motor Specifications:
Power: 30 HP
Voltage: 3 Phase, 60 Hz, 460V
Speed: 3,525 RPM
Tip Speed: Approx. 23 m/s (4,500 FPM)
Process Capabilities:
Maximum Process Pressure: 16 Bar (232 PSI)
Maximum Process Temperature: 160°C (320°F)
Inlet/Outlet Size: 2" Stainless Steel Connections
Additional System Components:
Seepex BCSB Size 17 Closed Pin Food Pump:
Motor Power: 7.5 kW (10 HP)
Voltage: 3 Phase, 60 Hz, 230/460V
Speed: 1,740 RPM
Flow Sensors: (2) Micro Motion F-Series Mass Flow Sensors
Additional Pumps: 1/4 HP Pump
Control & Automation System:

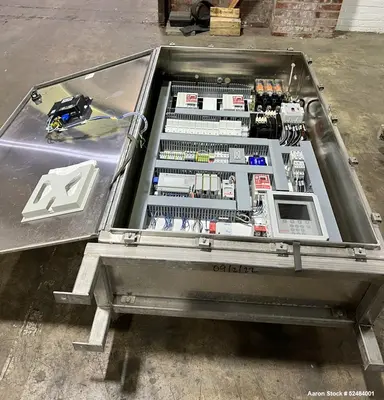

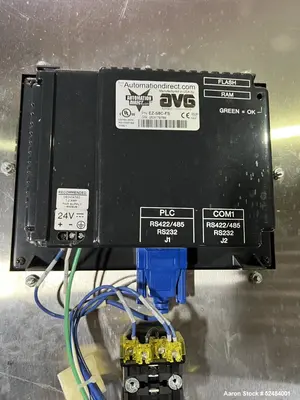

Control Panel with Automation Direct HMI
Allen Bradley MicroLogix 1500 PLC
Lenze AC Tech Drives
Mounting: Unitized Base with Interconnecting Piping
Applications:
Cosmetics & Personal Care: High-shear emulsification for creams, lotions, and serums
Pharmaceutical Processing: Dispersion of active pharmaceutical ingredients (APIs) and excipients
Food & Beverage Industry: Mixing, emulsifying, and homogenizing sauces, dressings, and dairy products
Chemical Processing: High-efficiency blending of polymers, adhesives, and specialty chemicals
Paints & Coatings: Dispersion and milling of pigments and resin-based products
Nutraceuticals & Supplements: Homogenizing vitamin suspensions, extracts, and liquid formulations
Oil & Petrochemical Industry: High-shear mixing for lubricants, fuels, and additives
