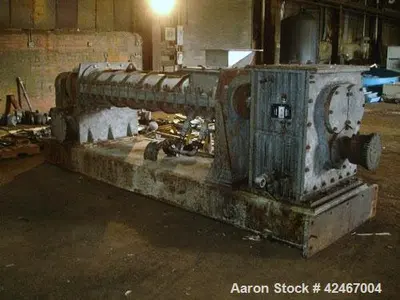

Used Teledyne Readco Continuous Compounder Processor. Size approximately 28" diameter x 97" long barrel, Each screw is approx. 14" Diameter. stainless steel contact parts, non-jacketed. 15" x 26" feed section. 6" x 26" discharge section driven by a 125 HP Westinghouse electric motor 3/60/230/460 Volt, 1780 RPM, Dodge TXM gearbox ratio 20.55:1, final output 85 RPM. Includes a removable top cover.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Teledyne Readco
Type: Continuous Compounder Processor
Construction: Stainless Steel Contact Parts
Description:
This used Teledyne Readco Continuous Compounder Processor is a high-performance processing system, designed for continuous mixing, blending, and compounding of materials in plastic, chemical, food, and pharmaceutical applications.
The system features a 28” diameter x 97” long barrel with two screws, each approximately 14” in diameter, ensuring efficient material processing. It is non-jacketed and includes a removable top cover for easy maintenance and monitoring.

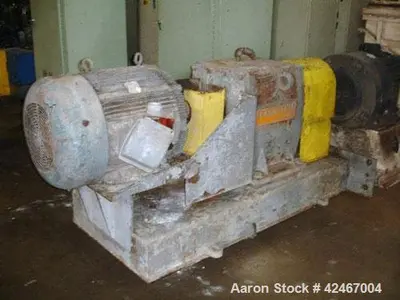

Powered by a 125 HP Westinghouse electric motor (3/60/230/460V, 1780 RPM), this compounder is equipped with a Dodge TXM gearbox (20.55:1 ratio, final output 85 RPM) for precise speed control and consistent material flow.
Key Features:
28” Diameter x 97” Long Barrel for high-capacity processing
Dual Screws (Each 14” Diameter) for efficient material blending
15” x 26” Feed Section for smooth material introduction
6” x 26” Discharge Section for controlled output
125 HP Westinghouse Motor (3/60/230/460V, 1780 RPM)
Dodge TXM Gearbox (20.55:1 Ratio, 85 RPM Final Output)
Removable Top Cover for easy maintenance and monitoring
Specifications:
Machine Type: Continuous Compounder Processor
Barrel Dimensions: 28” Diameter x 97” Long
Screw Size: (2) Approx. 14” Diameter Screws
Feed Section: 15” x 26”
Discharge Section: 6” x 26”
Motor: 125 HP Westinghouse, 3/60/230/460V, 1780 RPM
Gearbox: Dodge TXM, 20.55:1 Ratio, 85 RPM Output
Material: Stainless Steel Contact Parts
Jacketed: No (Non-Jacketed)
Top Cover: Removable
Applications:
Plastic & Polymer Processing – Compounding of resins, additives, and colorants
Chemical Processing – Continuous mixing of adhesives, sealants, and specialty chemicals
Food Processing – Blending of dough, powders, and food-grade formulations
Pharmaceutical & Biotech – Mixing of active ingredients, excipients, and granulations
Industrial & Coatings – Formulation of paints, coatings, and high-viscosity products
What Products Would This Be Used For?
Polymer and resin compounding
Food and pharmaceutical ingredient blending
Chemical and adhesive formulation
Plastic processing and additive dispersion
Continuous industrial mixing applications
