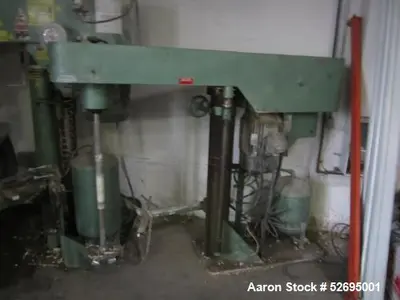

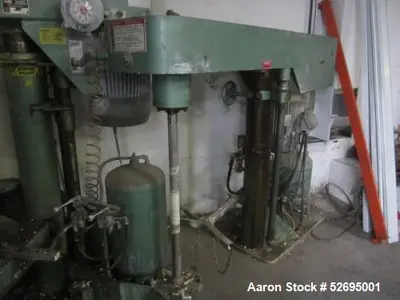

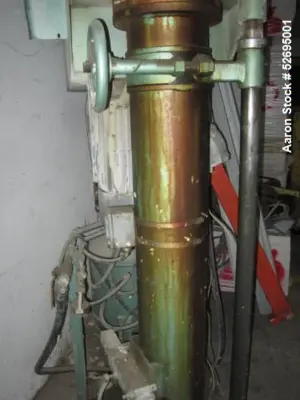

Used Myers Engineering Single Shaft Disperser, Model 800A-30. 2-1/4" diameter x 46" long 304 stainless steel shaft with a 14" diameter 304 stainless steel saw tooth blade. 360 Degree rotation. Air over oil lift with an approximate 48" rise, overall raised height approx 122''. Manually adjustable speed range. Driven by a 30 hp, 3/60/480 volt, 1760 rpm XP motor. Base mounted. Includes approx 450 gal carbon steel mixing can. Can measures 48" dia x 56" straight side. Distance of mixer blade to ground is 8".
Used Equipment Facts About This Machine
Used - Myers Engineering Single Shaft Disperser, Model 800A-30
30 HP | 14" Saw Tooth Blade | 450 Gallon Can | Air Over Oil Lift
Overview
This Used Myers Engineering Single Shaft Disperser, Model 800A-30, is a robust, industrial-grade disperser designed for mixing and dispersion of high-viscosity materials. Featuring a 2-1/4" diameter x 46" long 304 stainless steel shaft and a 14" diameter saw tooth disperser blade, it ensures efficient shear and mixing action for a variety of applications. The air over oil lift provides an approximate 48" rise, with a 360-degree rotation for easy positioning. Driven by a 30 HP explosion-proof motor, this unit is base mounted and includes a 450-gallon carbon steel mixing can.
Key Specifications
Manufacturer: Myers Engineering

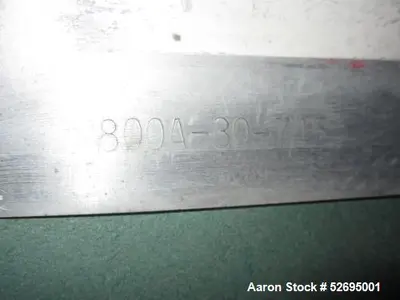

Model: 800A-30
Shaft: 2-1/4" Diameter x 46" Long, 304 Stainless Steel

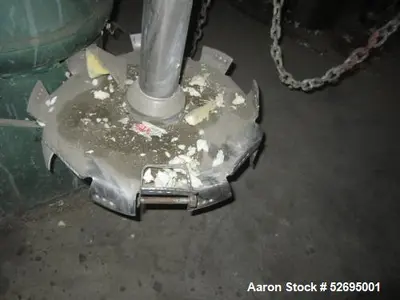

Blade: 14" Diameter Saw Tooth, 304 Stainless Steel

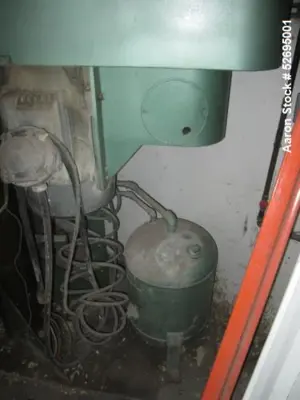

Lift System: Air Over Oil with Approx. 48" Rise
Maximum Raised Height: Approx. 122"
Rotation: 360 Degrees
Speed Range: Manually Adjustable

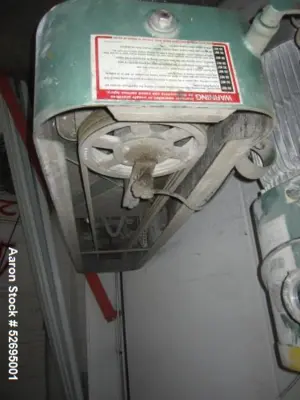

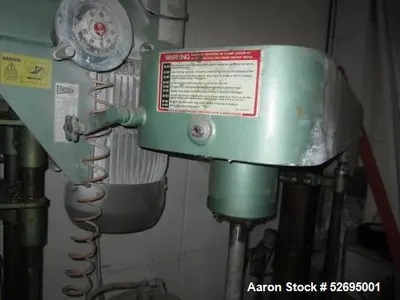

Main Drive Motor:
30 HP
3 Phase / 60 Hz / 480 Volt
1760 RPM
Explosion Proof (XP)
Mounting: Base Mounted

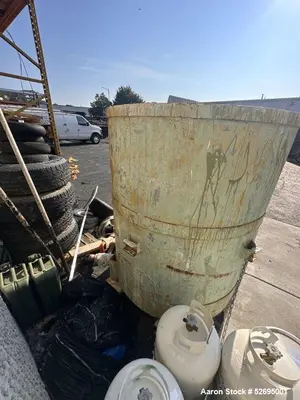

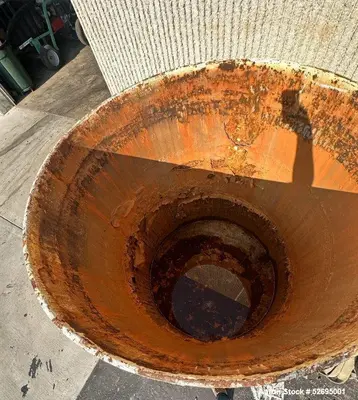

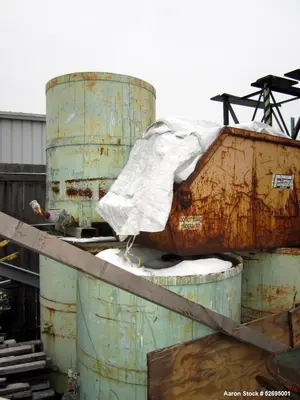

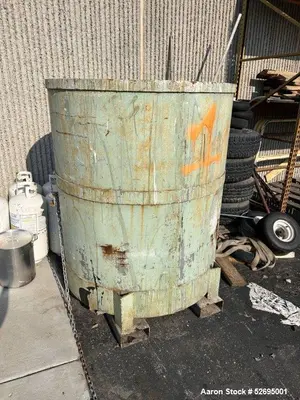

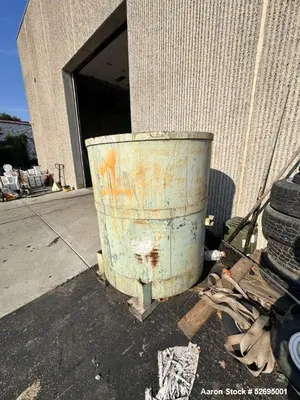

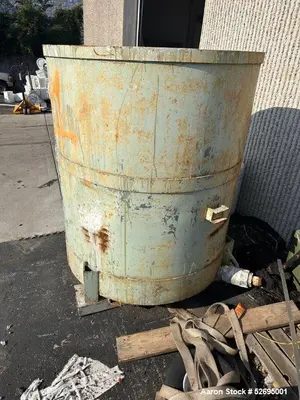

Mixing Can:
Capacity: Approx. 450 Gallons
Material: Carbon Steel
Dimensions: 48" Diameter x 56" Straight Side
Blade Clearance from Ground: 8"
Features & Benefits
Heavy-Duty Disperser – Engineered for industrial mixing and dispersing of medium to high viscosity materials
High Shear Blade – 14" saw tooth disperser blade designed for effective material breakdown and homogenization
Versatile Lift System – Air over oil hydraulic lift provides smooth and controlled vertical movement with a 48" rise
Full Rotation Capability – 360-degree rotation offers easy maneuvering and flexibility in operation
Explosion-Proof Motor – 30 HP XP motor suitable for hazardous environments
Large Batch Capacity – Includes 450-gallon carbon steel mixing vessel for substantial production volumes
Manually Adjustable Speed – Offers control over mixing speed to suit various applications
Applications
Paints & Coatings
Adhesives & Sealants
Inks & Pigments
Chemical Processing
Cosmetic Creams & Gels
Pharmaceutical Products
Resins & Polymers
Industries Served
Paint & Coatings Industry
Chemical Manufacturing
Pharmaceuticals & Nutraceuticals
Cosmetics & Personal Care
Adhesives & Sealants
Industrial Materials Processing
