Used J.H. Day Mark II Nauta Mixer, Approximate 115 Cubic Feet Working Capacity, 304 Stainless Steel. Approximate 72" diameter x 130" non-jacketed cone height. Bolt on top cover with openings. Approximate 14" diameter screw with pintle bearing support, driven by a 15hp, 3/60/230/460 volt, 1750 rpm motor thru a gearbox, arm driven by a 2hp, 3/60/230/460 volt, 1730 rpm motor. 8" Side bottom outlet. Mounted on (4) carbon steel side lugs. Serial# 88402.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: J.H. Day
Model: Mark II Nauta Mixer
Type: Conical Screw Mixer (Vertical Nauta Blender)
Serial #: 88402
Construction: 304 Stainless Steel (product contact)
Condition: Used
Product Description:
Used J.H. Day Mark II Nauta Mixer with an approximate 115 cubic foot working capacity. Features a 304 stainless steel conical body with a 72" diameter and 130" tall cone (non-jacketed). Equipped with a bolt-on top cover featuring multiple access openings. Mixing is achieved via an approximately 14" diameter screw supported by a pintle bearing and driven by a 15 HP, 1750 RPM motor through a gearbox. The mixing arm is driven by a 2 HP, 1730 RPM motor. Includes an 8" side bottom outlet for efficient discharge. The unit is mounted on four carbon steel side lugs for structural support.
Technical Specifications:
Working Capacity: Approx. 115 cu ft
Construction Material: 304 Stainless Steel
Vessel Dimensions: Approx. 72" diameter x 130" cone height

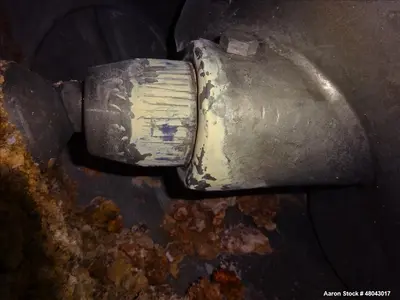

Screw Size: Approx. 14" diameter with pintle bearing

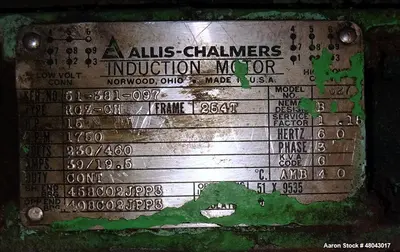

Screw Drive Motor: 15 HP, 3/60/230/460V, 1750 RPM
Arm Drive Motor: 2 HP, 3/60/230/460V, 1730 RPM
Discharge Outlet: 8" side bottom outlet
Mounting: (4) Carbon steel side lugs
Top Cover: Bolt-on with access openings
Jacketed: No
What Might This Be Used For:
Mixing of powders and granules in food or pharmaceutical production
Blending dry chemical formulations
Homogenizing cohesive or friable materials
Nutraceutical powder mixing and batch blending
Pigment and dye powder blending
Powder coating base mixing
Construction material blending (e.g. lightweight fillers)
Pre-processing dry ingredients before extrusion or compaction
Plastics and resin additive blending
High-capacity batch mixing in specialty materials industries
