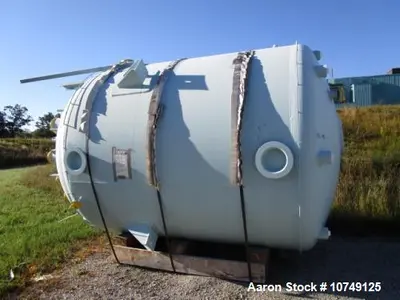

Unused/Reglassed- Pfaulder 5000 Gallon Type KC108-5000-90-125 Glass Lined Reactor Body. 108" Diameter x 92" Tangent Line to Tangent Line. Shell Rated 90 PSI/FV at 450 Degrees F. Jacket Rated 125 PSI/FV at 450 Degrees F. Side Lug Supports.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Pfaudler
Model: KC108-5000-90-125
Capacity: 5000 Gallons
Condition: Unused / Reglassed
Description:
The Pfaudler 5000 Gallon Type KC108-5000-90-125 Glass-Lined Reactor Body is an industrial-grade chemical reactor, designed for high-performance processing in corrosive and high-temperature environments. Featuring a glass-lined interior, this reactor ensures chemical resistance and durability, making it ideal for pharmaceutical, chemical, and industrial applications.
With a 108” diameter and 92” tangent-to-tangent height, this unit provides ample processing volume. The shell is rated for 90 PSI/FV at 450°F, while the jacket is rated for 125 PSI/FV at 450°F, ensuring high-pressure operation and heat transfer efficiency. The reactor is supported by side lugs for secure mounting.
This unit is unused and reglassed, ensuring like-new performance and extended service life.
Specifications:
Model: KC108-5000-90-125
Capacity: 5000 Gallons
Material: Glass-Lined Steel
Diameter: 108”
Height (Tangent to Tangent): 92”
Shell Rating: 90 PSI/FV at 450°F
Jacket Rating: 125 PSI/FV at 450°F
Support Type: Side Lug Supports
Condition: Unused / Reglassed
Applications:
The Pfaudler 5000 Gallon Glass-Lined Reactor is ideal for:
Chemical Processing & Synthesis
Pharmaceutical Production
Petrochemical & Specialty Chemicals
API (Active Pharmaceutical Ingredient) Manufacturing
High-Temperature & Corrosive Reaction Applications
What Products Would This Be Used For?
Acidic and alkaline chemical processing
Pharmaceutical ingredient synthesis
High-temperature polymerization reactions
Solvent-based reactions and mixing
Petrochemical and specialty chemical manufacturing
