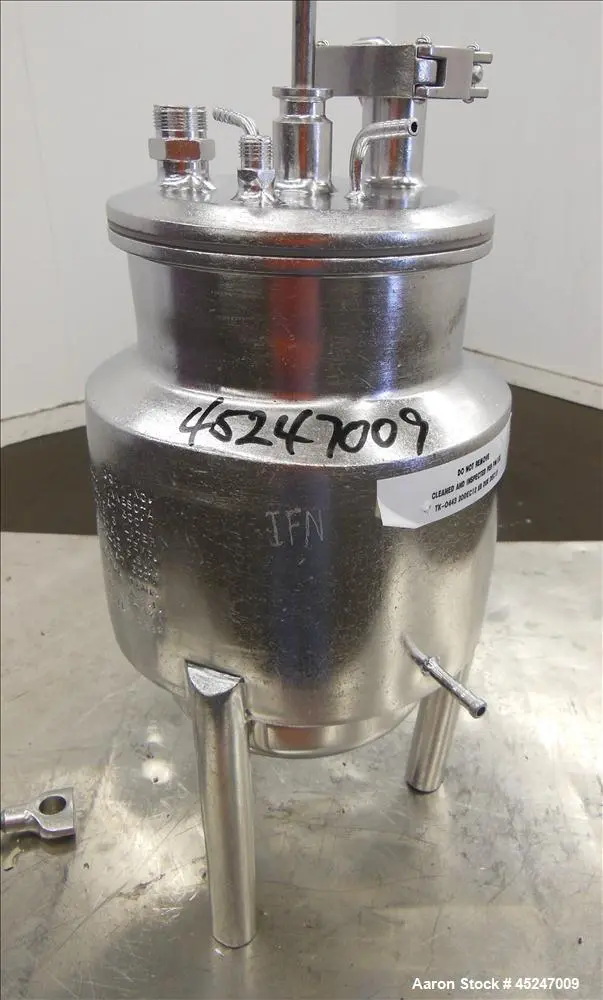

Used 316 Stainless Steel Vertical DCI Reactor, 3 Liter (0.79 Gallon). 6" Diameter x 8" straight side, flat tri-clamp top, dished bottom. Internal rated +40/-15 psi at -20 to 300 degrees F, jacket rated +10/-15 psi at -20 to 300 degrees F. Openings: top 3/4", 5/8", 5/16", 1" tri-clamp; 1/4" center bottom outlet. Mounted on 3 stainless steel legs. Serial #92-PH-44821-A/B, built 1992.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Description:
This DCI 3-liter stainless steel reactor is designed for small-batch precision processing, making it ideal for pharmaceutical, chemical, and laboratory applications. Constructed from 316 stainless steel, the reactor offers excellent corrosion resistance, making it suitable for high-purity processing environments.
The reactor features a 6” diameter and 8” straight-side height, with a flat tri-clamp top and a dished bottom for optimized fluid movement and pressure containment. It is internally rated for +40 PSI / -15 PSI at -20°F to 300°F, making it ideal for vacuum and pressurized reactions. The stainless steel jacket is rated for +10 PSI / -15 PSI at -20°F to 300°F, allowing for precise temperature control during reactions.
This unit is mounted on three stainless steel legs, ensuring stability and ease of integration into laboratory or production setups.
Specifications:
Capacity: 3 Liters (0.79 Gallons)
Material: 316 Stainless Steel
Orientation: Vertical
Dimensions:
Diameter: 6"
Straight-Side Height: 8"
Top Configuration: Flat Tri-Clamp
Bottom Configuration: Dished
Pressure Ratings:
Internal: +40 PSI / -15 PSI at -20°F to 300°F
Jacket: +10 PSI / -15 PSI at -20°F to 300°F
Openings:
Top: 3/4", 5/8", 5/16", 1" Tri-Clamp
Bottom Outlet: 1/4" Center Bottom
Mounting: Three Stainless Steel Legs
Condition: Used (Built in 1992, Serial #92-PH-44821-A/B)
Applications:
This laboratory-scale reactor is ideal for precision-controlled reactions across multiple industries, including:
Pharmaceutical & Biotech Research – API synthesis, small-scale formulation, and process development
Chemical Processing – Specialty chemical reactions, catalyst testing, and R&D applications
Food & Beverage Development – Small-batch ingredient testing and formulation research
Cosmetic & Personal Care – R&D and blending of lotions, creams, and emulsions
Petrochemical & Lubricants – Processing specialty oils, waxes, and lubricants
Adhesives, Coatings & Paints – Small-batch production of resins, coatings, and adhesives
Plastics & Polymer Research – Pilot-scale polymerization reactions
Laboratory & Research Applications – Precision-controlled chemical and material research
What Products Would This Be Used For?
This stainless steel reactor is suitable for processing:
Active pharmaceutical ingredients (APIs)
Specialty chemicals and catalysts
Cosmetic formulations and personal care products
Food additives, flavor extracts, and emulsions
High-purity oils, waxes, and lubricants
Adhesives, resins, and coatings
Polymers and chemical blends
Laboratory and pilot-scale reaction studies
