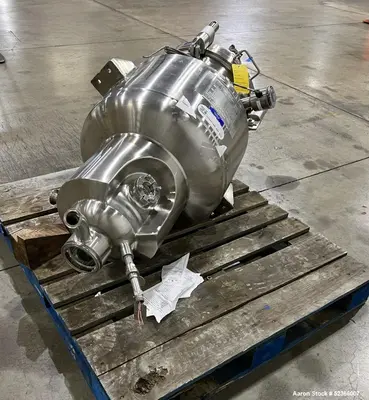

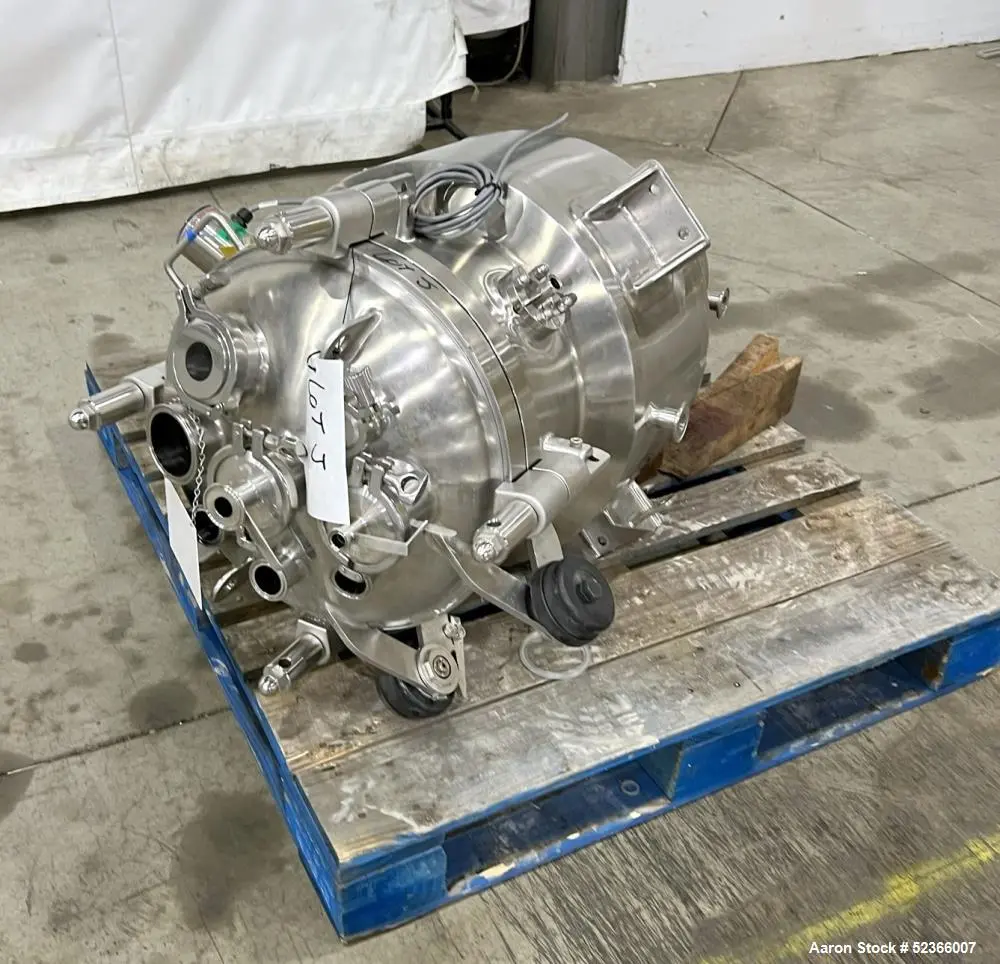

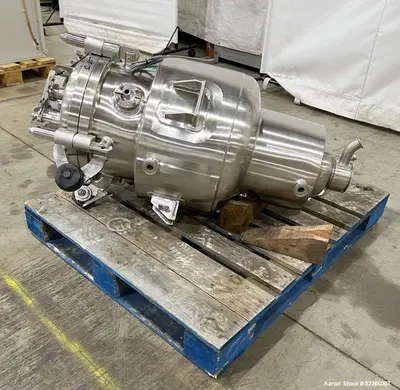

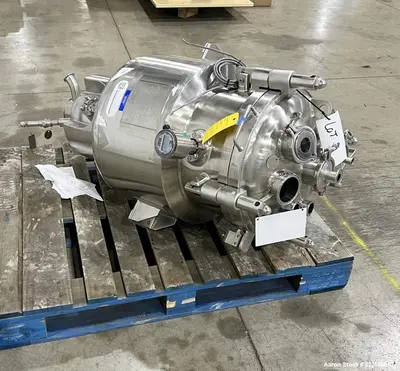

Used Precision Stainless Reactor, 60 Liter capacity, 316L Stainless Steel, Vertical. Approximately 16" upper diameter, 8" lower diameter x 18" straight side. Dished top and bottom. Internal rated 45psi at -20 to 356 degrees F, 316L stainless steel jacket rated 90psi at -20 to 356 degrees F. Clamp down top cover, openings top: (4) 3", (4) 1-1/2", 2" center bottom outlet, 1-1/2" side bottom outlet. Includes spray ball. Provision for bottom agitator, missing motor. Side lug mounted. Serial# PJS0010007, National Board# 974, built 2011.
Used Equipment Facts About This Machine
🏭 Manufacturer & Design Info
Manufacturer: Precision Stainless
Design Type: Vertical, Jacketed Reactor
Capacity: 60 Liters (Approx. 15.85 Gallons)
Material of Construction: 316L Stainless Steel
Orientation: Vertical, side-lug mounted
Condition: Used (Agitator motor missing)
Description
This used 60-liter reactor is engineered for small-scale processing and laboratory applications. The vertical design features a dished top and bottom for optimal mixing and heat transfer, with an upper diameter of approximately 16" and a lower diameter of about 8", along with an 18" straight side. It is internally rated at 45 psi for temperatures ranging from -20°F to 356°F, while its stainless steel jacket is rated at 90 psi under the same conditions. The reactor includes a clamp-down top cover with multiple access openings—four 3" openings and four 1-1/2" openings—for versatile connectivity. Additional discharge options are provided by a 2" center bottom outlet and a 1-1/2" side bottom outlet. A spray ball is included for cleaning or process applications, and there is a provision for a bottom agitator (motor missing). The unit is securely side lug mounted for stability.
Specifications
Capacity: 60 Liters
Material: 316L Stainless Steel
Design: Vertical reactor with dished top and bottom
Dimensions:
Upper Diameter: ~16"
Lower Diameter: ~8"
Straight Side: 18"
Pressure Ratings:
Internal: 45 psi at -20°F to 356°F
Jacket: 90 psi at -20°F to 356°F

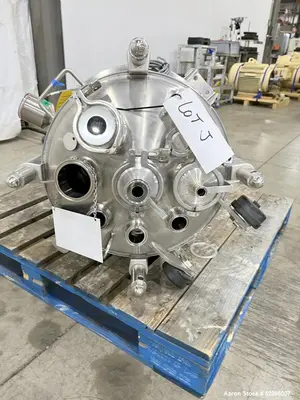

Top Cover: Clamp-down design with:
(4) 3" openings
(4) 1-1/2" openings
Outlets:
2" center bottom outlet
1-1/2" side bottom outlet
Additional Features:

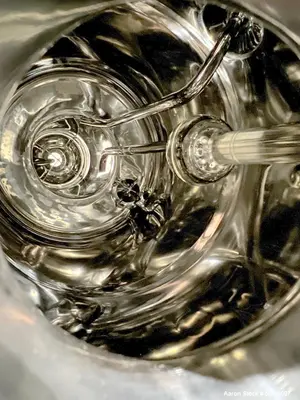

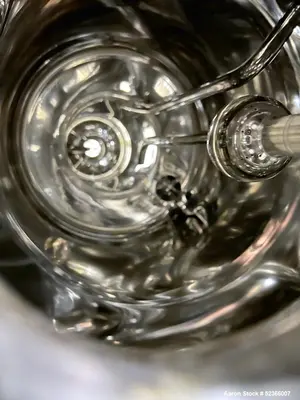

Includes spray ball
Provision for bottom agitator (motor missing)
Side lug mounted

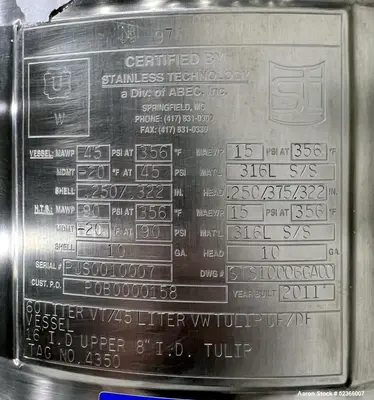

Serial Number: PJS0010007
National Board Number: 974
Year Built: 2011
Applications
This reactor is ideal for:
Laboratory-scale chemical reactions
Pilot plant operations
Bioprocessing and fermentation studies
Pharmaceutical and fine chemical production
Research and development in various industries
What Products Would This Be Used For
Small-scale chemical synthesis
Biopharmaceutical intermediates
Specialty chemicals
Fermentation and cell culture processes
Laboratory research applications
🧪 Applications
Pharmaceutical formulation
Biotech culture or media prep
Nutraceuticals blending
Specialty chemical synthesis
Pilot-scale R&D processing
Cosmetic and personal care batch mixing
Food and beverage ingredient holding
Heating and cooling jacketed reactions
Batch distillation setup
CIP system integration with spray ball
🎯 Products Typically Processed
Active pharmaceutical ingredients (APIs)
Liquid herbal extracts
Nutritional blends
Microbial culture media
Emulsions and suspensions
Essential oil dilutions
Cleaning chemical concentrates
Laboratory or pilot-scale formulas
Syrups and liquid supplements
Bioreactor media
