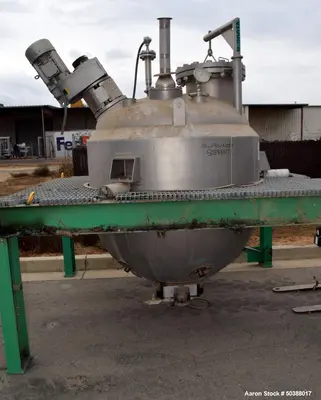

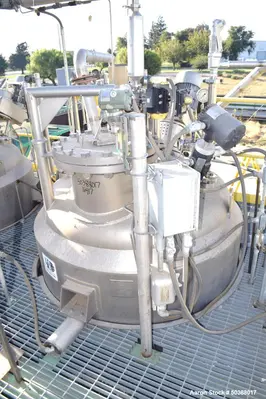

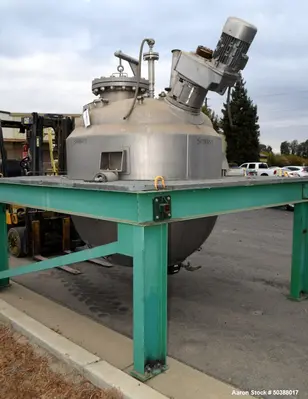

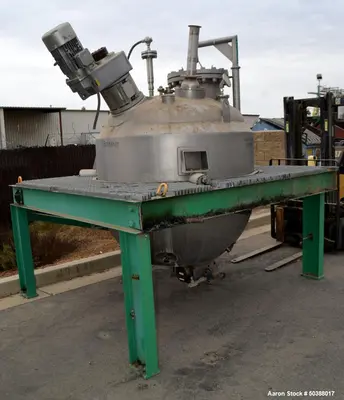

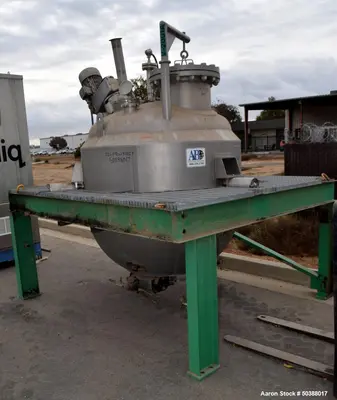

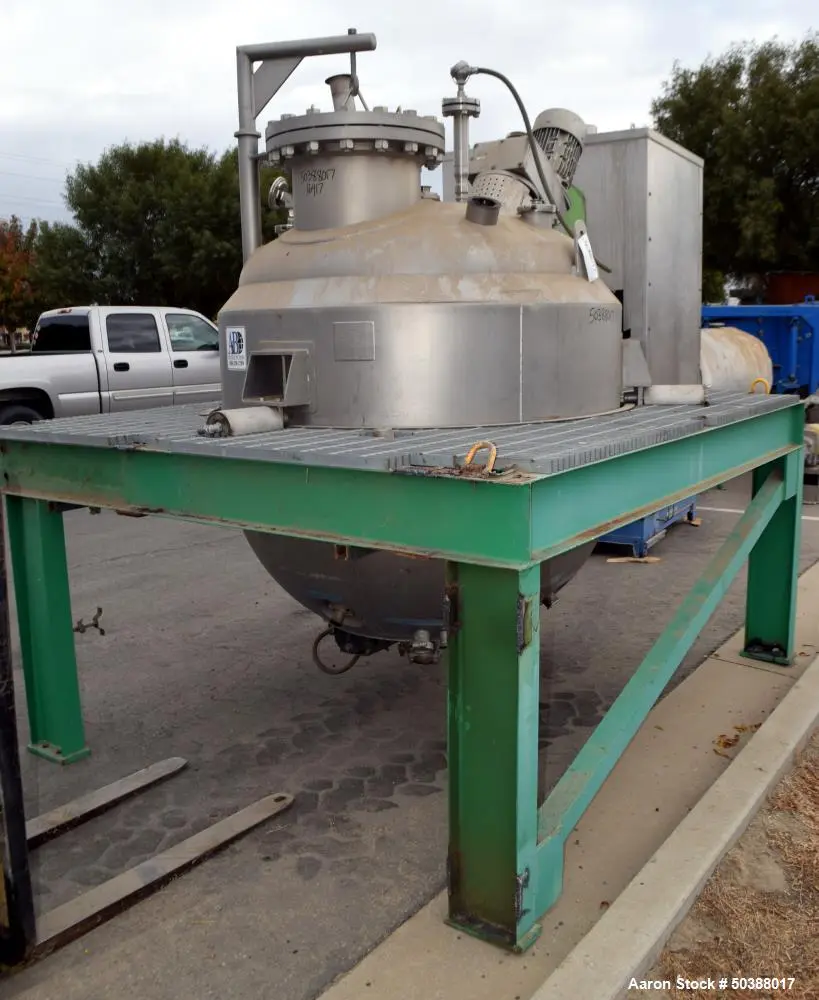

Used A&B Process Systems Reactor. Approximate 400 Gallon, 304L Stainless Steel, Vertical. 54" Diameter x 24" straight side, Dished top, jacketed hemispherical bottom. Internal rated 150 psi at -20 to 425 degrees F. 304L stainless steel jacket rated 150 psi at -20 to 425 degrees F. Off center top entering angled anchor agitator with scrapers, driven by a 10 hp, 3/60/230/460 volt, 1770 rpm gear motor, ratio 40.80 to 1. Openings top: 18" man way with davit arm cover. 4" Center bottom outlet. Mounted on (3) side lugs. Serial # 1118160301B. National Board #1606. Built 2012.
Used Equipment Facts About This Machine
Manufacturer: A&B Process SystemsCapacity: Approx. 400 GallonsMaterial: 304L Stainless SteelYear Built: 2012Condition: Used
Description:
This A&B Process Systems 400 Gallon Reactor is a high-quality stainless steel processing vessel designed for chemical, pharmaceutical, and food applications. Constructed from 304L stainless steel, it features a vertical design with a 54" diameter and 24" straight side. The vessel has a dished top and a jacketed hemispherical bottom, both rated for 150 PSI at -20°F to 425°F. It is equipped with an off-center, top-entering angled anchor agitator with scrapers, driven by a 10 HP gear motor with a 40.80:1 ratio. The top includes an 18" manway with a davit arm cover, while the center bottom features a 4" outlet. The unit is mounted on three side lugs for secure installation.
Specifications:
Capacity: Approx. 400 Gallons
Material: 304L Stainless Steel
Design: Vertical
Dimensions: 54" Diameter x 24" Straight Side
Top: Dished
Bottom: Jacketed hemispherical bottom
Internal Pressure Rating: 150 PSI @ -20°F to 425°F
Jacket Pressure Rating: 150 PSI @ -20°F to 425°F
Agitator:

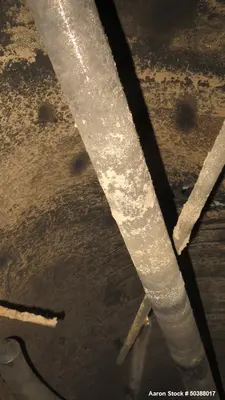

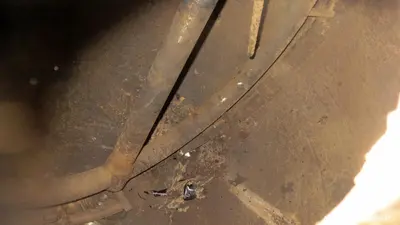

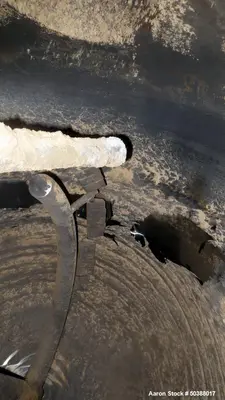

Off-center top-entering angled anchor agitator with scrapers

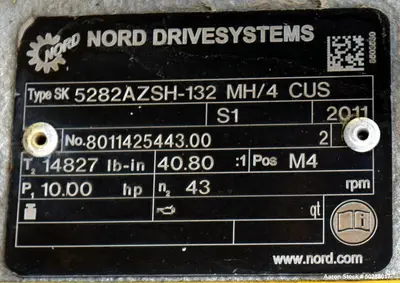

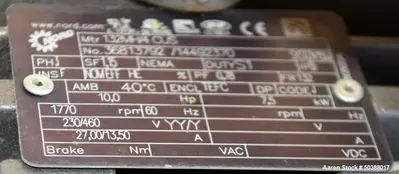

Driven by 10 HP, 3/60/230/460 Volt, 1770 RPM gear motor
Gear ratio: 40.80:1
Top Openings:
18" manway with davit arm cover
Outlet:

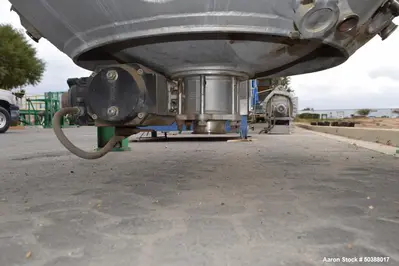

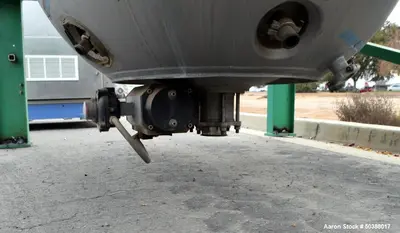

4" center bottom outlet
Mounting: On (3) side lugs

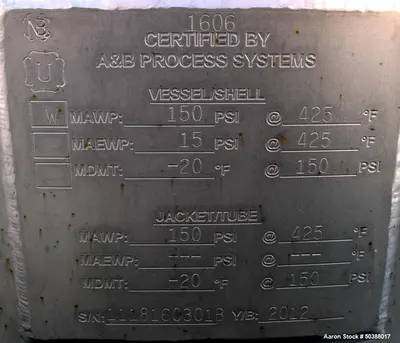

Certifications:
National Board #: 1606
Serial #: 1118160301B
Condition: Used
Applications:
Chemical reaction and processing
Pharmaceutical formulation and mixing
Food and beverage ingredient processing
Cosmetic and personal care product blending
Industrial liquid processing and heat transfer
Common Uses in Industries:
Chemical Processing – controlled reactions and blending
Pharmaceutical – formulation and compounding of medications
Food & Beverage – mixing and heating of ingredients
Cosmetics & Personal Care – processing of creams, gels, and lotions
Industrial Manufacturing – liquid processing requiring agitation and heating
