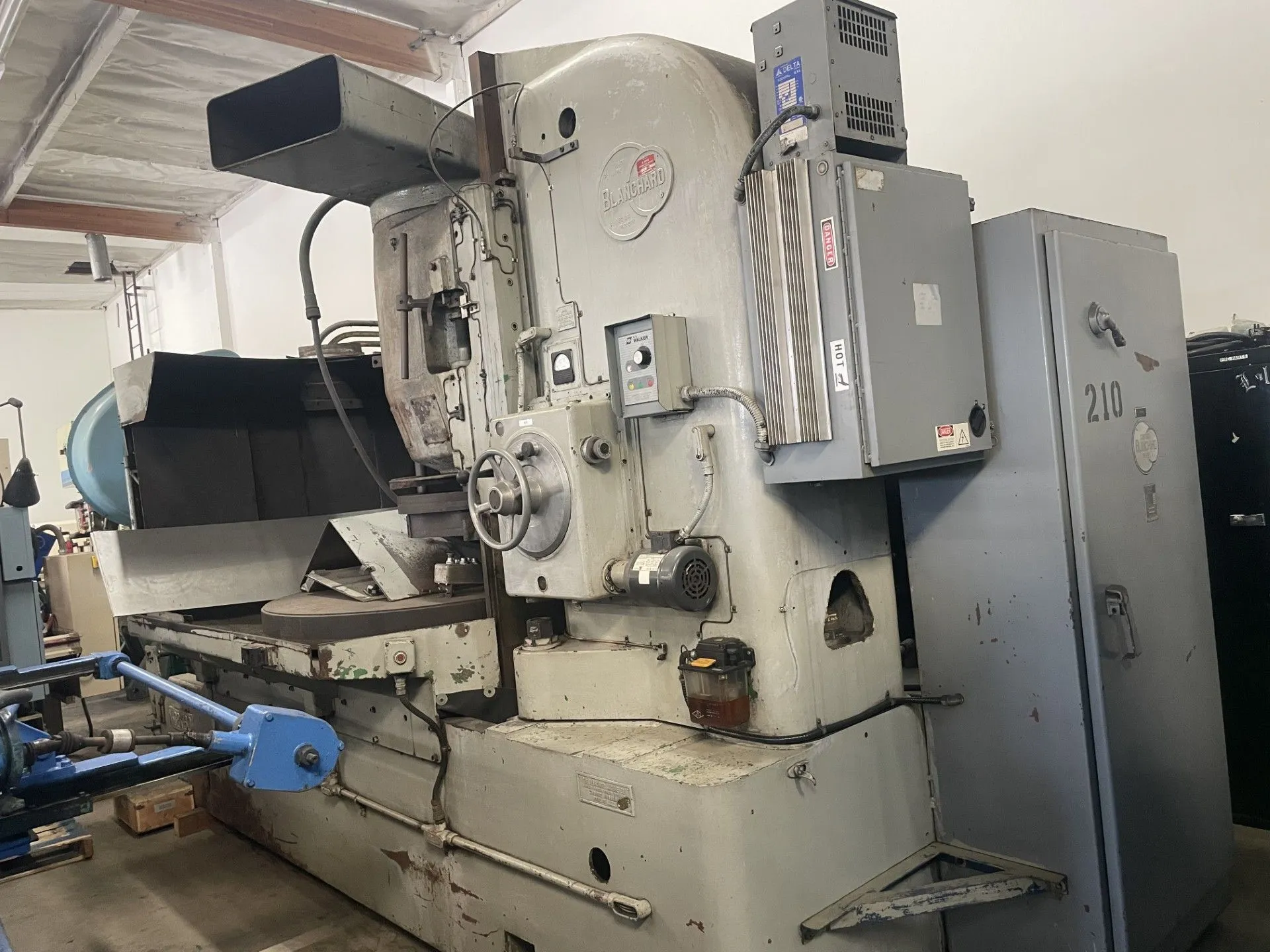

Blanchard 32-60 used rotary surface grinder, featuring a 60" electromagnetic chuck, 100 HP motor, and a swing inside guards of 64". Equipped with variable chuck control, wheel dresser, power traverse, coolant system, and more. Serial #13030.
| Dimensions | 60 x 32 | 60 x 32 |
| Weight | 36000 | 36000 |
Blanchard 32-60 Rotary Surface Grinder 60" x 32" #6570 #2
Serial # 13030
CHUCK DIAMETER: 60"
SWING INSIDE GUARDS: 64"
HEIGHT UNDER NEW WHEEL: 24"
MAX. WEIGHT OF WORK LOAD ON CHUCK: 10,000 LBS
GRINDING WHEEL DIAMETER: 32"WHEEL SPEED: 500 RPM
CHUCK SPEEDS (6): 5.6- 8.7-12.9- 20.7 RPM
INF. VARIABLE POWER DOWNFEED: 0.004" TO .080" IPM
MOTOR: 100 HP
APPROX. WEIGHT: 36,000 LBS
EQUIPPED WITH:
60" ELECTRO MAGNETIC CHUCK
VARIABLE CHUCK CONTROL
POWER RAISING & LOWER WHEEL HEAD
POWER TRAVERSE TABLE
WHEEL DRESSER
COOLANT SYSTEM
REMOTE PENDANT CONTROL
AUTO LUBE SYSTEM
