Used AFM MK6-31 hydraulic power shear. Handles 1/4" mild steel up to 10'. Equipped with programmable power back gauge, square arm, front supports, ball transfer table, power rake angle adjustment, auto lube system, and electric foot pedal. 15 HP motor.
| Max Thickness | 0.0098" | 0.25 mm |
| Length of Blade | 10" | 0.3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 24" | 609.6 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 2,348 strokes/min. | 2,348 strokes/min. |
| Weight | 17500 | 17500 |
AFM MK6-31 Hydraulic Power Shear 1/4" x 10' #6598 #1
Capacity (Mild Steel): 1/4"
Max. Cutting Length: 10'
Rake Angle: 1/4"
Number of hold downs (Hydraulic): 11
Back Gauge Range: 24"
Strokes per Minute:
Full Stroke: 23
Short Stroke: 48

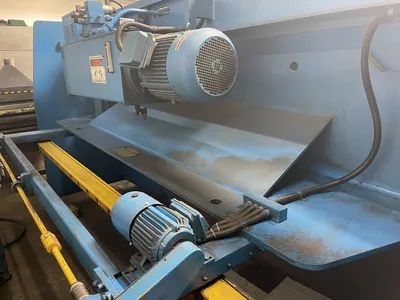

Motor: 15 HP
Weight: 17,500 Lbs.
Equipped with:

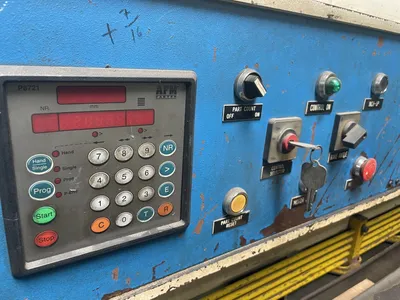

Front Operated Programmable Power Back Gauge
Square Arm
Front Material Supports
Ball Transfer Table
Power Rake Angle Adjustment
Auto Lube System
Electric Foot Pedal
