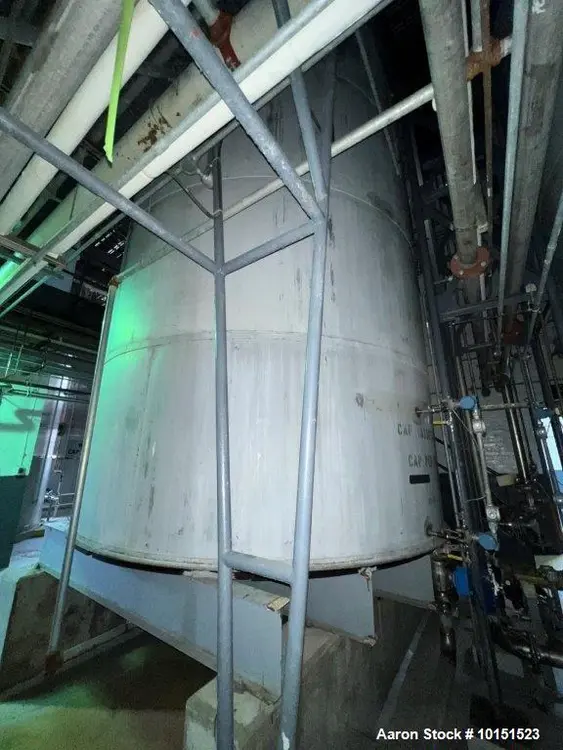

Used Approximately 5600 gallon Mix Tank, Manufactured by Alloy Fabricators Inc. 304 stainless steel vertical mix tank. 90" diameter X 17' high straight side. Internal rated ATMOS @ 200 F. Dished heads. Top fittings: 21" manway, (2) 1.5", (4) 2", (1) 3", and (1) 4". 3" center bottom drain. Has (4) internal baffles. Equipped with dual flight 4-blade agitator driven by Philadelphia model PTERVS-08 S/N 307573, Ratio 38.9-1. Rated 1750 RPM input, 45 RPM output. Powered by 5 HP 3/60/460 volt motor. Lug mounted. Built 1979. OAH 27'
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Description:
This used 5600-gallon 304 stainless steel vertical mix tank, manufactured by Alloy Fabricators Inc., is designed for industrial mixing and liquid processing. With a 90" diameter and 17' straight side height, it is internally rated for atmospheric pressure at 200°F. The tank features dished heads for durability and four internal baffles to improve mixing efficiency.
The tank is equipped with a dual flight 4-blade agitator, driven by a Philadelphia Model PTERVS-08 drive (S/N 307573), with a 38.9:1 ratio, 1750 RPM input, and 45 RPM output. A 5 HP 3/60/460V motor powers the agitator. The unit is lug-mounted and has an overall height of 27 feet.
Specifications:
Capacity: Approx. 5600 gallons
Material: 304 stainless steel
Dimensions:
Diameter: 90”
Straight Side Height: 17’
Overall Height (OAH): 27’
Pressure Rating: Atmospheric (ATMOS) at 200°F
Top Fittings:
Manway: 21”
Other Ports: (2) 1.5", (4) 2", (1) 3", (1) 4"
Bottom Drain: 3” center bottom drain
Agitation System:
Agitator Type: Dual flight 4-blade
Drive: Philadelphia Model PTERVS-08
Drive S/N: 307573
Speed: 1750 RPM input, 45 RPM output
Motor Power: 5 HP, 3-phase, 60 Hz, 460V
Mounting: Lug-mounted
Applications:
This stainless steel mix tank is suitable for liquid processing, agitation, and industrial mixing, making it ideal for industries such as:
Chemical processing
Pharmaceutical and biotech manufacturing
Food and beverage production
Dairy and liquid food blending
Cosmetic and personal care product formulation
Water treatment and wastewater processing
Petrochemical and industrial fluid mixing
Compatible Products:
Chemical solutions and industrial liquids
Food-grade liquids (e.g., syrups, dairy, beverages)
Paints, coatings, and adhesives
Pharmaceutical and biotech formulations
Essential oils and cosmetic mixtures
Water and wastewater treatment solutions
