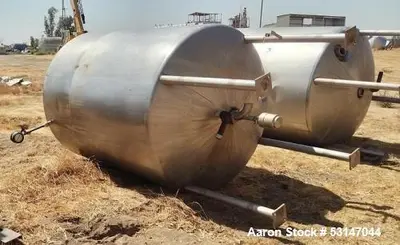

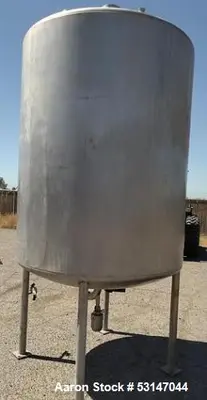

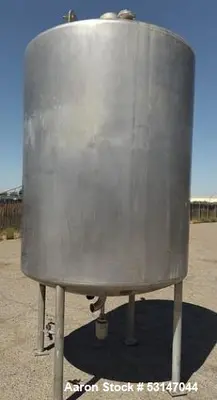

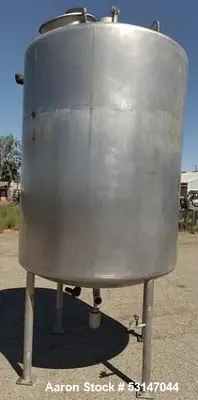

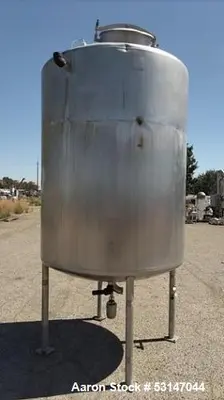

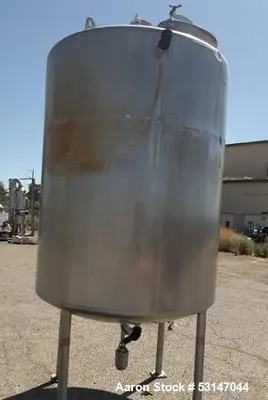

Used C.E. Howard 850 Gallon Stainless Steel Jacketed Tank. Constructed of 304 stainless steel. Vessel measures 5' diameter X 6-1/2' straight side with dished top and bottom (7''1" internal height from dish to dish). Internals includes (2) baffles and top entering agitator shaft with two sets of 2-blade paddles, driven by top mounted drive through gear reducer, 2 HP, 1700 RPM, 230/460V, 3/60Hz, SEW Eurodrive gear motor, resulting in 61 output RPM. Vessel is mounted on 3'3" high stainless steel legs. Top head includes 20" diameter manway, 8" diameter flanged connection for motor mounting and (4) 2" inlets. Bottom head includes 3" diameter center bottom outlet. Also includes 2" diameter jacket connections. Vessel is fully jacketed with dimpled jackets on straight side and bottom head, ASME rated jacket, rated for 75 PSI. Tank was used for beverage processing.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: C.E. Howard
Capacity: 850 Gallons
Material: 304 Stainless Steel
Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)

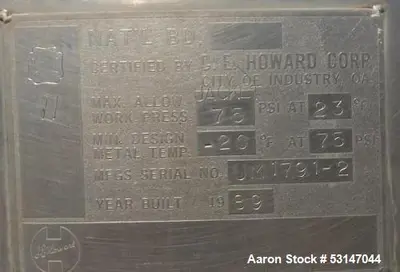

ASME Rating: 75 PSI
Description:
This used C.E. Howard 850-gallon stainless steel jacketed tank is a high-quality mixing and processing vessel, ideal for beverage, food, and pharmaceutical applications. Constructed from 304 stainless steel, it features a 5' diameter x 6-1/2' straight-side vessel with a dished top and bottom, providing an internal height of 7'1" from dish to dish.

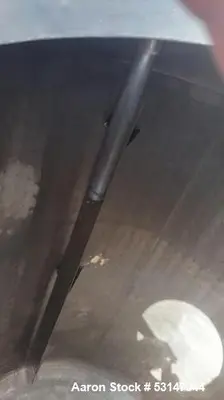

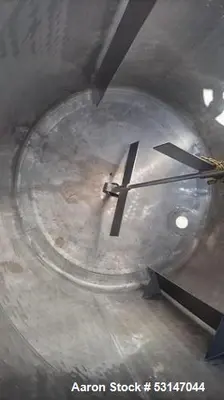

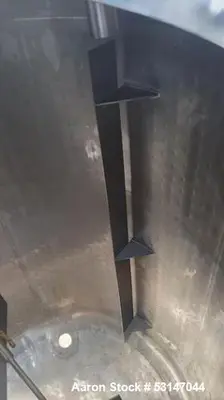

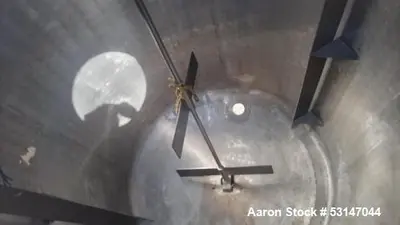

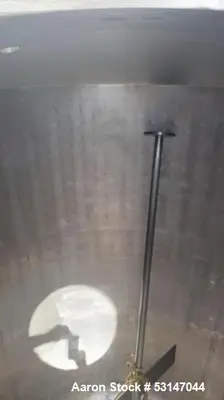

Internally, the tank includes (2) baffles and a top-entering agitator shaft equipped with two sets of 2-blade paddles, driven by a top-mounted drive through a gear reducer. The agitator system is powered by a 2 HP SEW Eurodrive gear motor (230/460V, 3/60Hz, 1700 RPM), delivering an output speed of 61 RPM.

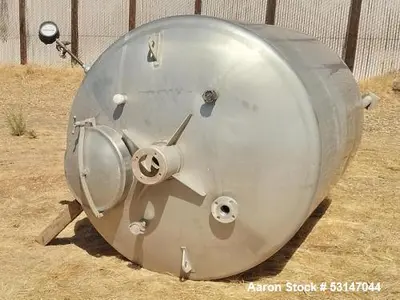

The vessel is supported by 3'3" high stainless steel legs for stability and accessibility. The top head includes a 20" diameter manway, an 8" diameter flanged connection for motor mounting, and (4) 2" inlets. The bottom head features a 3" diameter center bottom outlet for efficient discharge. Additionally, the 2" diameter jacket connections ensure effective heat transfer.
Specifications:
Capacity: 850 Gallons
Material: 304 Stainless Steel
Vessel Dimensions: 5' Diameter x 6-1/2' Straight Side
Internal Height: 7'1" (Dish to Dish)
Jacket Type: Fully Jacketed with Dimpled Jackets (Straight Side & Bottom Head)
Jacket Rating: ASME Rated for 75 PSI
Agitation System:

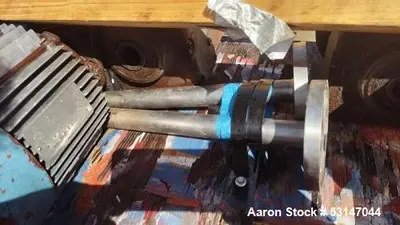

Top-Entering Agitator Shaft with Two Sets of 2-Blade Paddles

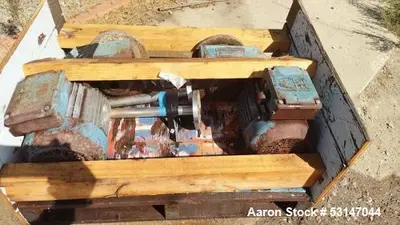

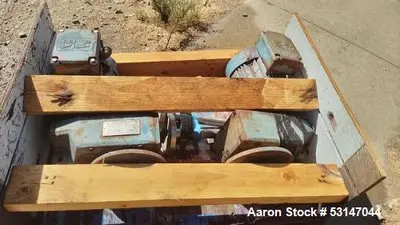

Drive System: Gear Reducer, SEW Eurodrive Gear Motor

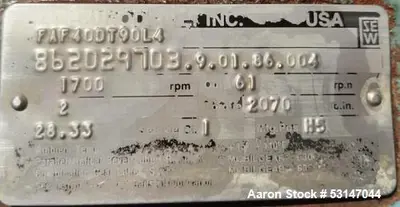

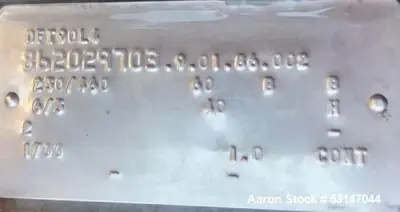

Motor Specs: 2 HP, 1700 RPM, 230/460V, 3/60Hz
Gearbox Output Speed: 61 RPM
Top Head Features:
20" Diameter Manway
8" Diameter Flanged Connection for Motor Mounting
(4) 2" Inlets
Bottom Head Features:
3" Diameter Center Bottom Outlet
Jacket Connections: 2" Diameter
Mounting: 3'3" High Stainless Steel Legs
Previous Use: Beverage Processing
Applications:
Beverage Processing – Mixing, heating, and cooling of liquid products
Food Processing – Blending and temperature-controlled storage of ingredients
Pharmaceutical & Biotech – Precision heating and cooling applications
Chemical Processing – Jacketed vessel for controlled reactions
Dairy & Brewery Industry – Fermentation and liquid storage
Common Uses for This Tank:
Mixing and processing of beverages
Heating and cooling in food and pharmaceutical industries
Chemical and biotech processing
Dairy and brewery applications
