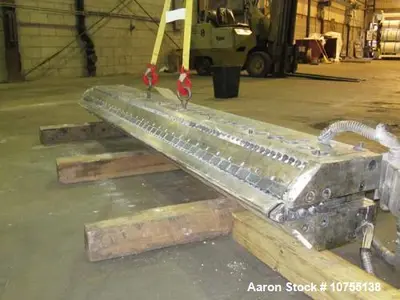

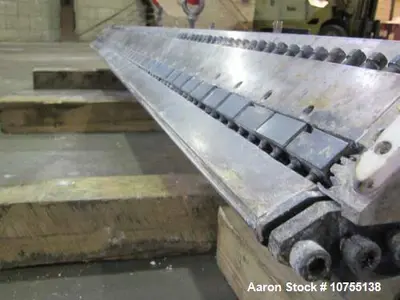

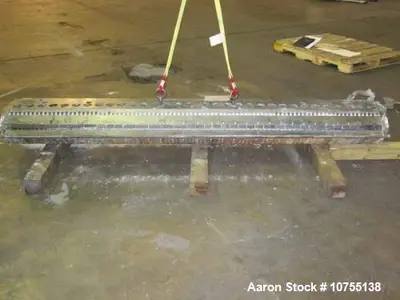

Used EDI 89" Ultraflex H75 Sheet Extrusion Die. 000-.075 Lip Opening with .300 Lip Length. All Flow Surfaces Ultrachrome II Plated .001-.0015 Thick. 480 Volt Single Phase Operation. 9 Zones with a total of (14) 500 Watt Heaters. Horizontal Position Die Operation. Upper & Lower Body Compound Angle Upper Body. Lower Body Extra Thick End Plate. Lower Body is Drilled and Tapped 3/8-16" (8) Positions. 1.5" on Center on Both Ends of the Lower Body for Optional Deckeling. Mfg. 2000.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:

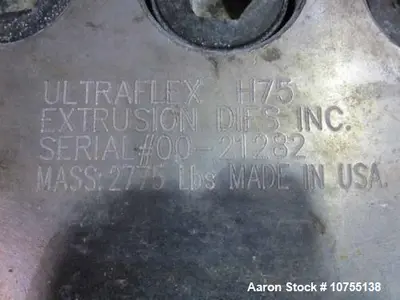

Manufacturer: EDI (Extrusion Dies Industries)
Model: 89" Ultraflex H75
Manufacturing Year: 2000
Power Requirements: 480V, Single Phase
Description:
The EDI 89" Ultraflex H75 Sheet Extrusion Die is a high-performance die designed for precision plastic sheet extrusion. It features a .000-.075 lip opening with a .300 lip length, ensuring versatility for various sheet thicknesses. All flow surfaces are coated with Ultrachrome II plating (.001-.0015" thick) for enhanced durability and performance.
This die operates in a horizontal position and includes an upper and lower body with a compound angle design. The lower body has an extra-thick end plate and is drilled and tapped (3/8-16" in 8 positions) with 1.5" spacing on both ends for optional deckling. The heating system consists of 9 zones with a total of 14 (500W) heaters, providing precise temperature control for consistent extrusion quality.
Specifications:
Die Width: 89 inches
Lip Opening: .000 - .075 inches
Lip Length: .300 inches
Plating: Ultrachrome II, .001 - .0015 inches thick
Die Position: Horizontal
Body Design: Upper and lower body with compound angle
Lower Body Features: Extra-thick end plate, drilled/tapped for deckling (3/8-16" in 8 positions, 1.5" on center)
Heating Zones: 9 zones with (14) 500W heaters
Power Requirement: 480V, single-phase
Manufacturing Year: 2000
Applications:
Plastic sheet extrusion
Film and thin sheet production
High-precision thermoplastic processing
Industrial and commercial sheet forming
Products That Would Use This Machine:
Plastic sheets and films
Thermoformed packaging materials
Acrylic, polycarbonate, and PET sheets
Industrial plastic panels
