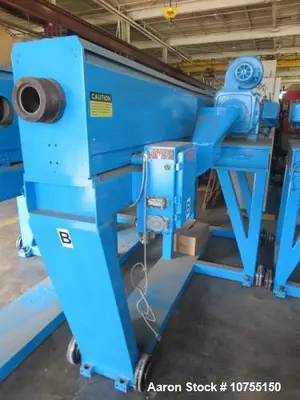

Used Gloucester 3.5" Single Screw Extruder, Model 35250R2. 3.5" diameter screw, 32:1 L/D. Having an electrically heated, air cooled, and non-vented barrel at approximately a 65" center line height. Barrel is set up for Contra-Cool but does not include blower. Gearbox has a reduction ratio of 18.17:1 and is directly driven in a wraparound manner by a 100 HP Baldor D/C motor with Saftronics SCR control. Oil pump with heat exchanger on the gearbox for cooling. Originally manufactured in 1995 and completely reconditioned in 2011 and never put back into service. All wiring on the extruder is run to a terminal strip. New control panel has fourteen (14) zones of temperature controls. Drive control is loose. Includes two (2) new / rebuilt screws. 460/3/60. Serial# 36736/11.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Gloucester
Model: 35250R2
Condition: Used (Reconditioned in 2011, Never Put Back into Service)
Serial Number: 36736/11
Year Manufactured: 1995
Year Reconditioned: 2011
Description:
The Gloucester 35250R2 3.5” Single Screw Extruder is a high-performance, industrial-grade extrusion system, designed for efficient polymer processing in sheet extrusion, compounding, and recycling applications. This system features a 3.5" diameter screw with a 32:1 L/D ratio, providing consistent material processing and superior melt quality.
The electrically heated, air-cooled, non-vented barrel operates at an approximate 65” centerline height and is Contra-Cool ready (blower not included). The 18.17:1 reduction ratio gearbox is directly driven in a wraparound configuration by a 100 HP Baldor DC motor, offering smooth and reliable extrusion performance. The Saftronics SCR control system ensures precise speed and torque control for optimized extrusion efficiency.
For temperature regulation, the system includes an oil pump with a heat exchanger for gearbox cooling. The new control panel features fourteen (14) temperature control zones, offering advanced thermal stability and process control. Additionally, all wiring on the extruder is run to a terminal strip for easy installation and connectivity.
This extruder includes two (2) new/rebuilt screws, adding extra value and process flexibility. The drive control is supplied loose, allowing for customized system integration.
Originally built in 1995 and completely reconditioned in 2011, this extruder was never put back into service, making it an excellent choice for those seeking a near-new extrusion system at a used price.
Specifications:
Screw Diameter: 3.5 inches
L/D Ratio: 32:1
Barrel Features:
Electrically heated, air-cooled
Non-vented
Set up for Contra-Cool (Blower Not Included)
Approximate 65” centerline height
Gearbox:
Reduction Ratio: 18.17:1
Direct-driven, wraparound configuration
Drive System:
100 HP Baldor DC Motor
Saftronics SCR Control System
Cooling System:
Oil pump with heat exchanger for gearbox cooling
Control System:
New Control Panel with 14 Temperature Control Zones
All wiring run to a terminal strip
Drive control supplied loose
Additional Features:
Includes two (2) new/rebuilt screws
Power Requirements: 460V / 3-Phase / 60Hz
Applications:
Plastics & Polymer Processing: Sheet extrusion, compounding, and pelletizing
Industrial Manufacturing: Extrusion of pipes, tubing, films, and profiles
Recycling & Reprocessing: Repurposing scrap plastic into reusable pellets
Chemical & Specialty Material Processing: Processing engineered polymers and composites
Common Product Uses:
Industrial extrusion for high-efficiency plastic processing
Temperature-controlled extrusion with air-cooled barrel
Direct-driven gearbox with Saftronics SCR drive control
Reconditioned extruder with new screws and control panel
