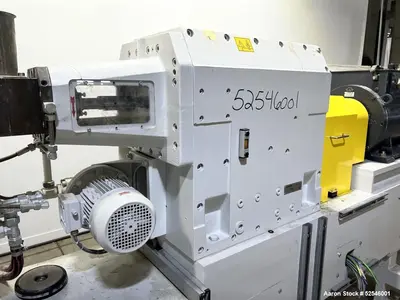

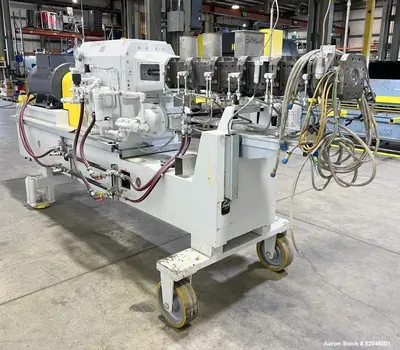

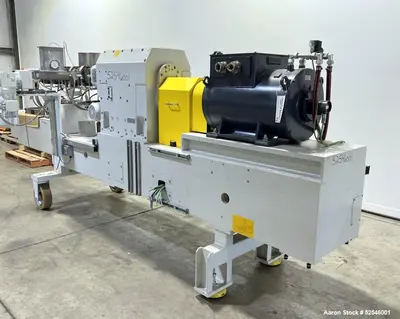

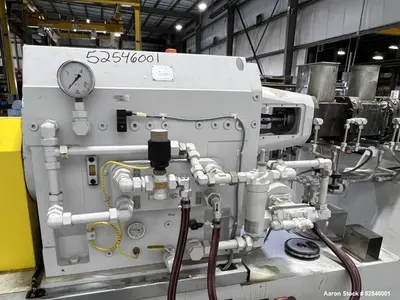

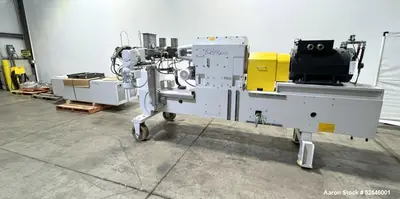

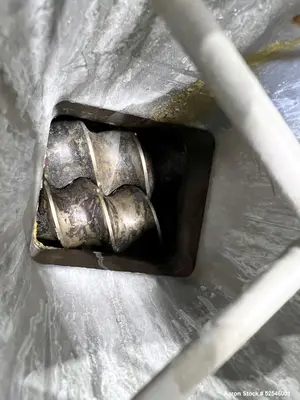

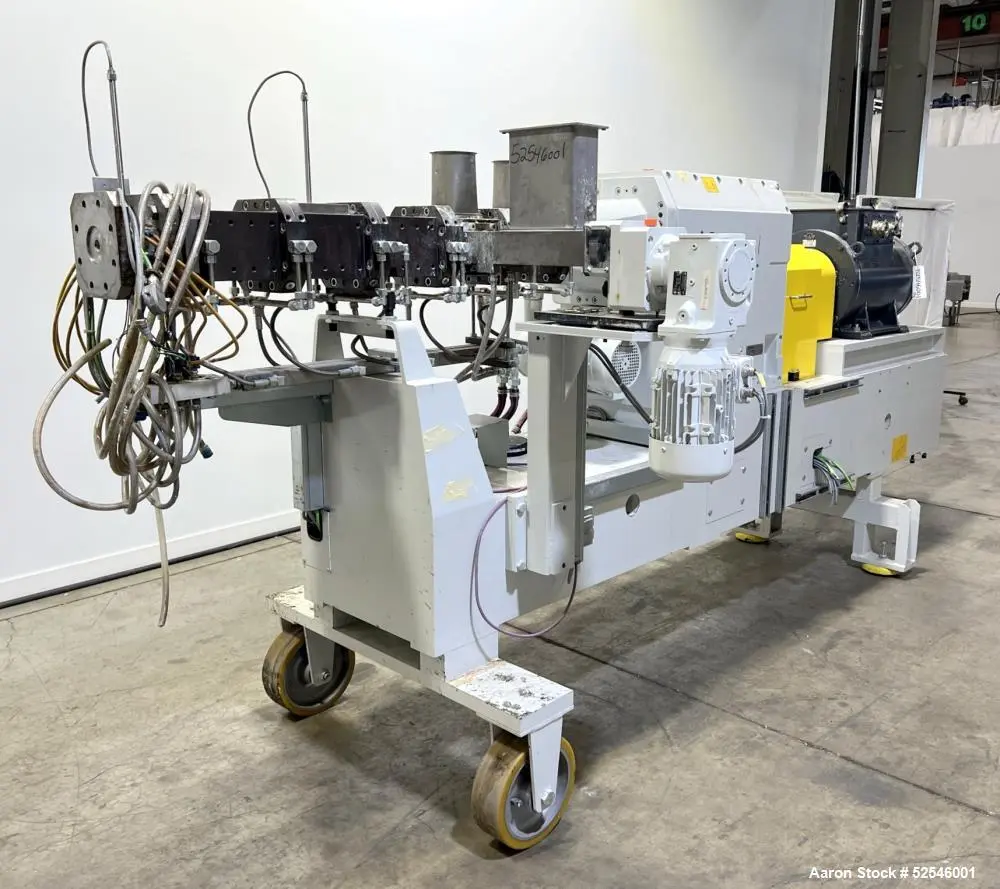

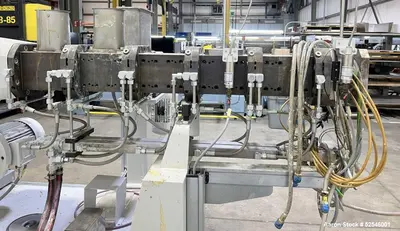

Used Leistritz 60mm ZSE MAXX Twin Screw Extruder, Type ZSE60MAXX-20D. (2) Co-rotating screws approximately 2.44" diameter x 62" long. Speed 400 rpm. Approximate 20 to 1 L/D ratio. 4 Barrel sections, 1 feed section. Liquid heated and cooled. 4-Cooling zones. Screws driven by a 121kw (160hp), 1600 rpm motor thru a gearbox. Leistritz model LSB 56 twin screw side feeder, driven by 3.45kW, 3/60/264/460 volt, 1700 rpm gear motor, 5.3 to 1 ratio. Rickmeier pump, driven by a 1.4kW motor, thru Funke plate heat exchanger. Includes drive panel with Siemens Sinamics controller. *No main control panel*. Mounted on frame with wheels and adjustable feet. Serial # 04144, order # 310.1121.01. 3/60/480 Volt, 294 Amp.
Used Equipment Facts About This Machine
Manufacturer’s Info:

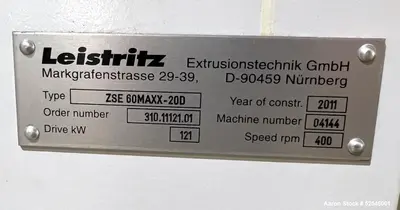

Manufacturer: Leistritz
Model: ZSE60MAXX-20D
Serial #: 04144
Order #: 310.1121.01
Description:The Leistritz ZSE60MAXX-20D is a high-performance twin screw extruder designed for industrial-scale processing. Featuring two co-rotating screws with an approximate 2.44" diameter and 62" length, this unit operates at 400 rpm and has a 20:1 L/D ratio. Equipped with 4 barrel sections and 1 feed section, it supports both liquid heating and cooling with 4 cooling zones for precise temperature management.

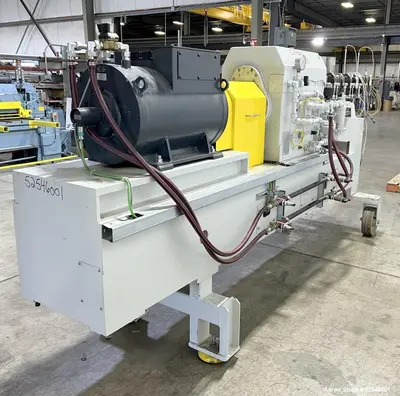

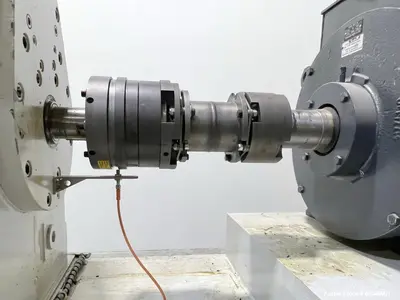

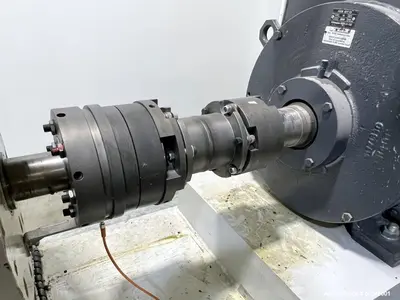

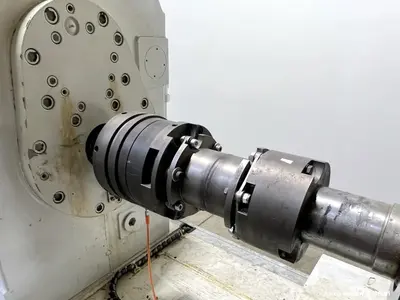

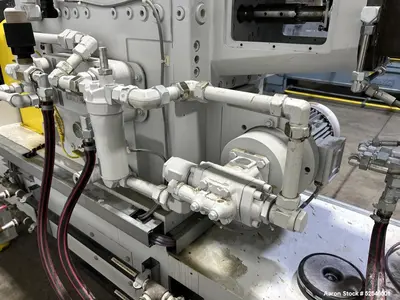

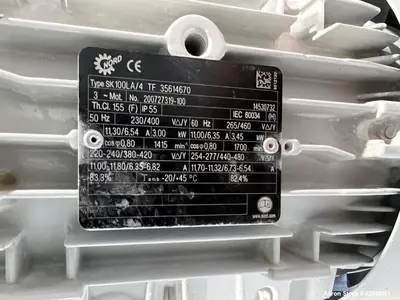

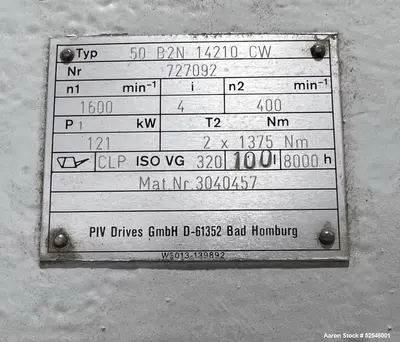

This extruder is powered by a 121 kW (160 HP) motor running at 1600 rpm, driving the screws through a robust gearbox. It includes a Leistritz LSB 56 twin screw side feeder, which is driven by a 3.45 kW, 1700 rpm gear motor with a 5.3:1 ratio. A Rickmeier pump, coupled with a 1.4 kW motor, manages fluid circulation through a Funke plate heat exchanger for efficient temperature control.

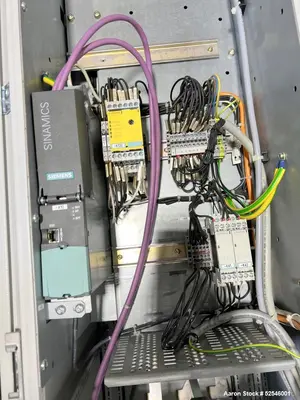

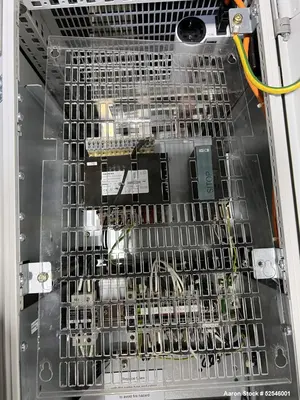

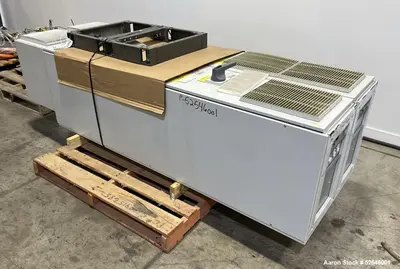

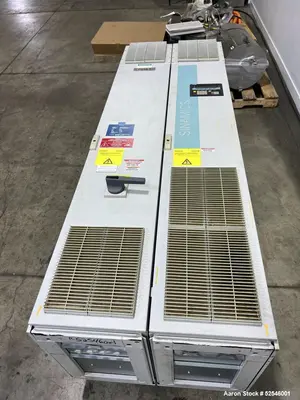

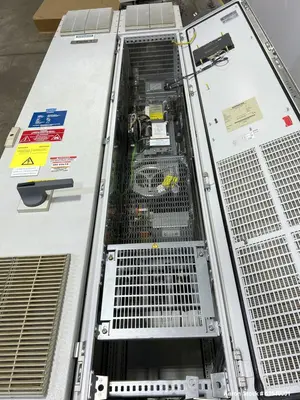

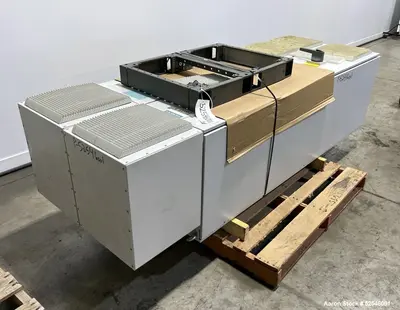

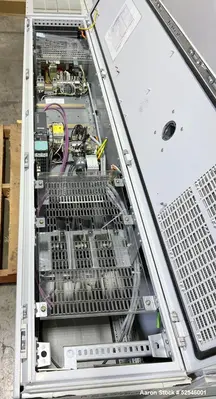

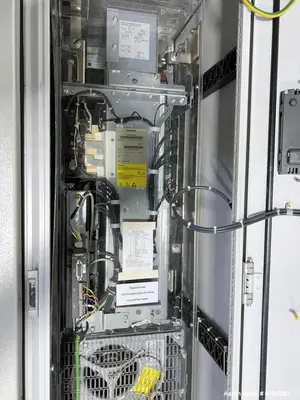

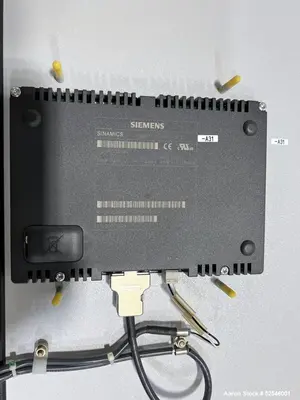

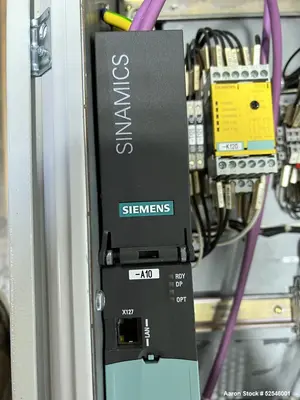

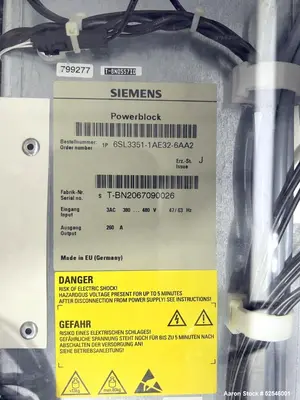

The unit includes a drive panel with a Siemens Sinamics controller, though it does not include the main control panel. It is mounted on a frame with wheels and adjustable feet for mobility and easy installation.
Specifications:
Screw Diameter: 60mm (2.44")
Screw Length: 62"
L/D Ratio: 20:1
Screw Type: Co-rotating twin screws
Screw Speed: 400 rpm

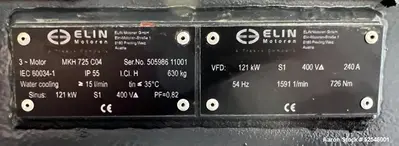

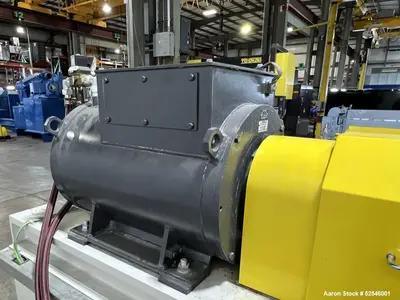

Motor Power: 121 kW (160 HP), 1600 rpm
Voltage: 3 Phase / 60 Hz / 480 Volt
Current: 294 Amp
Barrel Sections: 4 barrel sections, 1 feed section
Heating & Cooling: Liquid heated and cooled, 4 cooling zones

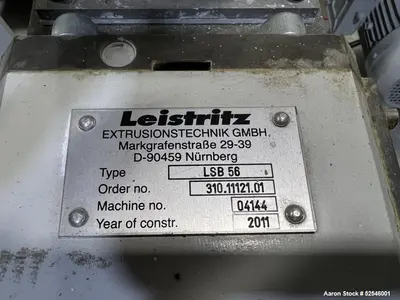

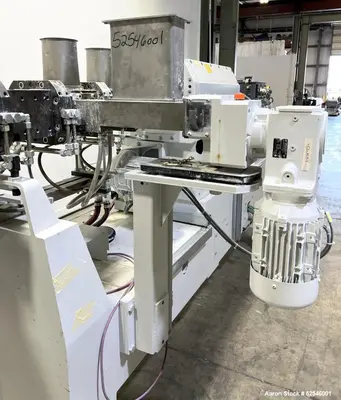

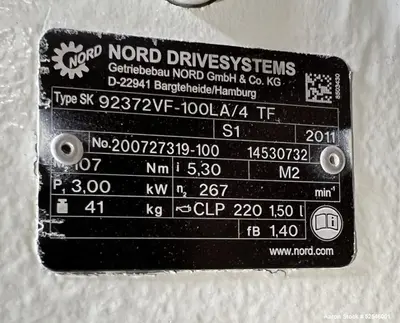

Side Feeder: Leistritz LSB 56 twin screw, driven by 3.45 kW, 1700 rpm gear motor
Gear Ratio: 5.3:1

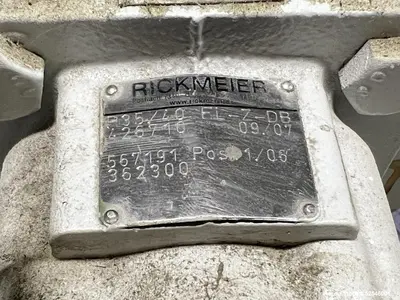

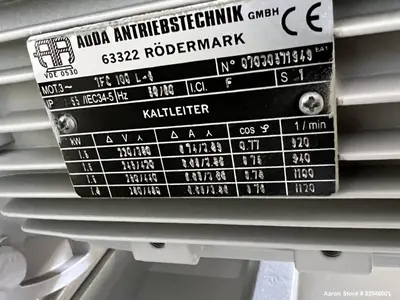

Rickmeier Pump: Driven by 1.4 kW motor

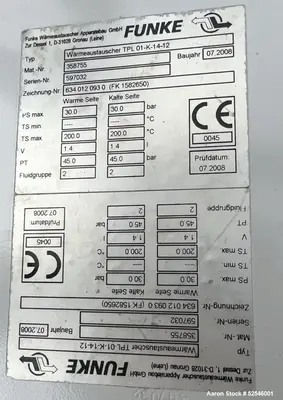

Heat Exchanger: Funke plate heat exchanger

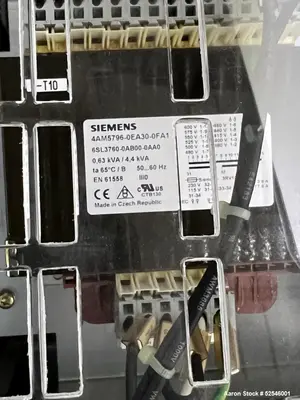

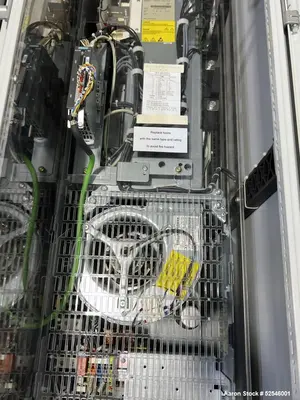

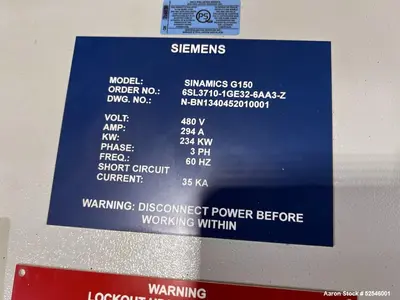

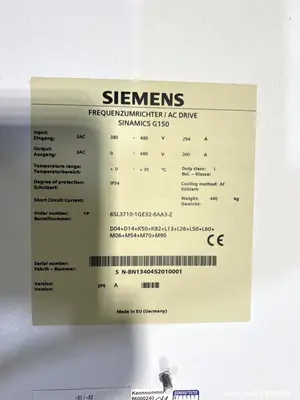

Drive Control: Siemens Sinamics controller (no main control panel)
Mounting: Frame with wheels and adjustable feet
Applications:The Leistritz ZSE60MAXX-20D twin screw extruder is ideal for high-performance extrusion processes across multiple industries, including:
Plastics Industry: Compounding, masterbatch production, and polymer blending
Food Processing: Extruded snacks, cereals, and textured vegetable protein (TVP)
Pharmaceuticals: Continuous processing of drug formulations and tablet granulation
Chemical Processing: High-performance materials, specialty compounds, and adhesives
3D Printing Materials: Production of thermoplastic filaments and composite materials
Rubber and Elastomers: Processing of rubber compounds and TPEs
What Products Would This Be Used For?
Plastic masterbatch and compounding
PVC and polymer extrusion
Food-grade extrusion (snacks, cereals, protein products)
Pharmaceutical formulations
Biodegradable plastics and specialty materials
Adhesives and specialty chemical processing
Thermoplastic elastomers (TPE)
3D printing filaments and composite extrusion
