Used Farrel Twin Screw Pelletizing Line Consisting Of: (1) Farrel 37 mm FTX80 co-rotating twin screw extruder, 5 zone electrically heated, water cooled, approximately 40:1 L/D. Driven by a 25 hp, 500 volt, 1750/2300 rpm DC motor thru a Flender reducer, ratio 1.759 to 1. (1) Control panel with Mentor drive and temperature controllers. Serial# 956129. Includes (1) AEC TCU100-0 temperature controller, (1) Acrison feeder with mezzanine, (1) Gala underwater pelletizing system consisting of: (1) 2hp cutting head, model 5MUP, serial# 890502, (1) Model 20 gpm water tank, serial# 8260554, (1) Model 8.1B.F. spin dryer, serial# 860554, (1) Witte approximate 16" wide x 70" long screener, serial# 4250. (1) hopper with inclined screw feeder.
Used Equipment Facts About This Machine
๐ญ Manufacturer Information
Extruder Manufacturer: Farrel Corporation
Extruder Model: FTX80
Pelletizing System Manufacturer: Gala Industries
Feeder Manufacturer: Acrison
Control System: Mentor drive with integrated temperature control panel
Motor: 25 HP, 500 Volt, 1750/2300 RPM DC motor
Serial Numbers:
Extruder: #956129
Cutter: #890502
Water Tank: #8260554
Spin Dryer: #860554
Screener: #4250
๐ Product Description

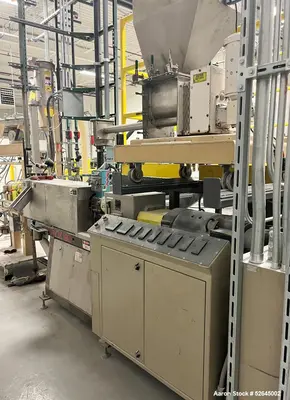

This Used Farrel Twin Screw Pelletizing Line features a 37mm FTX80 co-rotating twin screw extruder, approximately 40:1 L/D, with 5 heating zones, electrically heated and water cooled. It is powered by a 25 HP DC motor (500V) via a Flender reducer (1.759:1 ratio), ideal for continuous, high-shear compounding or polymer processing.
The system includes a Mentor drive control panel with zone temperature controllers, an AEC TCU100-0 temperature controller, and an Acrison feeder mounted on a mezzanine platform. Downstream equipment includes a Gala underwater pelletizing system featuring a 2 HP cutting head (Model 5MUP), 20 GPM water tank, Model 8.1B.F. spin dryer, a Witte 16โ x 70โ vibrating screener, and a hopper with inclined screw feeder for final pellet collection and handling.
This is a compact, efficient, and versatile pelletizing line, well-suited for a wide range of thermoplastics and specialty compounding.
๐ Specifications
๐ง Twin Screw Extruder
Model: FTX80
Screw Diameter: 37 mm
Screw Type: Co-rotating twin screw
L/D Ratio: Approx. 40:1
Heating Zones: 5
Heating/Cooling: Electrically heated / water cooled
Motor: 25 HP DC, 500V, 1750/2300 RPM
Reducer: Flender, 1.759:1
Serial Number: 956129
๐ Control System
Mentor Drive System
Temperature Zone Controllers: Included

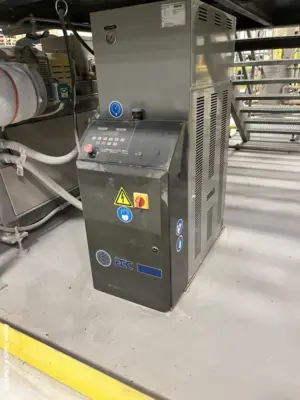

AEC TCU100-0 Temperature Controller: Included
๐ Feeding System
Feeder: Acrison volumetric feeder
Mounting: On mezzanine
Inclined Screw Feeder: For hopper loading
๐ฆ Gala Underwater Pelletizing System
Cutting Head: Model 5MUP, 2 HP, Serial# 890502
Water Tank: Model 20 GPM, Serial# 8260554

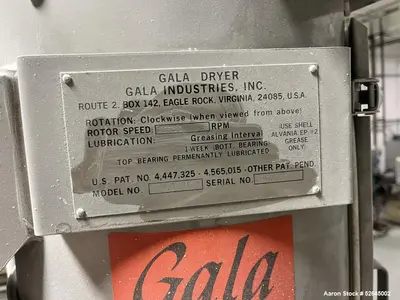

Spin Dryer: Model 8.1B.F., Serial# 860554

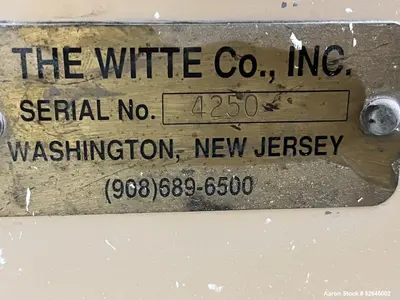

๐งน Screener
Manufacturer: Witte
Dimensions: 16" wide x 70" long
Serial#: 4250
๐งฉ Applications
Ideal for:
Thermoplastic resin pelletizing
Masterbatch production
Engineering plastics (nylons, ABS, PC blends)
Additive and filler compounding
High-output compounding lines
Reactive extrusion lines
Color concentrates
Recycled polymer strand or underwater pelletizing
Precision polymer formulation
๐ Used For Producing
PE/PP pellets
ABS or PC/ABS compounds
Color masterbatch
Nylon and PA-based resins
Filled and reinforced plastic compounds
Flame-retardant plastic pellets
TPU, TPE granules
Glass-fiber-reinforced pellets
Thermoplastic elastomer compounds
Additive-infused resins
