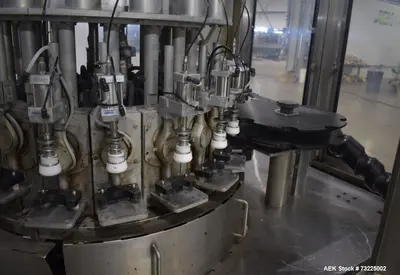

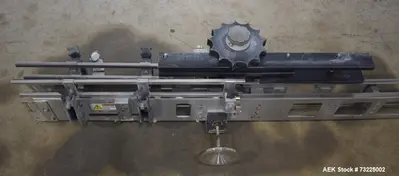

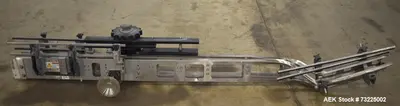

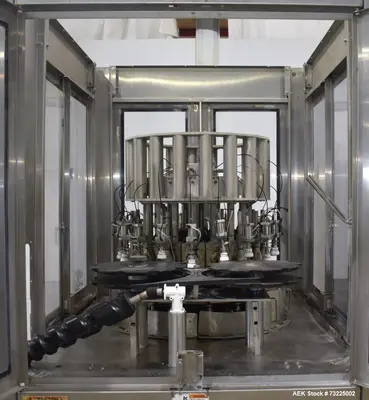

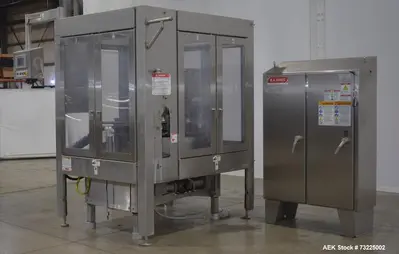

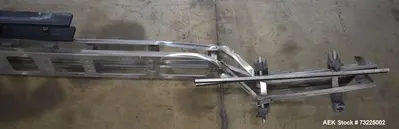

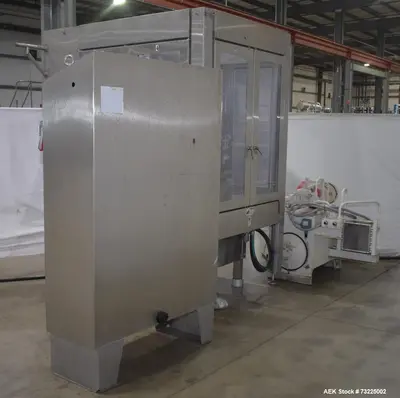

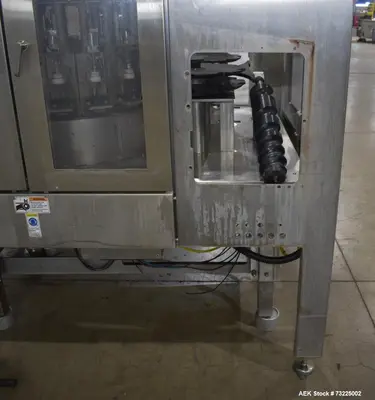

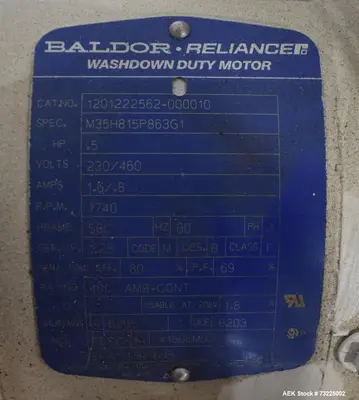

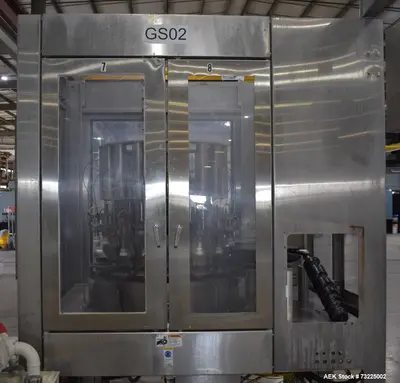

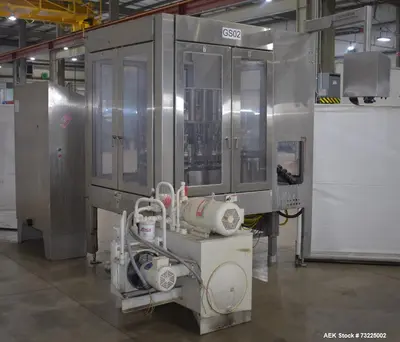

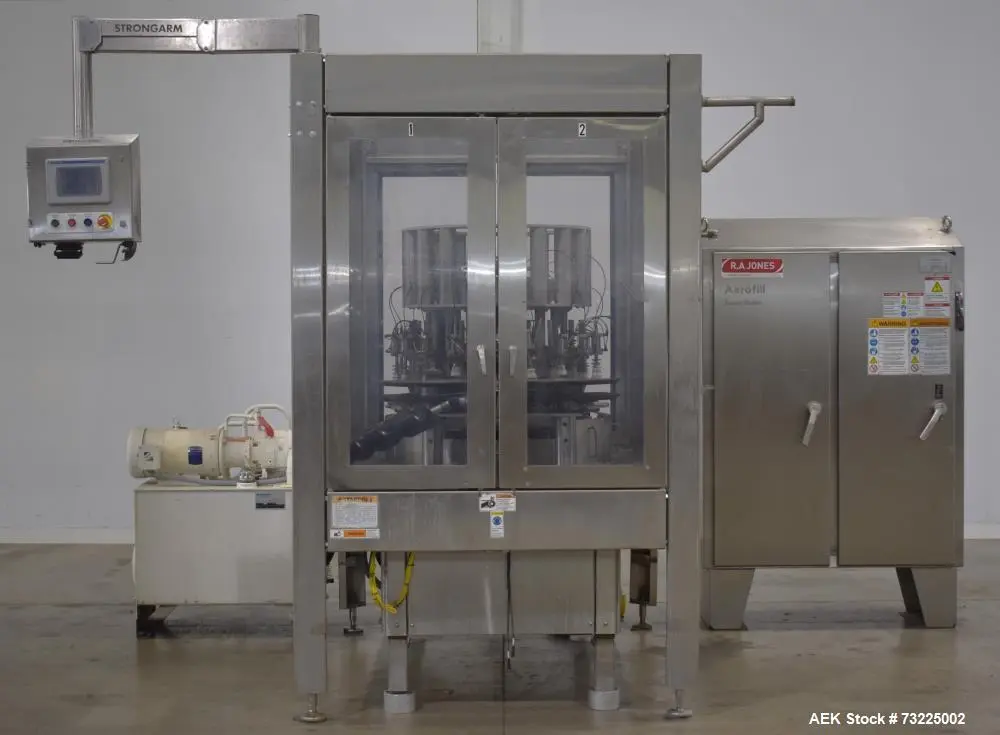

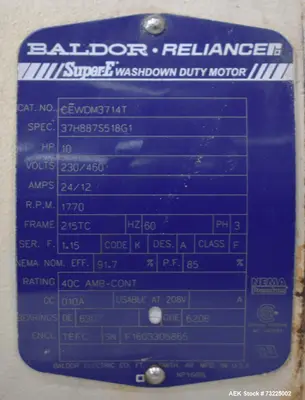

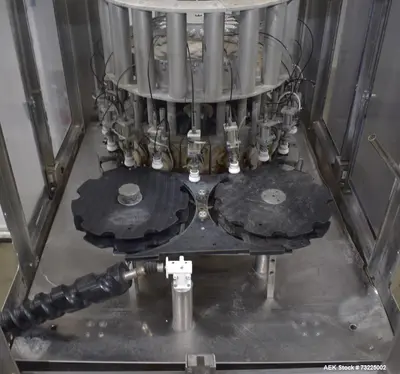

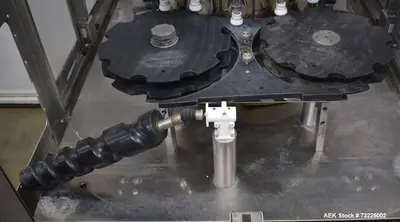

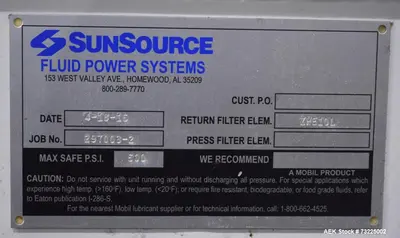

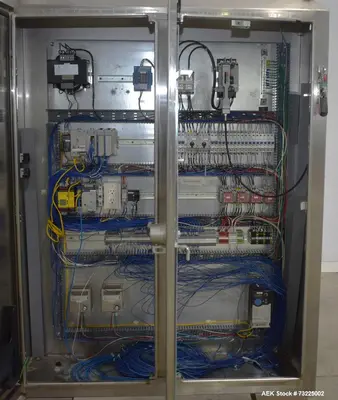

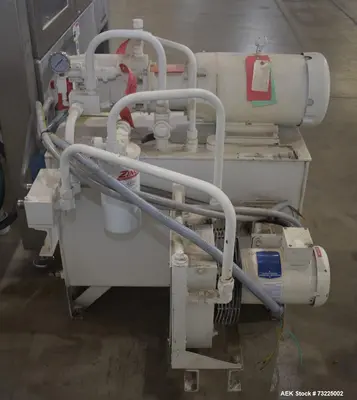

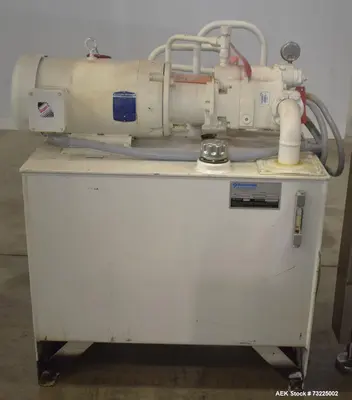

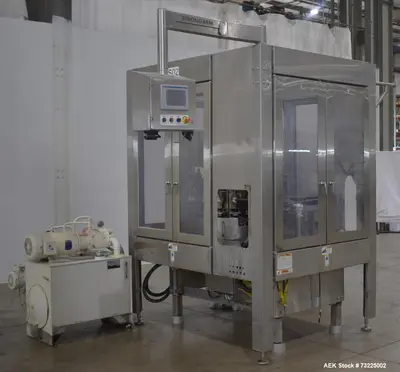

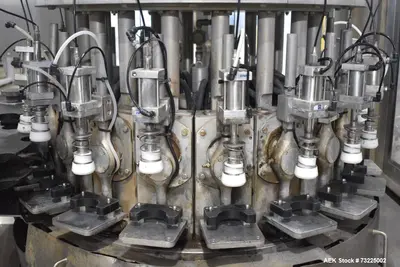

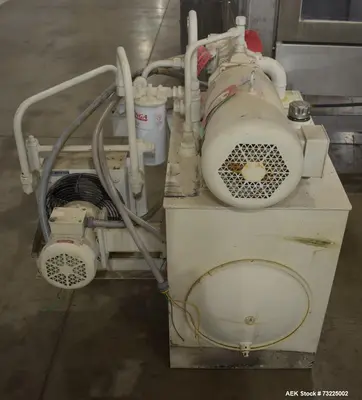

Used R.A Jones (Aerofill) Model 1695 Ultraflex "Gasser Shaker" Rotary 18 Head TTV. Capable of speeds up to 275 cans per minute (depending on application). Container size range: 1-3/8" - 3" or 35mm - 76.2mm (diam) x 5" - 10" (height) including spray tip stem. Includes Allen Bradley CompactLogix L24ER PLC, A/B panelview plus 700 HMI. Conveyor 3-1/2" wide x 107" long. 5HP 3/60/230/460V. Has a 10HP Hydraulic power pack. 3/60/480V. Multi head gasser shaker for high speed product absorption within aerosol containers, using either carbon dioxide (CO2) or nitrous oxide (N2O). This may be accomplished via pressurized gas or via equilibrium. The absorption of the gas into the product is enhanced by mechanically agitating the container during the filling process. Currently set up for 2-1/8" internal diameter x 5-1/4" tall and was last used in a dairy beverage operation.
Used Equipment Facts About This Machine
Manufacturer Information:

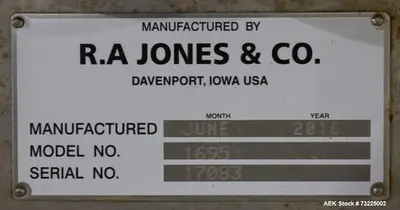

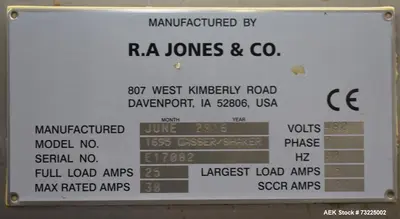

Manufacturer: R.A Jones (Aerofill)
Model: 1695 Ultraflex Rotary 18-Head TTV
Condition: Used
Description:

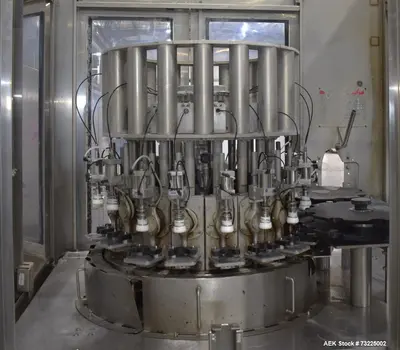

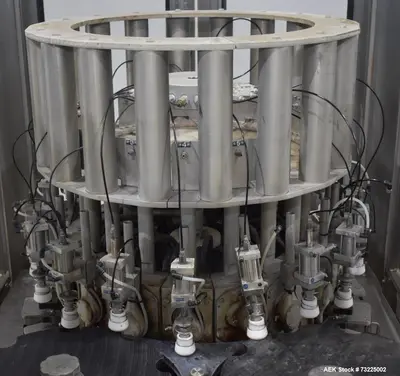

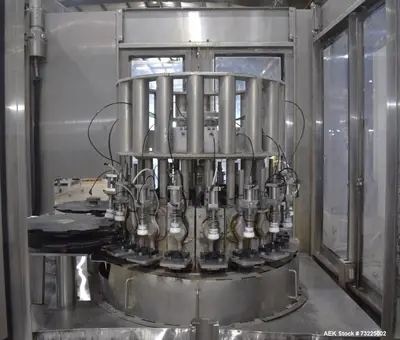

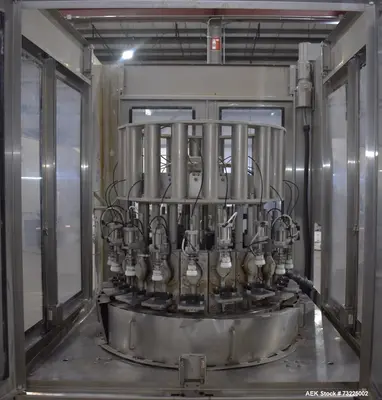

The R.A Jones (Aerofill) Model 1695 Ultraflex is a high-speed rotary gasser shaker designed for aerosol filling applications. With 18 heads and a total throughput capacity of up to 275 cans per minute (depending on application), this machine provides efficient and precise gas filling. The unit is equipped with an Allen Bradley CompactLogix L24ER PLC and A/B PanelView Plus 700 HMI, ensuring smooth operation and integration. Capable of handling a variety of container sizes ranging from 1-3/8" to 3" diameter (35mm - 76.2mm) and 5" to 10" height, including spray tip stems.
Specifications:
Machine Type: Rotary Gasser Shaker
Heads: 18
Speed: Up to 275 cans per minute (depending on application)
Container Size Range:
Diameter: 1-3/8" - 3" (35mm - 76.2mm)
Height: 5" - 10" (including spray tip stem)
Controls:

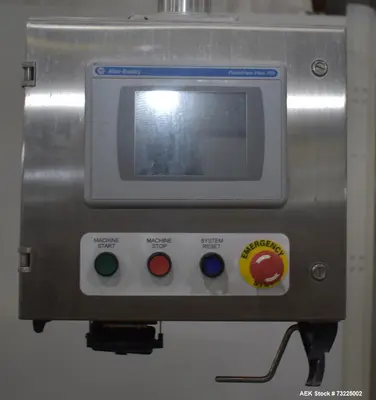

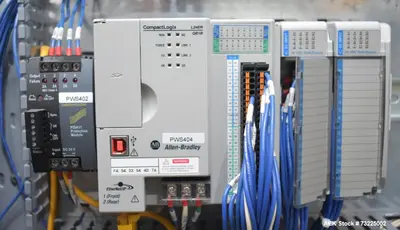

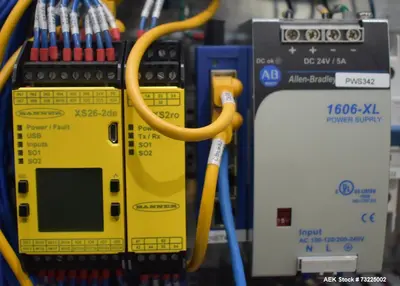

Allen Bradley CompactLogix L24ER PLC
A/B PanelView Plus 700 HMI
Applications:
Aerosol can filling and gassing
Chemical and household product packaging
Personal care product filling (deodorants, hairsprays, etc.)
Pharmaceutical aerosol filling
Automotive and industrial spray product manufacturing
Common Product Uses:
Personal Care & Cosmetics: Hair sprays, deodorants, shaving foams
Household Products: Air fresheners, disinfectant sprays
Automotive & Industrial: Lubricants, penetrating oils, spray paints
Pharmaceuticals: Medical aerosols, disinfectant sprays
Food & Beverage: Whipped cream dispensers, edible sprays
