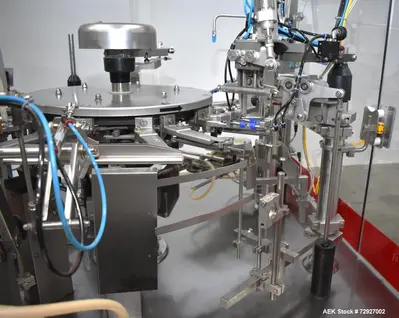

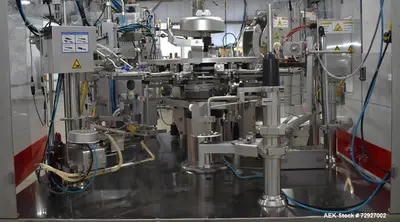

Used PSG-Lee Model RP-8TZ-30 Rotary Fill &Seal Premade Pouch Packager with Auger Filler. Machine is capable of speeds from 30 - 50 pouches per minute, subject to pouch and product variables. Pouch size range: (Width) 6.3" - 12" or 160mm - 304mm; (Length) up to 13.8" or 350mm. Weight Range: up to 20 lb or 10 kg. Includes Used- Leepack Servo Drive Powder Auger Feeder, Model AW-590IV. Mitsubishi model MR-JZS-200A servo drive. Mounted on stainless steel frame. 3/60/480 Volt. Designed for pouches with gusset, stand-up bottom, and zipper seal. Last used in nutritional packaging operation. Has an 8-station turret for: #1 pouch pick-up; #2 Hot Stamp coding; #3 zipper open; #4 pouch bottom open with pouch present detection; #5 open pouch transfer to fill station with product settler; #7 heat seal; #8 seal, quench, and discharge. Allen Bradley Compactlogic PLC & Proface HMI. Auger filler pictured with machine would be an additional $19,500.
Used Equipment Facts About This Machine
Manufacturers Info:
Manufacturer: PSG Lee (Leepack)
Model: RP-8TZ-30
Condition: Used
Integrated Filler: Leepack Servo Drive Powder Auger Feeder (Model AW-590IV) – Available Separately
Mounting: Stainless Steel Frame
Electrical Specs: 3-Phase, 60 Hz, 480V
Facts About the PSG Lee RP-8TZ-30 Pouch Packager:
Rotary Fill & Seal Packaging Machine for premade pouches.
Speeds from 30 - 50 pouches per minute, depending on pouch size and product type.
Pouch Size Range:
Width: 6.3" - 12" (160mm - 304mm)
Length: Up to 13.8" (350mm)
Weight Range: Up to 20 lbs (10 kg).
Designed for:
Gusseted Pouches
Stand-Up Bottom Pouches
Zipper Seal Pouches
Last used in a nutritional packaging operation, ensuring compatibility with powders, granules, and nutritional supplements.
8-Station Turret Design for Automated Operation:
Pouch Pick-Up
Hot Stamp Coding
Zipper Opening
Pouch Bottom Opening with Pouch Presence Detection
Open Pouch Transfer to Fill Station with Product Settler
(Unused or bypassed station)
Heat Seal
Seal, Quench, and Discharge
Integrated Mitsubishi Model MR-JZS-200A Servo Drive for precise motion control.
Control System:
Allen Bradley CompactLogix PLC for reliable automation.
Proface HMI for intuitive operation and settings adjustment.
Auger filler available separately for $19,500.
Mounted on a durable stainless steel frame for hygienic and food-safe operation.
Description:
This used PSG Lee RP-8TZ-30 Rotary Fill & Seal Premade Pouch Packager is a high-speed, automated packaging system designed for powders, granular products, and dry food applications. It accommodates stand-up, gusseted, and zipper-seal pouches, making it an ideal choice for food, pharmaceutical, and supplement packaging operations.
With speeds ranging from 30 - 50 pouches per minute, this machine provides efficient, reliable, and consistent pouch filling and sealing. The Leepack Servo Drive Powder Auger Feeder (Model AW-590IV) offers precise powder dosing, while the Mitsubishi MR-JZS-200A Servo Drive ensures accurate, repeatable motion control.
This unit is controlled via an Allen Bradley CompactLogix PLC and Proface HMI, allowing for intuitive operation, monitoring, and troubleshooting. The stainless steel construction ensures hygienic compliance, making it suitable for food, supplement, and pharmaceutical packaging environments.
The integrated auger filler is available separately for $19,500, allowing for customization of the system based on specific application needs.
Specifications:
Speed: 30 - 50 pouches per minute
Pouch Size Range:
Width: 6.3" - 12" (160mm - 304mm)
Length: Up to 13.8" (350mm)
Weight Capacity: Up to 20 lbs (10 kg)
Filling System: Leepack Servo Drive Powder Auger Feeder (Model AW-590IV) (Sold Separately)
Drive System: Mitsubishi Model MR-JZS-200A Servo Drive
Control System:
Allen Bradley CompactLogix PLC
Proface HMI
Sealing System: Heat Seal with Zipper Functionality
Mounting: Stainless Steel Frame
Power Requirements: 3-Phase, 60 Hz, 480V
Last Used For: Nutritional Product Packaging
Applications:
Nutritional & Protein Powder Packaging
Food & Beverage Product Filling
Spices, Seasonings, and Baking Mixes
Pharmaceutical & Nutraceutical Packaging
Coffee, Tea, and Specialty Drink Mixes
Granular & Dry Food Packaging
What Products Would This Be Used For?
Protein Powders & Nutritional Supplements
Pre-Measured Coffee & Tea Blends
Dried Food Ingredients & Mixes
Pet Food & Treats
Granulated Sugar, Salt, & Seasonings
