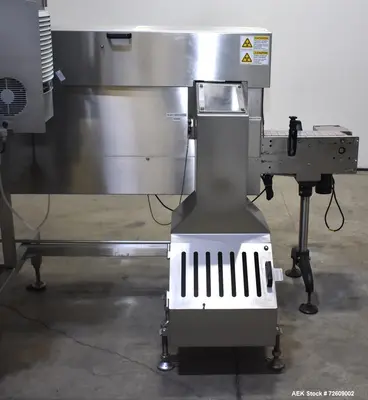

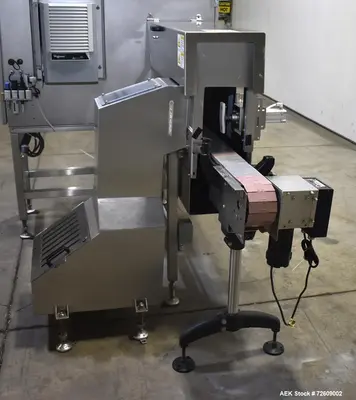

Used Safeline (Mettler Toledo) Model Sidechek + 400 X-Ray Metal Detector. Approximate aperture 8" wide x 11-3/4" tall. Conveyor 4-1/2" wide x 152" long. Connectivity/DataUSB or Ethernet RJ45 / Ethernet IP or OPC data, Display: Full color TFT 15-inch touch-screen. Cabinet/Conveyor: 304 Stainless Steel, Cooling Method: Heat exchanger or air conditioner, Ambient Humidity30-85%, Ambient Temperature: 32 to 104F. Scan Height: 8 inches, Belt Speed: VFD controlled maximum 600 fpm. Environmental Protection: NEMA 4 / IP65 standard; NEMA PW12 / IP69K optional. Cleaning: Low pressure standard, X-ray Generator: 70KV 1.5mA, 84KV 1.2mA, 50KV 2.0mA, Detector: 0.4mm, 0.8mm, 1.5mm pitch, X-ray Emissions: 5 ?Sv per hour, X-ray Protection: Line of sight, curtains, shielding, Certifications: CE standard; Controls Allen Bradley. 1/50/60/220 Volt, 10 amps.
Used Equipment Facts About This Machine
Manufacturers Info:
Manufacturer: Mettler Toledo (Safeline)
Model: SideChek+ 400
Condition: Used
Control System: Allen Bradley Controls
X-Ray Generator:
70KV 1.5mA
84KV 1.2mA
50KV 2.0mA
X-Ray Detector:
0.4mm, 0.8mm, 1.5mm pitch
Electrical Specs: 1-Phase, 50/60 Hz, 220V, 10A
Facts About the Safeline SideChek+ 400 X-Ray Metal Detector:
Industrial-grade x-ray inspection system for high-speed contaminant detection.
Aperture Dimensions: 8" wide x 11-3/4" tall.
Conveyor System:
4-1/2" wide x 152" long
Belt speed: Variable frequency drive (VFD) controlled, up to 600 feet per minute (fpm)
Full-Color 15-Inch TFT Touchscreen Display for intuitive operation.
Connectivity & Data Transfer:
USB or Ethernet RJ45
Ethernet IP or OPC data connectivity
Cabinet & Conveyor Material: 304 Stainless Steel for sanitary and corrosion-resistant operation.
Cooling Method: Heat exchanger or air conditioner for stable performance in varying environments.
Environmental Protection Ratings:
NEMA 4 / IP65 (Standard Protection)
NEMA PW12 / IP69K (Optional for high-pressure washdown applications)
Cleaning: Low-pressure standard washdown.
X-Ray Emissions: 5 µSv per hour (safe for industrial use).
X-Ray Protection: Line-of-sight curtains, shielding, and safety mechanisms.
Certifications: CE Standard Compliance.
Description:
This used Safeline (Mettler Toledo) SideChek+ 400 X-Ray Metal Detector is a high-performance industrial inspection system, designed for detecting foreign contaminants in packaged and processed goods. With an 8" wide x 11-3/4" tall aperture, this unit can inspect products at speeds of up to 600 feet per minute (fpm) using a VFD-controlled conveyor.
The advanced x-ray detection system supports multiple generator and detector settings, allowing for customized contaminant detection based on material composition. The 304 stainless steel construction ensures durability and hygiene compliance, while the heat exchanger or air conditioner cooling option allows for stable operation in demanding environments.
This unit features Ethernet IP and OPC data connectivity, along with USB compatibility for easy data transfer. The full-color 15-inch touchscreen display provides user-friendly operation, and the NEMA 4/IP65 standard protection (with optional IP69K for washdown applications) ensures reliable performance in various industrial settings.
Specifications:
Aperture Dimensions: 8" W x 11-3/4" H
Conveyor System:
4-1/2" W x 152" L
Belt Speed: VFD controlled, up to 600 fpm
Control System: Allen Bradley Controls
Connectivity & Data Transfer:
USB & Ethernet RJ45
Ethernet IP or OPC data compatible
Material & Construction:
304 Stainless Steel
Low-pressure washdown standard, optional high-pressure washdown (IP69K)
X-Ray System:
X-Ray Generator: 70KV 1.5mA, 84KV 1.2mA, 50KV 2.0mA
X-Ray Detector: 0.4mm, 0.8mm, 1.5mm pitch
X-Ray Emissions: 5 µSv per hour (safe industrial use level)
X-Ray Protection: Line-of-sight curtains, shielding
Cooling System: Heat exchanger or air conditioning option
Environmental Protection:
Standard: NEMA 4 / IP65
Optional: NEMA PW12 / IP69K
Certifications: CE Standard Compliance
Electrical Requirements: 1-Phase, 50/60 Hz, 220V, 10A
Applications:
Food Safety & Foreign Body Contaminant Detection
Metal & Non-Metal Contaminant Inspection in Packaged Goods
Pharmaceutical & Nutraceutical Product Quality Control
Inline Quality Control for High-Speed Production Lines
Glass, Stone, Plastic, and Metal Detection in Processed Products
What Products Would This Be Used For?
Packaged & Processed Food Products
Meat, Poultry, & Dairy Inspection
Pharmaceutical & Nutraceutical Packaging
Industrial Material Inspection for Foreign Objects
Beverage & Liquid-Filled Container Screening
