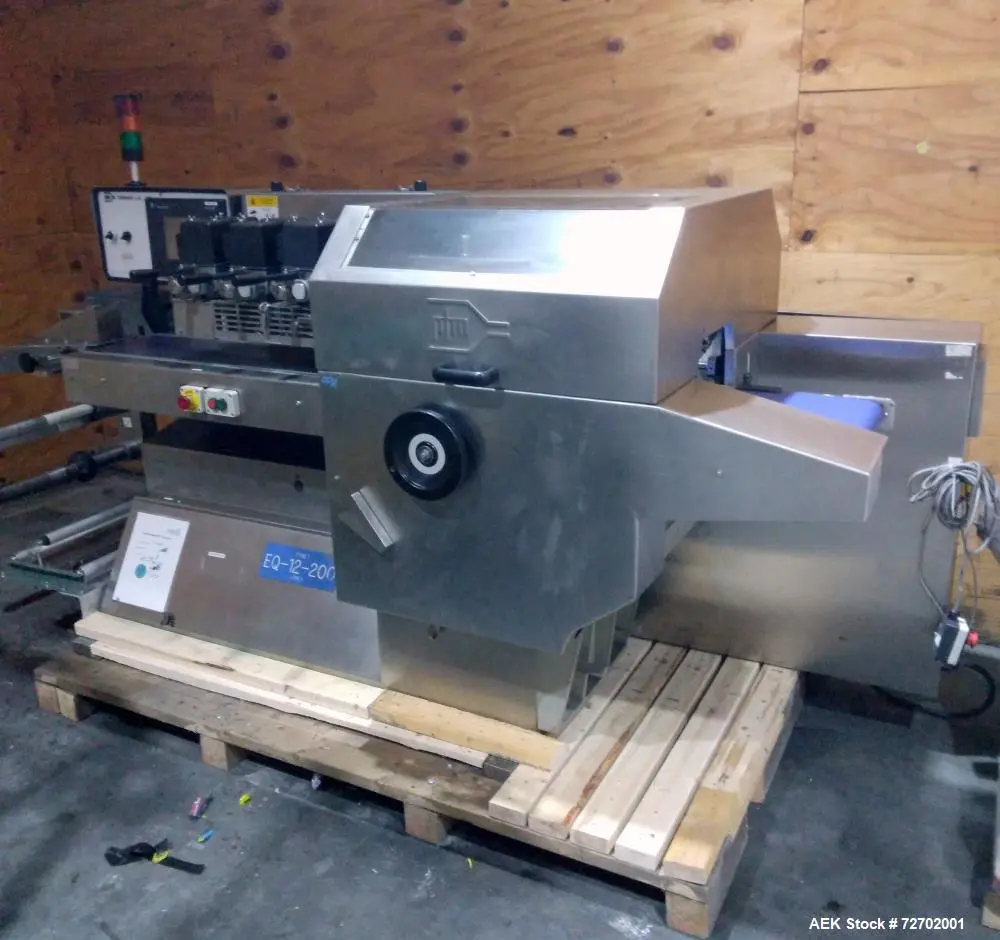

Used PFM Model Tornado Inverted Seal Horizontal Wrapper. Mechanical speed rated up to 100 ppm (40 meters per minute longitudinal seal speed), however product length and film will determine final maximum output. Package size range of: length 3.9" - 19.6" (100mm-500mm); width .39" - 11" (10mm-280mm); height 0 - 3.5" (0-90mm). The three maximum sizes cannot be run simultaneously. 1 up long dwell seal jaw designed to run heat or cold seal wrapping material, polypropylene, perforated or laminates with hole punch jaws. Equipped with electric eye registration, Allen Bradley SLC 5/03 CPU with Panelview 900 operator, 16' long x 6" wide cleated belt product infeed conveyor with approximately 1/8" high cleats on 14" centers, Greydon Model 01SBM61 inline printer. Stainless steel construction. Electric 3/60/208/220V. Air 90 psi. Last ran medical device products. CE certified.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturers Info:
Manufacturer: PFM
Model: Tornado Inverted Seal Horizontal Wrapper
Condition: Used
Control System:
Allen Bradley SLC 5/03 CPU
Allen Bradley PanelView 900 Operator Interface
Motion & Printing System:
Electric Eye Registration for Precise Film Alignment
Greydon Model 01SBM61 Inline Printer
Electrical Specs: 3-Phase, 60 Hz, 208/220V
Air Requirements: 90 PSI
CE Certified
Facts About the PFM Tornado Inverted Seal Flow Wrapper:
High-speed horizontal wrapper, rated for up to 100 packages per minute (PPM).
Mechanical longitudinal seal speed: 40 meters per minute.
Package size range:
Length: 3.9" - 19.6" (100mm - 500mm)
Width: 0.39" - 11" (10mm - 280mm)
Height: 0" - 3.5" (0mm - 90mm)
(Note: The three maximum sizes cannot be run simultaneously)
1-up long dwell seal jaw, designed to handle heat or cold seal materials.
Compatible with various films, including:
Polypropylene (PP)
Perforated Film
Laminates
Hole Punch Jaws for Specialty Packaging

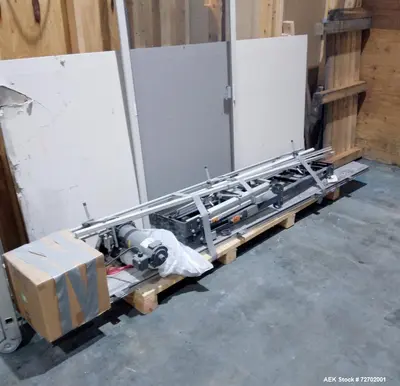

Equipped with a 16' long x 6" wide cleated belt infeed conveyor:
Cleats approximately 1/8" high on 14" centers for consistent product movement.
Last used for medical device packaging, making it ideal for sterile and pharmaceutical applications.
CE Certified, ensuring compliance with European safety and performance standards.
Description:
This used PFM Tornado Inverted Seal Horizontal Wrapper is a high-speed, stainless steel packaging system, designed for food, medical, pharmaceutical, and consumer goods applications. It offers flexibility in packaging materials, handling heat or cold seal films, polypropylene, laminates, and perforated wraps.
With a rated speed of 100 PPM and a mechanical longitudinal seal speed of 40 meters per minute, this system is built for efficient, continuous operation. It features a 1-up long dwell seal jaw for secure, high-integrity seals, making it suitable for both flexible and rigid packaging needs.
The electric eye registration system ensures precise film alignment, while the Greydon Model 01SBM61 inline printer allows for real-time batch coding and product marking. The 16' long cleated belt infeed conveyor provides reliable product transport, with cleats positioned for stability and accuracy.
Last used for medical device packaging, this machine is CE certified, making it suitable for strict regulatory environments, including pharmaceutical and sterile packaging applications.
Specifications:
Speed: Up to 100 packages per minute (PPM)
Mechanical Longitudinal Seal Speed: 40 meters per minute
Package Size Range:
Length: 3.9" - 19.6" (100mm - 500mm)
Width: 0.39" - 11" (10mm - 280mm)
Height: 0" - 3.5" (0mm - 90mm)
(Note: Maximum dimensions cannot be run simultaneously)
Sealing System:
1-up Long Dwell Seal Jaw
Supports Heat or Cold Seal Materials
Film Compatibility:
Polypropylene (PP)
Perforated Film
Laminates
Hole Punch Jaws for Specialty Packaging
Product Handling:
16' Long x 6" Wide Cleated Belt Infeed Conveyor
Cleats: Approx. 1/8" high on 14" centers
Control System:
Allen Bradley SLC 5/03 CPU
Allen Bradley PanelView 900 Operator Interface
Printing System: Greydon Model 01SBM61 Inline Printer
Film Registration: Electric Eye Registration for Precise Alignment
Construction: Stainless Steel
Compliance: CE Certified
Electrical Requirements: 3-Phase, 60 Hz, 208/220V
Air Requirements: 90 PSI
Applications:
Medical Device & Pharmaceutical Packaging
Sterile & Cleanroom Packaging
Food & Snack Packaging
Bakery & Confectionery Wrapping
Personal Care & Hygiene Product Packaging
Flexible & Specialty Packaging Solutions
What Products Would This Be Used For?
Medical Device Packaging (Sterile Wraps, Instruments, Bandages)
Protein Bars, Energy Bars, & Granola Bars
Bakery & Snack Items (Cookies, Muffins, Bread Rolls)
Confectionery & Chocolate Packaging
Personal Care Items (Wet Wipes, Beauty Products, Cosmetics)
Small Consumer Goods & Electronics
