Used Jetline WHL-4C6X6K weld head locator with 3,000 lb Pandjiris positioner. Features 500 lb boom capacity, 72" horizontal and vertical travel. 3,000 lb tilt capacity with adjustable speed. Ideal for precise welding tasks.
| Dimensions | 80" x 80" x 121" | 80" x 80" x 121" |
| Weight | 1750 lbs | 1750 lbs |
Jetline WHL-4C6X6K Weld Head Locator and 3,000 Lb. Pandjiris Welding Positioner #6955 #2

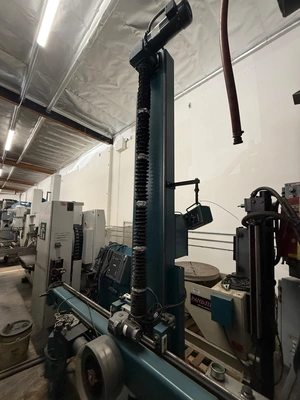

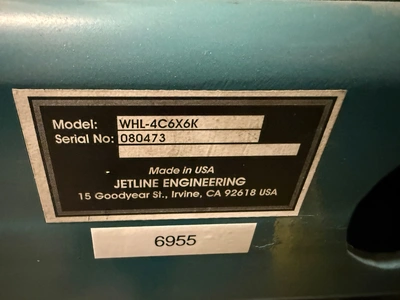

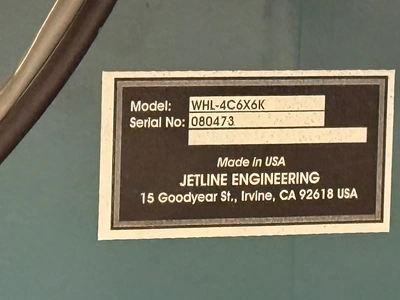

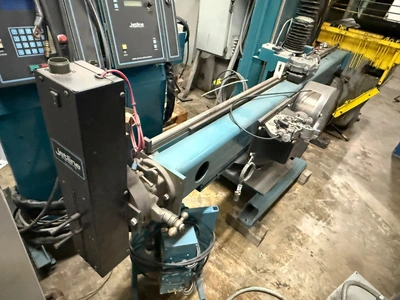

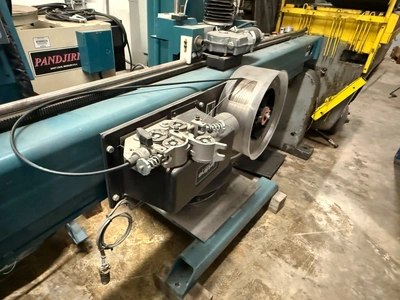

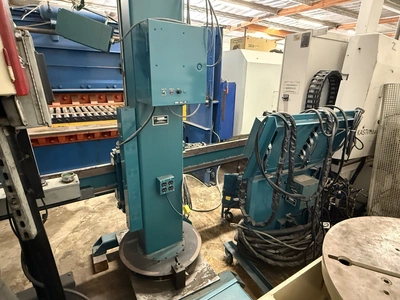

Jetline Weld Head Locator
SPECIFICATIONS:
Capacity on Boom End: 500 Lb.
Boom Horizontal Travel: 72"
Boom Vertical Travel: 72"
Overall Height: 121"
Overall Width: 125"

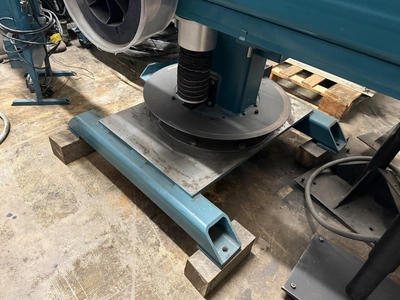

Base: 80" x 80"
Vertical Column Speed: 50 IPM
Boom Travel Speed: 2 - 100 IPM

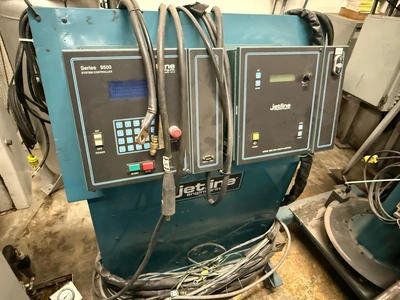

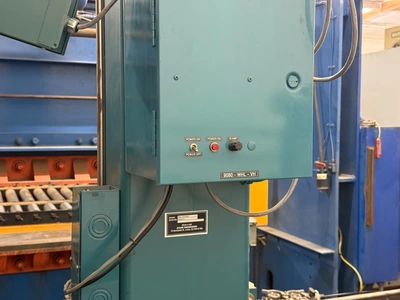

Control: Jetline Series 9500 Control (Serial 15312X09-8)

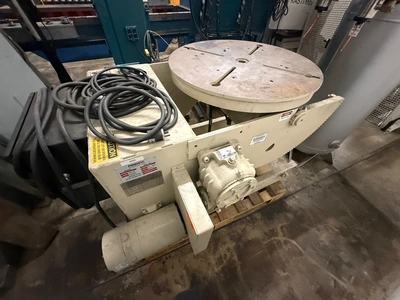

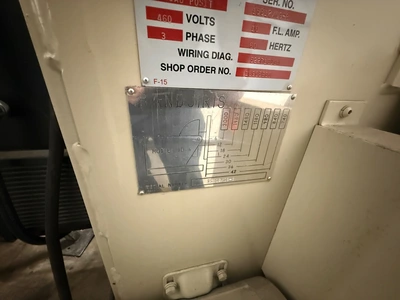

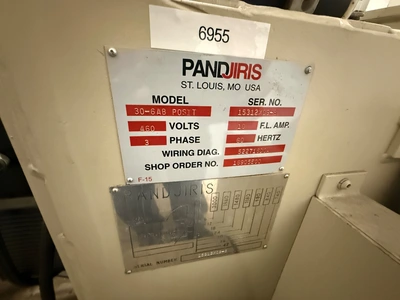

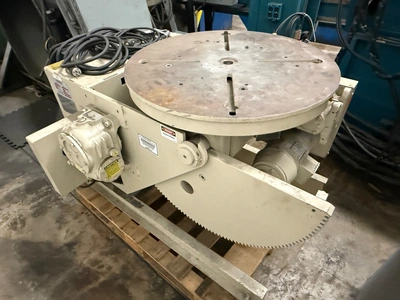

Pandjiris 30-6AB Weld Positioner
SPECIFICATIONS:
3,000 lb. capacity at 6″ center of gravity
135° constant speed power tilt
Tilt Load torque: 35,250 in-lb
Variable speed rotation from .046 to 1.40 RPM
Rotation Load Torque: 18,000 in-lb
32-5/8″ fixed table height
30″ square table with slots and 1-1/2″ thru hole
Shown w/ optional round table
25′ pendant control
115 volt
Shipping weight 1,750 lbs.
