Used Pester Model TLC-2 Automatic Top Load Robotic Case Packer. Pharma spec. Capable of speeds up to 20 cases per minute. Has a case size range: 200mm - 450mm (length) x 140mm - 350mm (width) x 100mm - 350mm (height). Product size range: 20mm - 440mm (length) x 20mm - 200mm (width) x 60mm - 250mm (height). Has tier sheet dispenser, Tape bottom seal, Domino print and apply labeler along with RFID detection and reject. Includes Kuka Model robotic placer. Machine # 12141A. O Supply voltage at 3x480V+PE 50/60 Hz. Power consumption at 13,6 kW / 19,7A. Machine can be set to size for additional cost subject to receipt of samples. Has a KUKA Robotic Arm (with seven servo motors on it). 2 WAGO PLCs on it. HMI: Micro Innovation AG. (Type-XVS-430-10MPI-1-1AC)
Used Equipment Facts About This Machine
Manufacturers Info:
Manufacturer: Pester
Model: TLC-2 Automatic Top Load Robotic Case Packer
Condition: Used
Max Speed: Up to 20 Cases Per Minute (CPM)
Industry Specification: Pharmaceutical Packaging
Case & Product Size Range:
Case Size Compatibility:
Length: 200mm - 450mm
Width: 140mm - 350mm
Height: 100mm - 350mm
Product Size Compatibility:
Length: 20mm - 440mm
Width: 20mm - 200mm
Height: 60mm - 250mm
System Features & Components:
Robotic Case Packing System
Fully Automatic Top Load Case Packer – Precision packing for pharma-grade applications

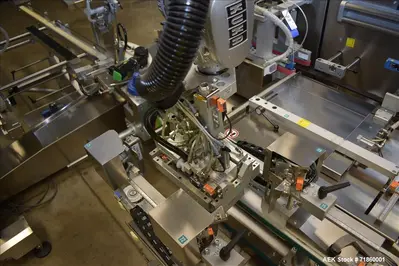

KUKA Model Robotic Placer – Equipped with seven servo motors for high-speed, accurate handling
Case Sealing & Labeling

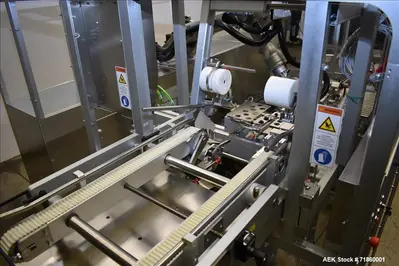

Tape Bottom Sealing System – Ensures secure case closure

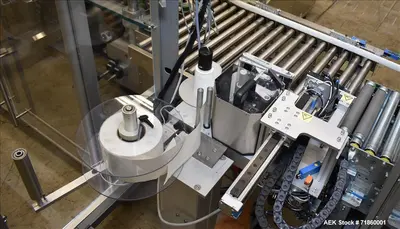

Domino Print & Apply Labeler – Integrated for high-quality case labeling
RFID Detection & Reject System – Enhances product tracking and quality control
Product Handling & Collation
Tier Sheet Dispenser – Provides structured layering for packed products
Servo-Driven Precision – Smooth, automated movement for reliable packing

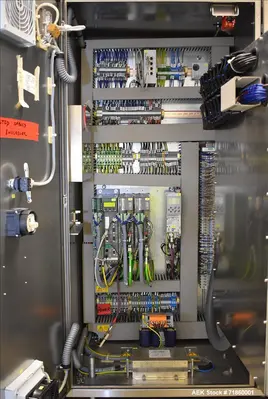

Control System & Power Requirements:
Control System:
Two (2) WAGO PLCs
Micro Innovation AG HMI (Type XVS-430-10MPI-1-1AC)
Power Requirements:
Supply Voltage: 3x480V+PE 50/60 Hz
Power Consumption: 13.6 kW / 19.7A
Additional Features:
Machine Can Be Set to Size for Additional Cost (Subject to Sample Receipt)
Machine #12141A
Facts About the Pester TLC-2 Automatic Top Load Robotic Case Packer:
Ideal for high-precision pharmaceutical case packing applications.
Equipped with a KUKA robotic arm featuring seven servo motors for precision handling.
Includes integrated case sealing, RFID tracking, and automated label application.
Servo-driven system ensures smooth, accurate operation.
Designed for pharma-spec packaging with full automation.
Description:
The Used Pester TLC-2 Automatic Top Load Robotic Case Packer is an advanced pharmaceutical-grade packing solution designed for high-speed, precise top-load case packing at speeds of up to 20 cases per minute.
This system features a KUKA robotic placer with seven servo motors, providing high-speed product handling and placement. The integrated tape bottom sealer, Domino print & apply labeler, and RFID detection/reject system ensure secure, traceable packaging.
With a case size range of 200mm - 450mm (L) x 140mm - 350mm (W) x 100mm - 350mm (H) and a product size range of 20mm - 440mm (L) x 20mm - 200mm (W) x 60mm - 250mm (H), this system is ideal for pharmaceutical, nutraceutical, and medical packaging applications.
Equipped with two WAGO PLCs and a Micro Innovation AG HMI, this machine offers user-friendly controls and seamless automation. It operates on 3x480V+PE 50/60 Hz power, consuming 13.6 kW / 19.7A.
The system can be reconfigured for different product sizes at an additional cost (subject to sample receipt).
Specifications:
Machine Type: Automatic Top Load Robotic Case Packer
Manufacturer: Pester
Model: TLC-2
Max Speed: Up to 20 CPM
Case Size Compatibility:
Length: 200mm - 450mm
Width: 140mm - 350mm
Height: 100mm - 350mm
Product Size Compatibility:
Length: 20mm - 440mm
Width: 20mm - 200mm
Height: 60mm - 250mm
Robotic Arm: KUKA Model with Seven Servo Motors
Sealing System: Tape Bottom Sealing
Labeling System: Domino Print & Apply Labeler
Tracking & Quality Control: RFID Detection & Reject System
Tier Sheet Dispenser: Yes
Control System:
Two WAGO PLCs
Micro Innovation AG HMI (Type XVS-430-10MPI-1-1AC)
Power Requirements:
3x480V+PE 50/60 Hz
Power Consumption: 13.6 kW / 19.7A
Machine Can Be Set to Size for Additional Cost
Applications:
Pharmaceutical & Healthcare Packaging (Medicine Boxes, Medical Supplies, Supplement Cartons)
Consumer Goods & Personal Care (Beauty Products, Skincare, Packaged Lotions)
Food & Beverage (Carton Packed Goods, Retail Packaging)
Electronics & Industrial Components (Securely Packaged Electronic Components & Tools)
What Products Would This Be Used For?
Pharmaceutical cartons & medical supplies
Nutraceutical packaging (supplements, vitamins, and OTC medications)
Personal care products (boxed skincare, beauty products, lotions, hair care items)
Retail and industrial packaging (electronics, consumer goods, packaged food items)
