USED PAPER CONVERTING MACHINE CF01-00013

Overview
Stock #:
72419001
Status:
For Sale
Description

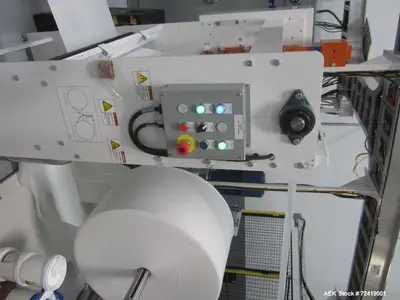

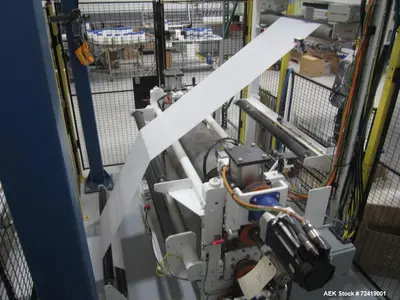

Used Paper Converting Machine Company Barry-Wehmiller Wet Wipes Complete System. Exfoliating facial cleansing wet wipe system. Marlin Flex cross folder, Model CF01-00013, unwinder, heated embossing unit, wetting applicator, Allen Bradley panelview 1500p, Sterling water chiller, SS single wall tank, 36" diameter x 36" straight side, Cleveland agitator, 20" diameter manway, CIP spray ball, 2 hp SS centrifugal pump with AB powerflex40, Multi-conveyor 90 degree conveyor, white plastic interlock belt, 8" wide x 36" tall, overall 48" long x 36" wide, SS frame, washdown motor, Multi conveyor compression conveyor, white vinyl belt, 60" long x 8" wide x 36" tall, SS frame, washdown motor and drive; Allen Bradley Controls; Cut speed: 2000 wipes per minute; Stacker speed: 100 stacks per minute (25 stacks per minute per lane); Stack count range: 4-100; Stack height range 10 mm (0.39") to 90 mm (3.54"); Cutoff length range: 170 mm (6.69") to 210 mm (8.26") maximum Folded width range: 50 mm (1.97") to 115 mm (4.5"), (change parts required for 65 mm to 90 mm folded width); 480V, 60 Hz, 3 phase; Maximum Undwind Roll width: 860 mm (34"); Maximum unwind roll diameter: 1500 mm (60"); Parent roll core diameter: 171 mm (6.75"). Includes Bosch Linium model 611 Horizontal wrapper and integrated conveyor. Film registration. Last running embossed wet wipes with 75% alcohol content.

Specifications

Used Equipment Facts About This Machine
Manufacturer Information

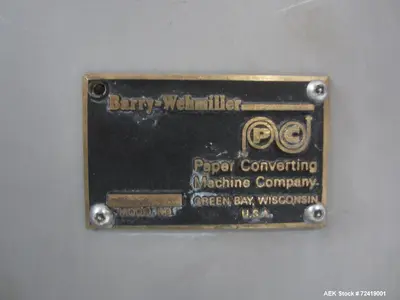

Brand: Paper Converting Machine Company (PCMC) / Barry-Wehmiller

Condition: Used

Previous Use: Exfoliating Facial Cleansing Wet Wipe Production

Processing Speeds:

Cut Speed: Up to 2,000 wipes per minute

Stacker Speed: 100 stacks per minute (25 stacks per minute per lane)

Description

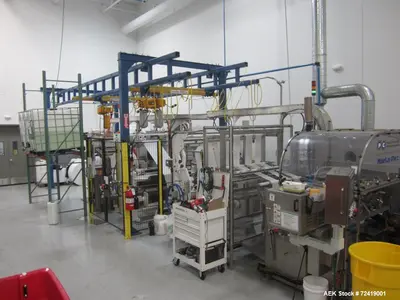

This PCMC Barry-Wehmiller Wet Wipes Production System is a fully automated wet wipe manufacturing line, designed for high-speed, precision cutting, folding, wetting, and packaging of exfoliating facial cleansing wipes.

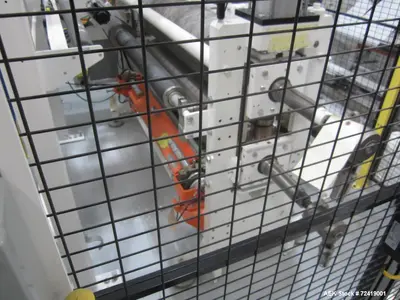

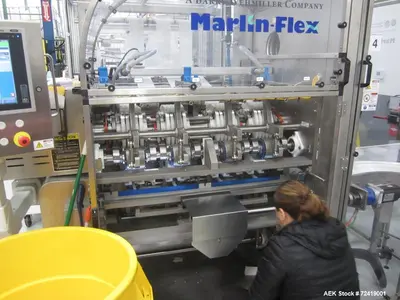

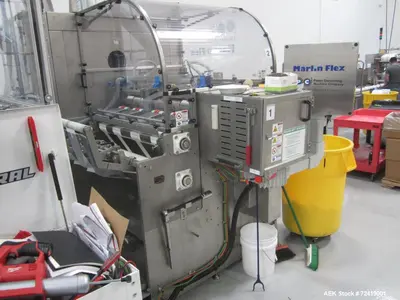

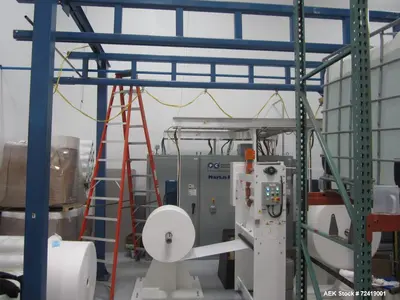

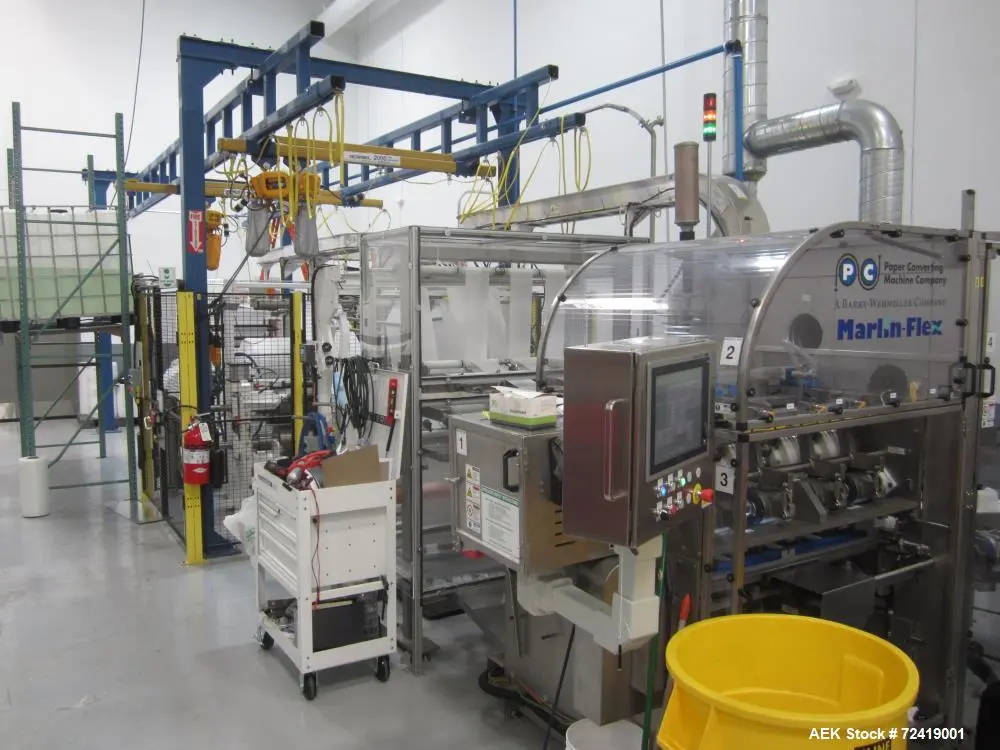

The system includes the Marlin Flex Cross Folder (Model CF01-00013) with an unwinder, heated embossing unit, and wetting applicator, ensuring precise folding and uniform liquid application. The Allen Bradley PanelView 1500p control system provides intuitive operation and process monitoring.
A Sterling Water Chiller and 36” stainless steel single-wall mixing tank with a Cleveland agitator and CIP spray ball allow for consistent solution mixing and hygiene maintenance. The system also includes a 2 HP stainless steel centrifugal pump (AB PowerFlex40-controlled) for liquid distribution.
The integrated multi-conveyor system consists of:

90-degree plastic interlock belt conveyor (washdown-rated motor, stainless steel frame)

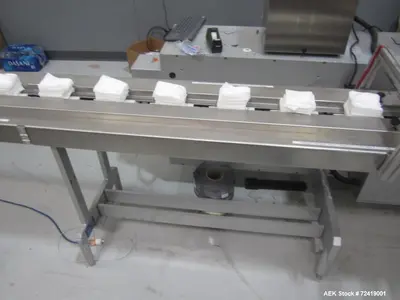

Compression conveyor with a white vinyl belt (60” long x 8” wide x 36” tall)

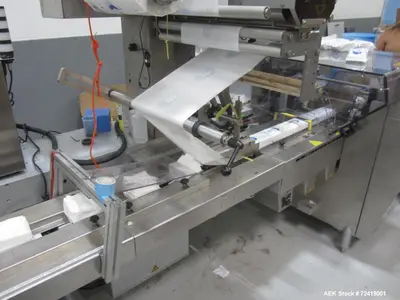

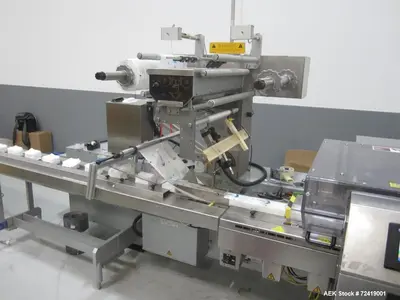

For final packaging, the system includes a Bosch Linium Model 611 Horizontal Wrapper with film registration and an integrated conveyor, optimizing the wrapping and sealing process.
Specifications

Processing Speed:

Cut Speed: Up to 2,000 wipes per minute

Stacker Speed: Up to 100 stacks per minute (25 stacks per minute per lane)

Stack Count Range: 4 - 100 wipes

Stack Height Range: 10 mm (0.39") - 90 mm (3.54")

Cutoff Length Range: 170 mm (6.69") - 210 mm (8.26")

Folded Width Range: 50 mm (1.97") - 115 mm (4.5") (Change parts required for 65 mm to 90 mm folded width)

Unwind Roll Specs:

Max Roll Width: 860 mm (34")

Max Roll Diameter: 1,500 mm (60")

Core Diameter: 171 mm (6.75")

Electrical Requirements: 480V, 60 Hz, 3 Phase

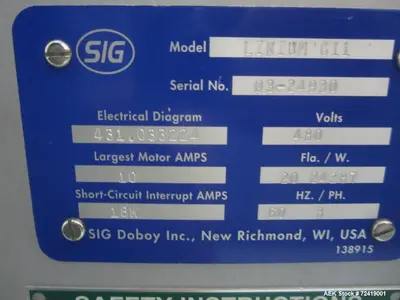

Packaging System: Bosch Linium Model 611 Horizontal Wrapper with Film Registration

Included Equipment

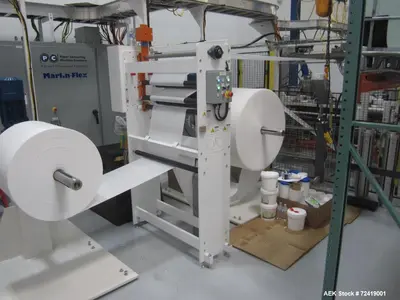

Marlin Flex Cross Folder (Model CF01-00013) – Unwinder, heated embossing unit, wetting applicator

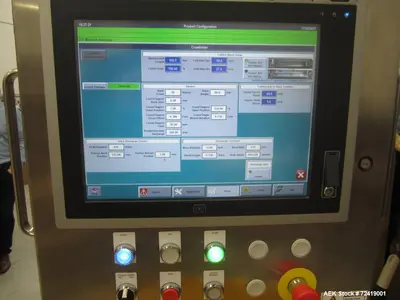

Allen Bradley PanelView 1500p Controls – Centralized system monitoring and operation

Sterling Water Chiller – Maintains solution temperature

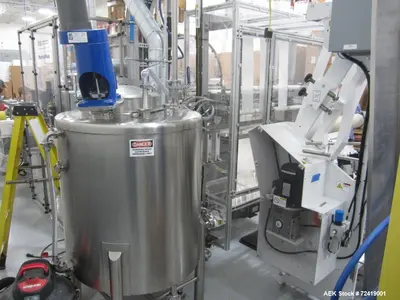

Stainless Steel Mixing Tank (36" Dia. x 36" Straight Side) – Equipped with:

Cleveland Agitator
20" Diameter Manway
CIP Spray Ball
2 HP Stainless Steel Centrifugal Pump (AB PowerFlex40 Controlled)

Multi-Conveyor System:

90-Degree Plastic Interlock Belt Conveyor (Washdown Motor, Stainless Steel Frame)
Compression Conveyor (60” Long x 8” Wide x 36” Tall)

Bosch Linium Model 611 Horizontal Wrapper with Film Registration & Integrated Conveyor

Applications

Personal Care & Cosmetics – Exfoliating facial wipes, makeup remover wipes

Sanitizing & Disinfecting Wipes – Alcohol-based wet wipes for hygiene

Household Cleaning Wipes – Multipurpose and disinfectant wipes

Industrial & Specialty Wipes – Degreasing and surface cleaning wipes

Medical & Healthcare Wipes – Alcohol, antibacterial, and gentle cleansing wipes

Compatible Products

Fully automated wet wipe production and packaging lines

Liquid mixing and dispensing systems for wet wipes
Industrial horizontal wrappers and film registration systems
Wet wipe converting equipment for high-speed production
