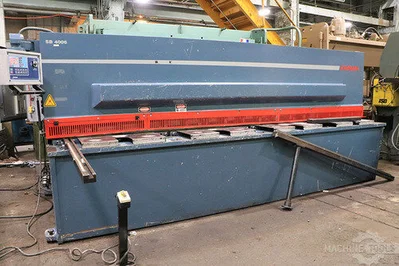

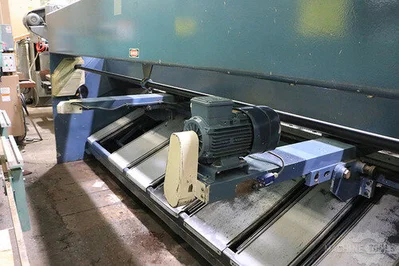

¼” X 13’ Hydraulic Shear with Durma ENC100M Digital Control, 39” Motorized Backgauge, Adjustable Blade Gap, Electronic Stroke Adjustment, Foot Pedal for Single Stroke, Cutting Line Illumination and Pneumatic Rear Material Supports.
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 13' | 4 m |
¼” X 13’ Hydraulic Shear with Durma ENC100M Digital Control, 39” Motorized Backgauge, Adjustable Blade Gap, Electronic Stroke Adjustment, Foot Pedal for Single Stroke, Cutting Line Illumination and Pneumatic Rear Material Supports.GENERAL SPECIFICATIONS Cutting Length: 160”Cutting Capacity (Mild Steel): ¼”Cutting Angle: 1.3°Stroke: 4.5”Strokes Per Minute: 12 - 23Number of Plate Hold Downs: 20Hold Down Pressure: 17 Work Table Height: 34”Motor: 20 HPVoltage: 220 / 440Dimensions: 205” X 90” X 84”Weight: 25,850 LbsINCLUDES: Durma ENC100M Digital Control, 39” Motorized Backgauge, Adjustable Blade Gap, Electronic Stroke Adjustment, Foot Pedal for Single Stroke, Cutting Line Illumination and Pneumatic Rear Material Supports.
