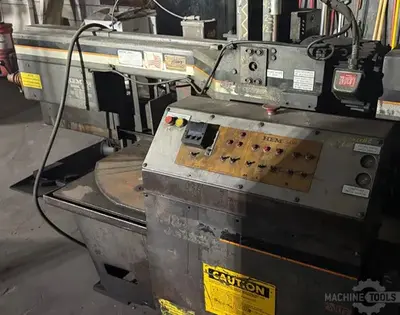

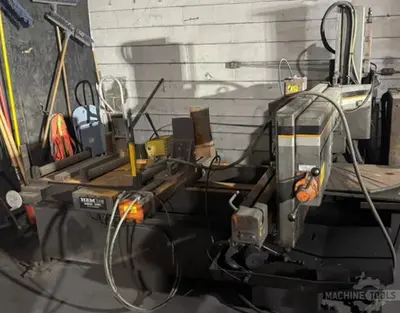

14” X 20” Automatic Horizontal Bandsaw with Mitering Capability, Multiple Feed and Coolant System.
| Rect-Cap (H) | 14" | 355.6 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 14" | 355.6 mm |
| Square-Cap | 20" | 508 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 180" | 4,572 mm |
14” X 20” Automatic Horizontal Bandsaw with Mitering Capability, Multiple Feed and Coolant System.GENERAL SPECIFICATIONS Rectangle @ 90°: 14” X 20”Rectangle @ 45°: 14” X 15” Rectangle @ 30°: 14” X 10”Blade Size: 15’ X 1-¼” X .042”Blade Speed: 60 - 300 SFMDrive Motor: 5 HPCoolant Pump: ¼ HPStock Indexing: 0 - 24”Carriage Shuttle Load Capacity: 8,000 LbsDimensions: 114” X 92” X 73”Weight: 4,500 LbsINCLUDES: Mitering Capability, Multiple Feed and Coolant System.
